The preview is based on your dimensions, frame color, and design.
- Soft, radiant edge lighting
- Luminous intensity: approx. 4,680 lm/LED meter
- Ideal for colorful or patterned images
Compact Solution for Brilliant Brand Presentations
The illuminated 100 mm fabric tension frame ensures even illumination of large-scale graphics thanks to LED edge lighting. Ideal for trade shows, retail, showrooms, or modern interiors. Interchangeable fabric banners, a variety of profile colors, and the tool-free piping system enable flexible and professional presentations.
Illuminated fabric stretching frame – 100 mm profile with edge lighting
With a depth of 100 mm and side LED edge lighting, the fabric display frame is a well-designed solution for impressive, large-format presentations. The sturdy aluminum construction combines modern lighting technology with flexible fabric covering—for brilliant, eye-catching displays that are also easy to transport and set up.
Optimal Lighting Effect
The LED modules mounted on the sides ensure even illumination. Especially with colorful, textured, or non-uniform designs, subtle variations in brightness create a vibrant visual effect. A backlit fabric display frame thus ensures a high-quality and professional presentation of your advertising graphics.
-
Frame depth: 100 mm – ideal for edge lighting
-
Light color: Neutral white, 6,500 Kelvin
-
Light intensity: approx. 4,680 lumens per meter (long side)
-
LED technology: pre-assembled, ballast integrated into the frame
-
Power connection: 2-meter cable with EU plug
Design & Individuality
The profile is available in a standard silver anodized or matte black finish. White versions and custom RAL colors are also available as options. This allows each illuminated fabric tension frame to be perfectly tailored to your corporate design and interior decor.

Technical Advantages
- Space-saving installation of the LED modules in the side profiles
- Uniform illumination with a compact design
- Modular frame design for easy transport
- Can be used up to a height of approximately 3 m and a length of 20 m
- Integrated stabilizing frames approximately every 220 cm for dimensionally stable large formats, a sturdy frame construction, and fabric banners that remain permanently taut
- Tool-free design change using a piping system
Why is the integrated stabilizing frame an important advantage for large, illuminated textile stretching frames?
In retail store design in particular, large-format illuminated fabric stretch frames must be sturdy, high-quality, and easy to install. That is why the illuminated fabric stretch frame with a 100-mm profile and edge lighting features additional stabilizing frames integrated approximately every 220 cm.
These frames increase the stability of the aluminum frame and help maintain a consistently taut light surface over time. At the same time, the sturdy construction reduces installation effort, as large formats require fewer mounting points than many standard solutions on the market. This saves time, fasteners, and effort during project installation—a clear advantage for retail spaces, brand displays, and rotating campaigns in store design.
Textile Printing & Materials
-
Photorealistic sublimation printing with water-based inks
-
Specialty fabric with a diffusion layer for even light diffusion
-
B1 (DIN 4102) & B-s1, d0 (EN 13501) – Approved for public indoor areas
-
Blockout fabric on the back prevents unwanted light from escaping
A fabric-stretching frame only achieves its full effect when paired with high-quality printing materials—for brilliant colors and even light distribution.
Installation & Delivery
The product is shipped unassembled, which reduces shipping costs. Pre-assembled LED modules and ballasts allow for quick installation. Wall mounts are included.
Possible Applications
-
Trade Shows & Promotions: Mobile, Eye-Catching Light Walls
-
Shops & Retail: Flexibly Interchangeable Promotional Designs
-
Showrooms & Interiors: High-Quality Brand Displays
-
Advertising Technology & Large-Format Printing: The Perfect Stage for Brilliant Prints
Your Benefits at a Glance
-
Cost-effective thanks to proven 100-mm edge irradiation
-
High visual impact with low energy consumption
-
Flexible and sustainable thanks to interchangeable designs
-
Easy to install and durable thanks to robust system technology
-
Customizable in terms of sizes and colors
Important!
The EU plug is located at the bottom right (number 5) by default! If you would like a different placement, please specify the number when ordering.

Conclusion:
The illuminated fabric tension frame, featuring a 100-mm profile with edge lighting, is the ideal choice for anyone looking to combine lighting effects, flexibility, and cost-effectiveness—perfect for large-scale brand displays and temporary space solutions.
Now Request a quote or configure it directly—tailored to your project.
Your Custom Inquiry to Primex
Would you like to order a custom size, or do you have a project?
As a manufacturer, we produce custom-made products for you!
We'd be happy to advise you on your projects and fulfill your specific requests.
Print Data & Data Validation:
Please create your designs directly in the desired final format. For instructions on how to correctly prepare your print files, please refer to our data sheet.
How to Prepare Your Print Files Correctly: Primex Print files.
Of course, we carefully review your print files.
If the resolution is insufficient for the desired print, we will contact you immediately to discuss the next steps together.
Assembly & Installation
Our products are either delivered pre-assembled or are designed to be assembled easily and efficiently. Depending on the system, they are delivered as a finished unit or as a well-designed modular system that, in many cases, can be assembled without tools or with minimal use of tools.
To ensure safe and smooth installation, we provide you with comprehensive functional descriptions, detailed installation instructions, and—for select systems—supplementary installation videos. This way, you can complete the setup step by step, even without specialized knowledge.
Why not check out our YouTube channel, which features lots of helpful installation videos?
Professional Installation Service (optional)
Upon request, we can also handle the entire installation for you. To ensure optimal planning for the on-site installation, please fill out our installation checklist and send it to us. Based on this information, we will prepare a customized, binding quote for the project.
We draw on a pool of experienced professional installers—particularly in the DACH region and in select other European countries. Many of our partners already have extensive experience with our systems, which ensures reliable, clean, and on-time installation.
Form:
Thank you very much for your trust. If you have any questions about installation, planning, or implementation, our team is always happy to assist you.
Cleaning and Care Recommendations for Frames
- Use only soft, non-abrasive cloths or rags.
- Important: The surfaces to be cleaned should be cleaned as gently as possible and then rinsed thoroughly with water, as residues of salts, acids, or alkalis can cause corrosion.
- Rubbing can cause the coating to become dull.
- Powder-coated parts should be stored in a dry place only.
- Standard pH-neutral household cleaning products are suitable.
- Never use products containing solvents, alcohols, thinners (e.g., nitro thinners), acetic acid, or other acids.
- Never use abrasive or scratchy cleaning products.
Care Instructions for Surface Textile Prints “Without LED”
- Machine washable at 30° (easy care), use liquid color-safe detergent, gentle spin cycle (max. 800 rpm)
- Ironing: On the reverse side at setting 1–2
- Tumble dryer safe (cold/lukewarm). Alternatively: Air dry on a large surface.
- Store on suitable cardboard rolls or loosely folded in a cardboard box (Caution! Be sure to avoid creases.)
- Store at a temperature between 10°C+ and 60°C+, maintaining a constant temperature
Care Instructions for Textile Prints with a Gray, White, or Black “Blockout” Separating Layer
- Not washable
- Do not iron
- Store on suitable cardboard rolls or loosely folded in a cardboard box (Caution! Be sure to avoid creases.)
- Store at a temperature between 10°C+ and 60°C+, maintaining a constant temperature
Care Instructions for Transparent Textile Prints “with LED”
- Not washable
- Do not iron
- Store on suitable cardboard rolls or loosely folded in a cardboard box (Caution! Be sure to avoid creases.)
- Store at a temperature between 10°C+ and 60°C+, maintaining a constant temperature
Care Instructions for Printed PVC Tarps
- Not washable
- Do not iron
- Store on suitable cardboard rolls or loosely folded in a cardboard box (Caution! Be sure to avoid creases.)
- Store at a temperature between 10°C+ and 60°C+, maintaining a constant temperature
Disclaimer: Care and Cleaning Recommendations
The care and cleaning recommendations we provide have been developed and reviewed in consultation with the respective manufacturers of the raw materials used. However, this information is provided solely as non-binding guidance based on our many years of experience.
Due to individual manufacturer tolerances, different cleaning agents, varying machines, and differing application conditions, Primex cannot assume any warranty or liability for the actual suitability, effectiveness, or results of the recommended care and cleaning measures.
Liability—regardless of the legal basis—is excluded. Responsibility for the selection, application, and implementation of appropriate care and cleaning procedures lies solely with the user.
We appreciate your understanding and thank you for your trust.
Tool-free design changes—we think ahead!
We’re committed to sustainability not only when it comes to the raw materials for our acoustic art, acoustic partitions, etc., but we also think long-term. That’s why we’ve chosen a framing system that allows you to change the design without having to replace the entire product. You can easily customize the aluminum frames to match the season, design, or color scheme. Thanks to the piping system, our textile prints are interchangeable. You don’t even have to take the frame off the wall to change the design. Changing the design is a breeze—and best of all, no tools are needed.
Here's how changing the motif works:
- Remove the fabric. Pull the tab forward, and the fabric will come loose from the frame. Now you can carefully peel the fabric off along the frame.
- Insert a new fabric insert. You can watch our short video for instructions.
Personal Consultation & Planning
We’ll guide you every step of the way—from the initial idea to the finished light wall—with expertise, a personal touch, and reliability.
- Comprehensive planning from concept to implementation
- A personal, direct, and reliable point of contact
- Experienced Support for Your Custom Solution
FAQ
For which applications is the 100 mm LED system suitable?
The system is designed for large-format, backlit indoor wall installations.
Typical applications include:
• Trade show construction
• Retail and POS spaces
• Showrooms
• Brand experiences
• Lobbies and reception areas
• Corporate interiors
With a depth of 100 mm, the system is particularly well-suited for medium to large formats with a uniform lighting effect.

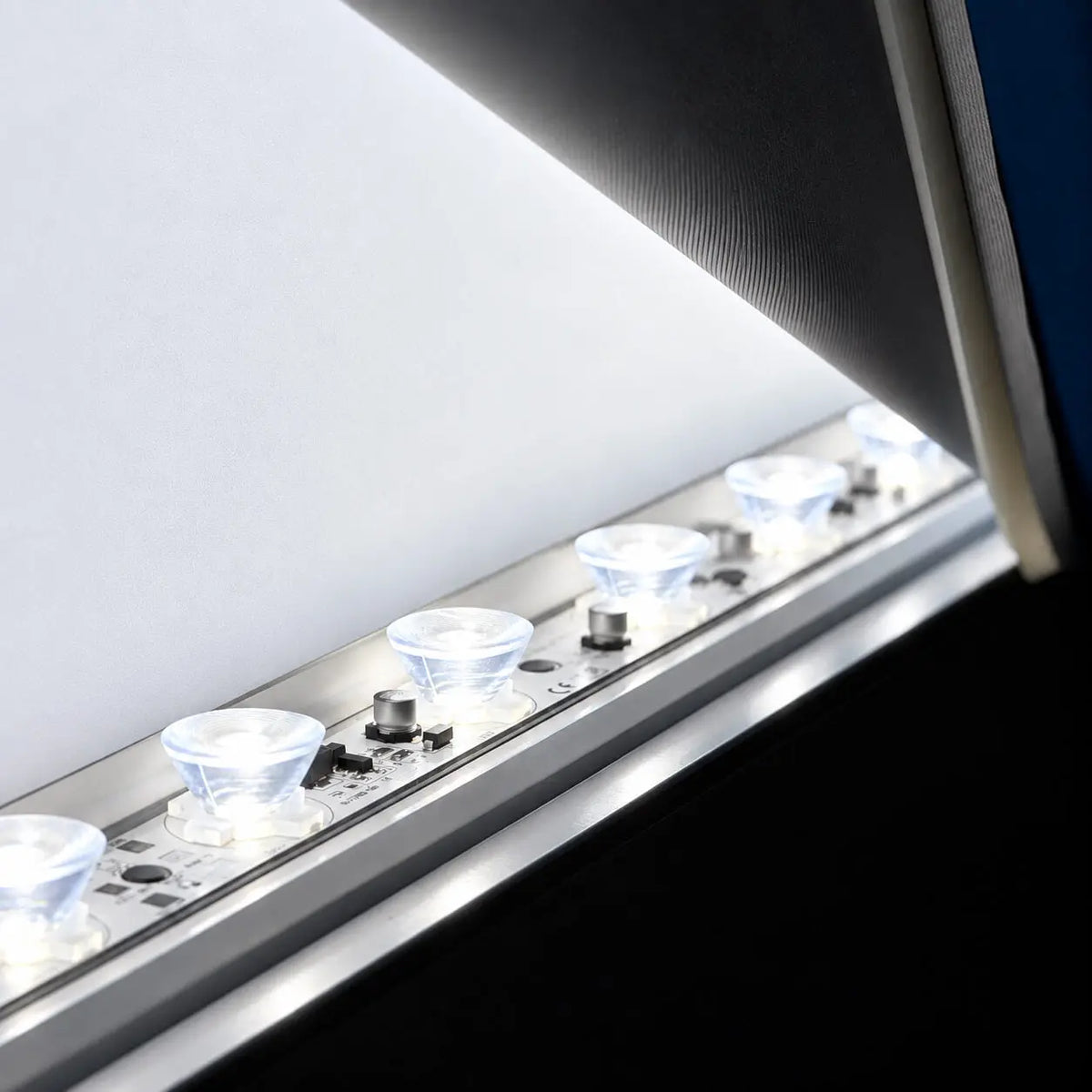

How does edge illumination work?
The LED modules are integrated into the sides of the profiles. The light is evenly distributed across the surface via the diffusion layer of the translucent fabric.
Features:
• Neutral white, approx. 6,500 K
• Approx. 4,680 lumens per meter (long side)
• Vibrant lighting effect with color-intensive motifs
• Energy-efficient operation
The 100 mm depth is optimally tailored to this type of light distribution.
For what types of subjects is this system particularly well-suited?
Edge-lit displays really shine in the following scenarios:
• high-contrast images
• vibrant graphics
• textured or dynamic visuals
• large-scale advertising messages
Subtle brightness gradients create a dynamic, three-dimensional effect—especially in branding and image campaigns.
How do you change the design?
The fabric is finished with a silicone piping that runs all the way around and is pressed into the profile groove.
Replacement is:
• tool-free
• quick
• without dismantling the frame
This makes the system ideal for seasonal campaigns or changing promotional designs.
Is a blockout backing required?
For single-sided installations, a blockout backing is recommended and is included with your order.
It prevents light from escaping to the rear and ensures that all light output is directed forward. This increases efficiency and enhances the visual impact.
What sizes are possible?
The system can be implemented up to approximately:
• 3 m in height
• 20 m in length
depending on project requirements and the substrate.
For very large installations, we recommend project-specific consultation to ensure optimal segmentation.
How are installation and electrical connection performed?
The LED modules and ballasts are integrated into the frame.
Key technical specifications:
• 2 m cable with EU plug
• Cable outlet located at the bottom right as standard
• Custom cable positioning available upon request
The frame is shipped disassembled, which simplifies transport and handling. Wall mounts are included.
What profile colors are available?
Standard:
• Anodized silver
• Satin black
• Satin white
Optional:
• Custom RAL coating
This allows the system to be adapted to a corporate design or interior concept.
Is the system dimmable?
If you’d like a dimming option, the “LED light wall with edge lighting in a 100 mm profile” is the right choice.
Dimming allows you to adapt the lighting to different moods or architectural concepts.
When is the 100 mm edge-irradiation system the right choice?
This system is particularly well-suited when:
• large-format illuminated walls are needed
• cost-effectiveness is a factor
• designs are changed regularly
• a proven and easy-to-install solution is sought
• high visual impact with moderate energy consumption is required
For absolutely uniform, premium surface lighting with very sophisticated designs, a system with rear LED surface lighting may be more appropriate.
Illuminated fabric tensioning frame in a 100 mm profile with edge lighting
Illuminated fabric tensioning frame in a 100 mm profile with edge lighting
- Soft, radiant edge lighting
- Luminous intensity: approx. 4,680 lm/LED meter
- Ideal for colorful or patterned images
Compact Solution for Brilliant Brand Presentations
The illuminated 100 mm fabric tension frame ensures even illumination of large-scale graphics thanks to LED edge lighting. Ideal for trade shows, retail, showrooms, or modern interiors. Interchangeable fabric banners, a variety of profile colors, and the tool-free piping system enable flexible and professional presentations.
