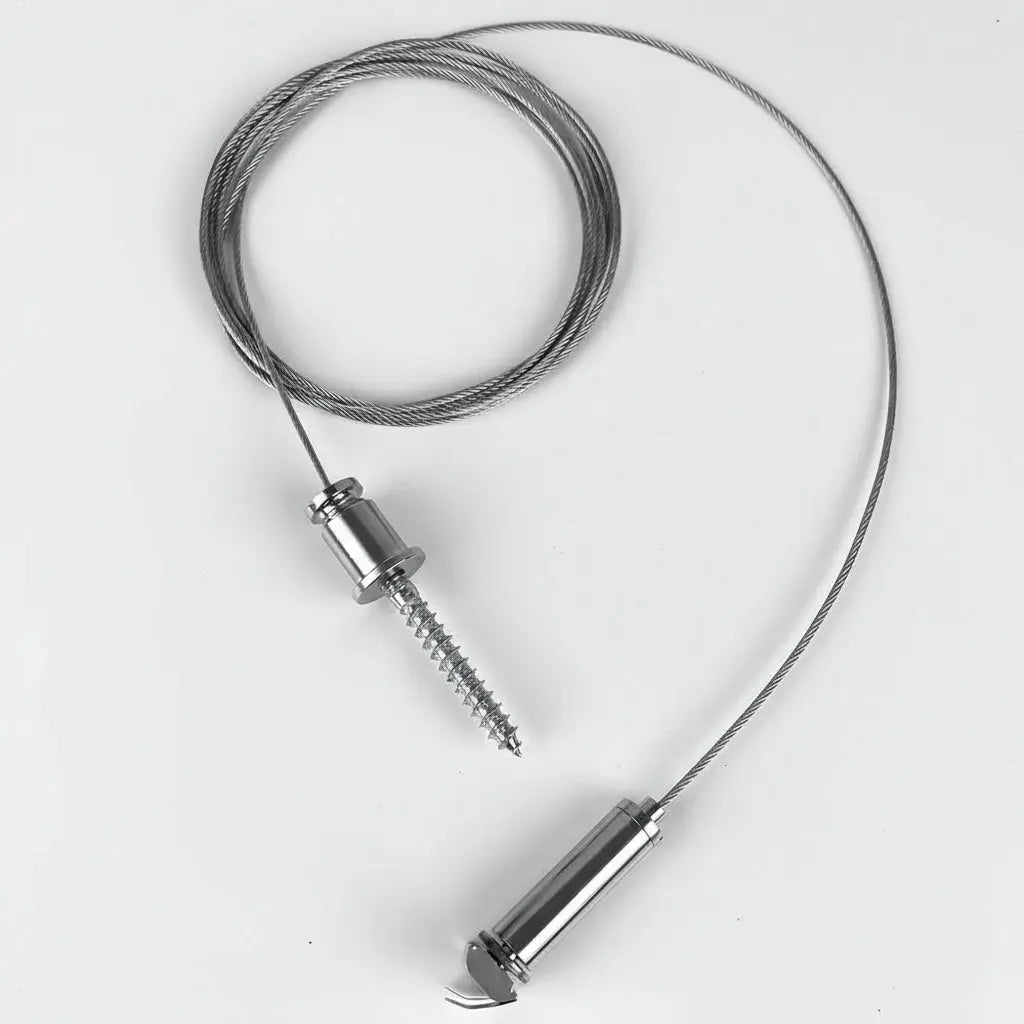

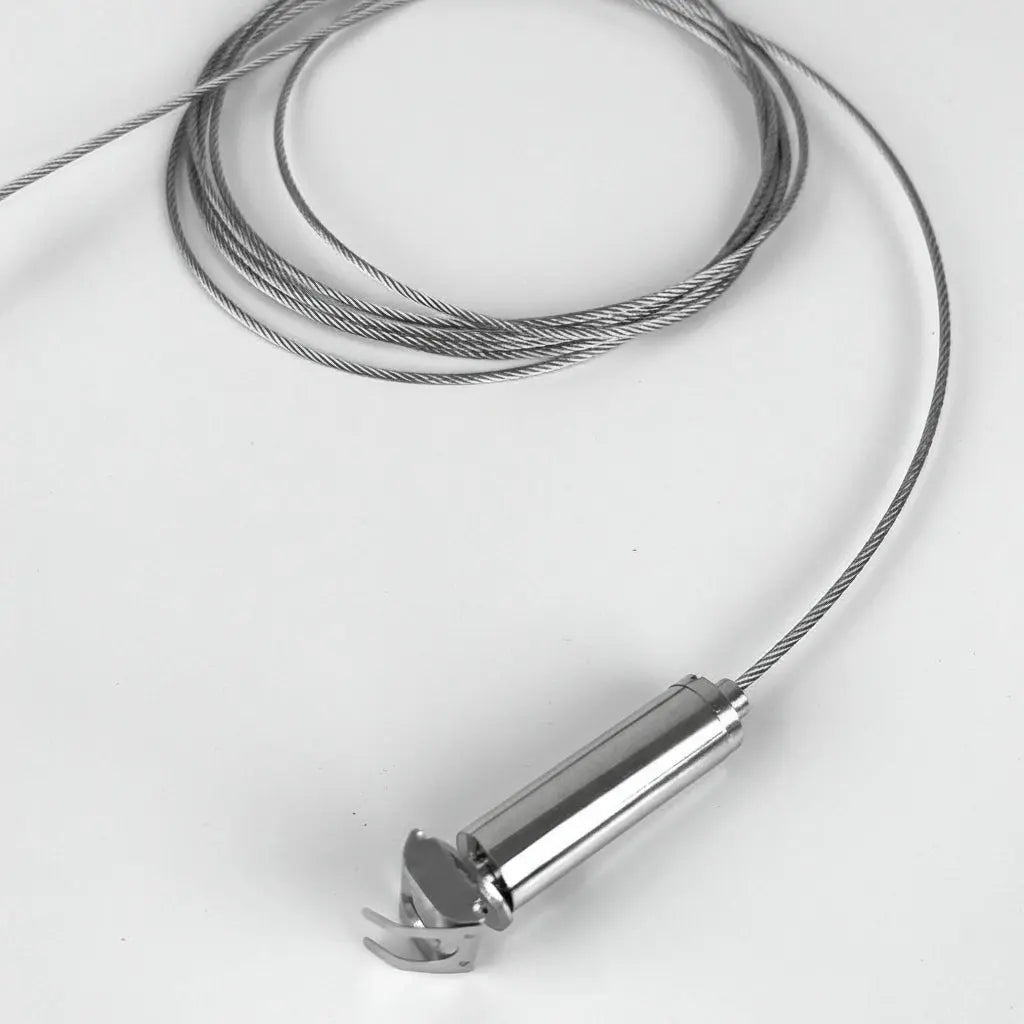

Height-adjustable wire suspension set with tongue for profile 44 mm with slot

Height-adjustable rope suspension set with spring for 44 mm textile tension frames – flexible suspension with easy height adjustment

The height-adjustable rope suspension set was specially developed for suspending 44 mm textile tension frames. The integrated gripper allows for stepless adjustment of the wire rope and flexible positioning of the frame at the desired height.

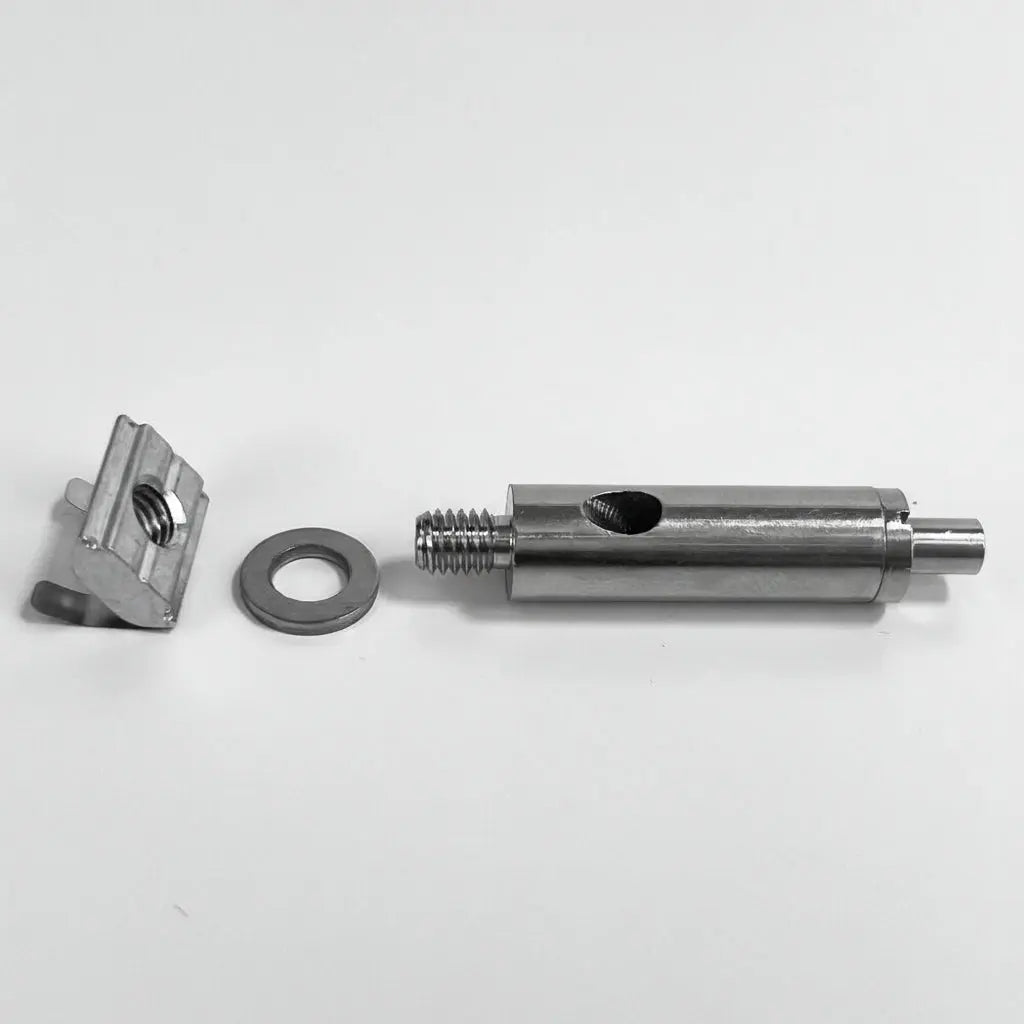

The combination of wire rope, wire rope holder and T-nut with spring enables easy assembly and supports a safe and clean suspension indoors.

Product advantages at a glance

• Suitable for 44 mm textile tension frames with groove
• Stepless height adjustment via gripper
• Easy and quick assembly
• T-nut with spring for secure fastening
• Includes wire rope holder with gripper
• Optionally with wire rope with loop or ceiling mounting
• Ideal for suspended frame systems

General technical data of the rope suspension set

• Design: Height-adjustable rope suspension set

• Suitable for: Primex profile 44 mm with groove

• Wire rope: Ø 1.5 mm

• Wire rope length: 3 m

• Material: Galvanized steel

• Fastening: T-nut with spring

• Variants: Wire rope with loop

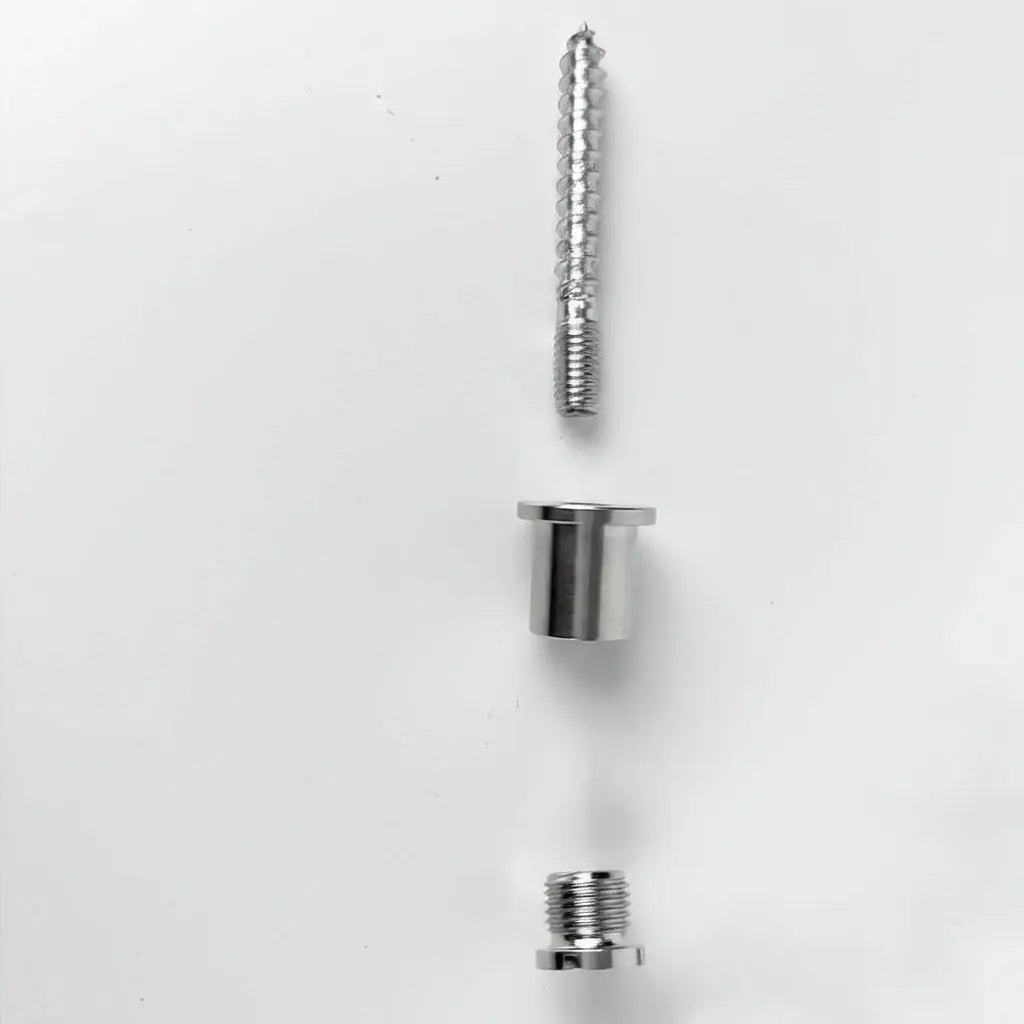

• Wire rope with ceiling mount

Assembly of the rope suspension set

The rope suspension set is attached to the textile tension frame and connected to the wire rope. The integrated gripper allows for stepless height adjustment and flexible frame positioning.

The design supports a clean suspension and allows for easy readjustment.

areas of application

Suspended textile tension frames
Ideal for free-hanging frame systems with flexible height adjustment.

Retail & Shopfitting
Suitable for floating brand and presentation surfaces.

Exhibition stand construction
Perfect for textile hangings and changing presentation concepts.

Interior design & building construction
Ideal for modern room solutions with a high-quality frame look.

Conclusion

The height-adjustable cable suspension set for 44 mm textile tension frames is the practical solution for secure and flexible suspensions. Thanks to the stepless height adjustment and easy assembly, the system is ideal for professional indoor applications.
Note: Suitable for static loads only. Not intended for suspending moving or dynamic loads.
