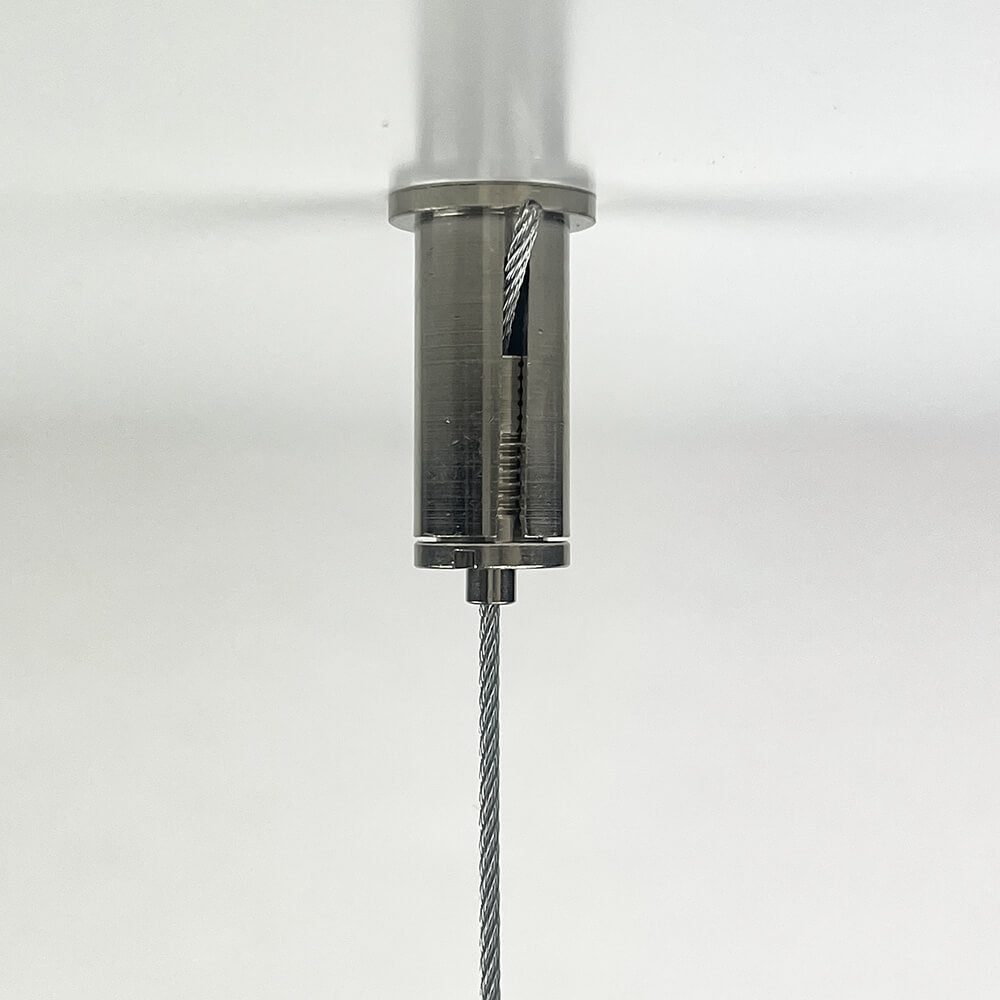

Ceiling Mount for Wire Ropes, Height-Adjustable

Height-adjustable mounting kit for ceilings and floors, designed for the secure installation of fabric stretch frames and aluminum frames.

For ceiling or floor mounting
Infinitely height-adjustable
For wire ropes with a diameter of 1.5 mm

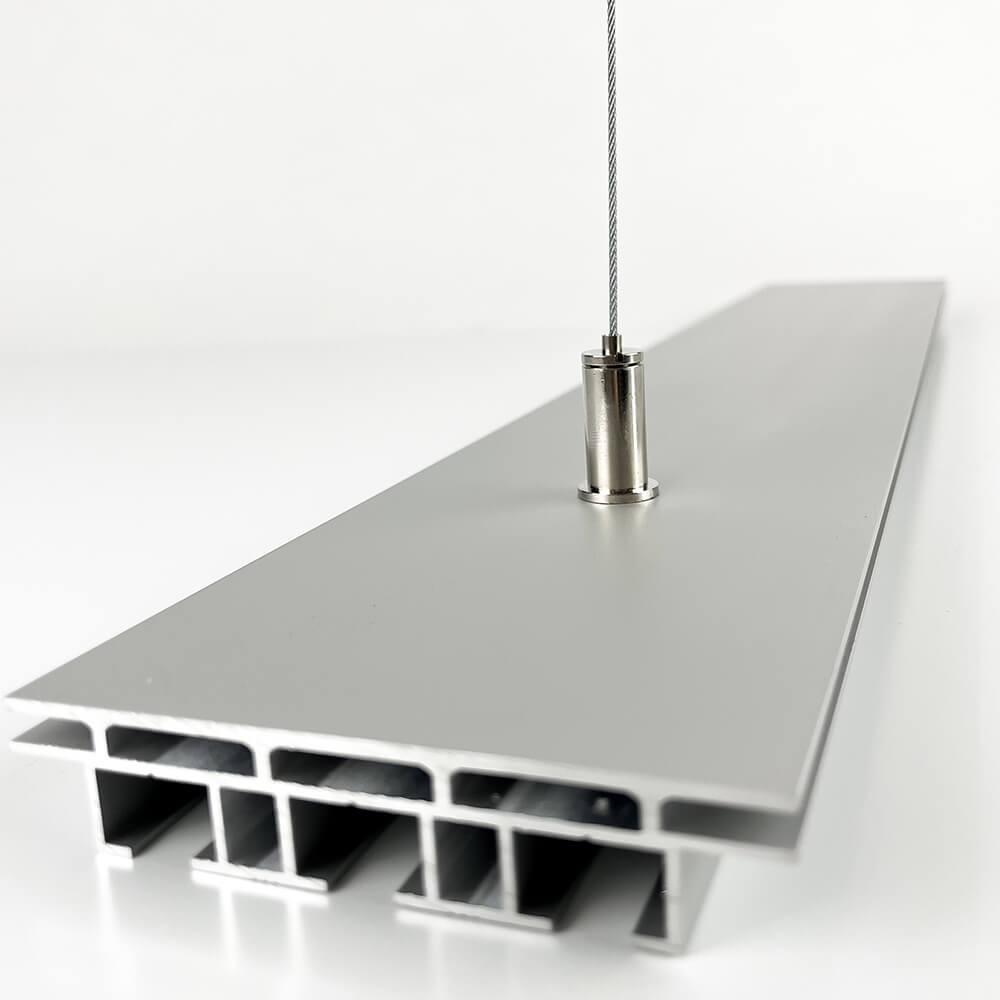

Flexible and Secure Ceiling Mounting for Frame Systems
The wire rope mount for 44 mm textile tension frames, Cube Solid, and Cube Corner enables precise and flexible ceiling mounting of frame systems. An integrated gripper with a hook allows for easy height adjustment as well as quick installation and removal. Ideal for trade show construction, retail, and professional indoor presentation solutions.

Flexible Befestigung für abgehängte Rahmensysteme

Das höhenverstellbare Befestigungsset für Decke und Boden wurde speziell für die flexible Befestigung und Positionierung von Rahmensystemen mithilfe von Drahtseilen entwickelt. Es ermöglicht eine sichere Montage und unterstützt eine saubere Ausrichtung im Raum.

Durch den integrierten Gripper lässt sich das Drahtseil stufenlos einstellen und einfach auf die gewünschte Höhe spannen. Gleichzeitig kann das Seil bei Bedarf schnell wieder gelöst werden.

Product Benefits at a Glance

Für Decken- und Bodenbefestigungen geeignet
Height-adjustable via an integrated gripper
Stufenlose Einstellung des Drahtseils
Einfache und schnelle Montage
Drahtseil leicht lösbar und nachjustierbar
Sturdy steel construction
Ideal für flexible Abhängungssysteme

Allgemeine Technische Daten des Befestigungssets

Ausführung: Befestigungsset aus Stahl mit Gripper
Geeignet für: Deckenmontage oder Bodenfixierung von Rahmensystemen
Gewinde: M10x / M6i
Auslassschlitz: seitlich, 2 mm
Geeignet für Drahtseile: Ø 1,5 mmVerpackungseinheit: 1 Stück
Gewicht pro Set: 0,04 kg

Aufbau des Befestigungssets

Das Befestigungsset wird an Decke oder Boden montiert und mit einem Drahtseil verbunden. Über den integrierten Gripper kann das Drahtseil stufenlos eingestellt und sicher fixiert werden.

Die Konstruktion ermöglicht eine flexible Positionierung und ein einfaches Nachjustieren der Abhängung.

Areas of Application

Abgehängte Textilspannrahmen
Ideal für freihängende Rahmensysteme mit flexibler Höhenanpassung.

Decken- und Bodenbefestigungen
Geeignet für Installationen mit stabiler Fixierung und variabler Positionierung.

Messebau
Perfekt für wechselnde Präsentationsflächen und flexible Aufbauten.

Retail & Innenarchitektur
Optimal für moderne Raumkonzepte und professionelle Präsentationslösungen.

Conclusion

Das höhenverstellbare Befestigungsset für Decke und Boden ist die praktische Lösung für flexible und sichere Befestigungen mit Drahtseilen. Durch die stufenlose Verstellung und die einfache Handhabung eignet sich das System ideal für professionelle Anwendungen im Innenbereich.

Personal Consultation & Planning

We’ll guide you every step of the way—from the initial idea to the finished light wall—with expertise, a personal touch, and reliability.

Comprehensive planning from concept to implementation
A personal, direct, and reliable point of contact
Experienced Support for Your Custom Solution

Free Consultation

FAQ

For which applications is the mounting kit suitable?

This set is suitable for ceiling mounting or floor mounting of frame and suspension systems in combination with wire ropes with a diameter of 1.5 mm.
Typical applications include acoustic ceiling panels, free-hanging frame structures, tension frames, or temporary suspensions in commercial settings.

Is the mounting kit suitable for commercial use?

Yes. The set is made of sturdy steel and is designed for professional indoor use.
It is suitable for office buildings, public facilities, exhibition spaces, or trade show structures—always in accordance with structural specifications.

What technical specifications should be taken into account?

The set features an M10x/M6 thread and a side outlet slot (2 mm) and is designed for wire ropes with a diameter of 1.5 mm.
Use with other rope diameters should be statically tested.

How does the height adjustment work?

The integrated gripper allows for stepless adjustment of the wire rope.
The height can be adjusted without additional tools, which makes it easier to precisely align frames or ceiling panels.

Can the wire rope be loosened or adjusted later?

Yes. The mechanism allows the wire rope to be loosened and repositioned in a controlled manner.
This is particularly advantageous for project modifications or temporary installations.

What safety considerations need to be taken into account?

The mounting kit is designed for static, non-dynamic loads.
The maximum allowable load depends on the wire rope used and the substrate (concrete, steel, wood, etc.) and must be verified on a project-by-project basis.

For which surfaces is this set suitable?

It can be mounted on solid ceilings or floors, provided that suitable fasteners (wall plugs, anchors) are used.
The fasteners should be selected based on the construction type and load requirements.

What advantages does the kit offer to planners and installers?

The compact design (0.04 kg per set) and the tool-free height adjustment allow for quick, precise installation.
This reduces installation time and the effort required for adjustment, especially during mass production or larger projects.

Is the system cost-effective for use in larger projects?

Thanks to its ease of use and reusability, the set is suitable for both permanent installations and temporary setups.
This increases reusability and reduces long-term system costs.

Which sustainability factors are relevant?

The set is made of durable steel and is designed for repeated use.
Thanks to its sturdy construction and reusability, it supports sustainable project and trade show concepts with reduced material consumption.

Height-Adjustable Ceiling/Floor Mounting Kit

For ceiling or floor mounting
Infinitely height-adjustable
For wire ropes with a diameter of 1.5 mm
