- Sleek and elegant, designed for wall mounting
- Stunning Custom Fabric Banner
- Oeko-TEX® 100 certified
A Round Solution for Stylish Room Acoustics
The 19 mm round acoustic panel combines modern design with subtle sound absorption for more pleasant room acoustics. Ideal for offices, living spaces, or public areas. Interchangeable fabric banners and customizable designs make it a stylish design element.
Round Acoustic Panel — 19 mm Slim Design for subtle acoustic enhancement in a round shape
A well-rounded acoustic solution—19 mm combines an exceptionally slim design with a modern, soft aesthetic. It is the ideal solution for anyone who wants to combine a subtle improvement in room acoustics with stylish design.
Thanks to its shallow depth of just 19 mm, this round acoustic panel blends unobtrusively into any environment while providing a noticeable reduction in reverberation and distracting noise. Depending on how it is installed, it achieves sound absorption class B or C and is particularly well-suited for rooms with moderate acoustic requirements.
The customizable design transforms a round acoustic panel into a decorative element that harmoniously combines function and form.
Product Benefits
-
Ultra-Slim Design: Only 19 mm deep for discreet integration
-
Round Design: A modern, soft shape that creates a unique ambiance in any room
-
Acoustically effective: Sound absorber class B or C, depending on installation
-
Customizable: Free choice of designs for creative interior concepts
-
Flexible and interchangeable: Fabric prints can be changed at any time without tools
-
High-quality materials: aluminum frame, silver anodized, optionally RAL powder-coated
-
Easy installation: Direct wall mounting without additional wall brackets
-
Fire-rated: B1 according to DIN 4102
Custom Design for Every Room
Our round acoustic banner offers a unique combination of acoustic functionality and design flexibility. Your chosen design is printed in high quality onto the fabric banner, creating a harmonious, modern look.
The round shape adds a visual touch of lightness to the room, making it easy to incorporate into existing interior design concepts. The fabric banner can be easily replaced at any time, ensuring maximum flexibility in interior design.
General Technical Details
- Depth: 19 mm
- Material: Aluminum profile, silver anodized
- Optional: Powder coating available in RAL colors

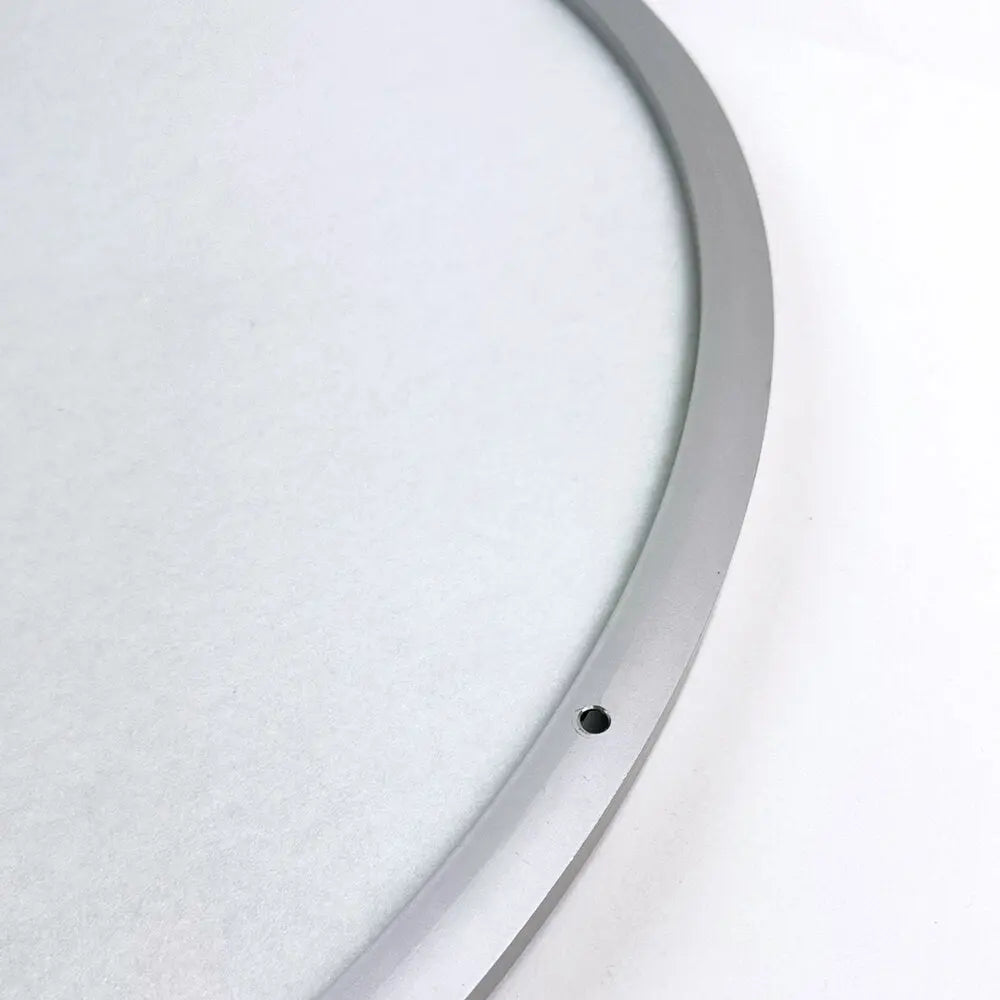

- Installation: Direct wall mounting without a wall bracket
- Shipping:
- Fully assembled up to Ø 150 cm
- Larger sizes shipped disassembled
- Format: Standard diameter or custom sizes

Certifications
- Sound absorption class:
- Class C for direct wall mounting
- Class B when mounted away from the wall
- Textile printing: Fire resistance class B1, B-s1, d0 according to EN 13501
- Materials:
- Acoustic material certified to Oeko-TEX® 100
- Hypoallergenic, low-emission, and recyclable
Acoustically optimized fabric banner for round acoustic panels
- High-quality fabric banner based on a custom design
- Vibrant colors and razor-sharp print quality
- Quick design changes thanks to a tool-free system
- Sound-transparent fabric to enhance the acoustic effect
- A matte, low-reflection surface for an elegant look
- Ideal for round, modern design concepts
Possible Applications
Optimal room acoustics in every room
The round acoustic panel is ideal for rooms with moderate acoustic requirements and high design standards:
-
Living Spaces and Home Offices: Subtle Integration Combined with Improved Acoustics
-
Offices and meeting areas: Optimizes room acoustics and visually opens up the space
-
Medical offices and healthcare settings: A calmer atmosphere without a technical feel
- Lobby Areas and Public Spaces: A Stylish Combination of Design and Functional Acoustic Solutions
Conclusion
Round Acoustic Panel – 19 mm is the perfect choice for anyone looking for a discreet, stylish, and functional acoustic solution.
With its sleek construction, modern rounded shape, and flexible design options, it offers an ideal combination of design and acoustic enhancement—perfect for living spaces, offices, and public areas.
Your Custom Inquiry to Primex
Would you like to order a custom size, or do you have a project?
As a manufacturer, we produce custom-made products for you!
We'd be happy to advise you on your projects and fulfill your specific requests.
Print Data & Data Validation:
Please create your designs directly in the desired final format. For instructions on how to correctly prepare your print files, please refer to our data sheet.
How to Prepare Your Print Files Correctly: Primex Print files.
Of course, we carefully review your print files.
If the resolution is insufficient for the desired print, we will contact you immediately to discuss the next steps together.
Assembly & Installation
Our products are either delivered pre-assembled or are designed to be assembled easily and efficiently. Depending on the system, they are delivered as a finished unit or as a well-designed modular system that, in many cases, can be assembled without tools or with minimal use of tools.
To ensure safe and smooth installation, we provide you with comprehensive functional descriptions, detailed installation instructions, and—for select systems—supplementary installation videos. This way, you can complete the setup step by step, even without specialized knowledge.
Why not check out our YouTube channel, which features lots of helpful installation videos?
Professional Installation Service (optional)
Upon request, we can also handle the entire installation for you. To ensure optimal planning for the on-site installation, please fill out our installation checklist and send it to us. Based on this information, we will prepare a customized, binding quote for the project.
We draw on a pool of experienced professional installers—particularly in the DACH region and in select other European countries. Many of our partners already have extensive experience with our systems, which ensures reliable, clean, and on-time installation.
Form:
Thank you very much for your trust. If you have any questions about installation, planning, or implementation, our team is always happy to assist you.
Cleaning and Care Recommendations for Frames
- Use only soft, non-abrasive cloths or rags.
- Important: The surfaces to be cleaned should be cleaned as gently as possible and then rinsed thoroughly with water, as residues of salts, acids, or alkalis can cause corrosion.
- Rubbing can cause the coating to become dull.
- Powder-coated parts should be stored in a dry place only.
- Standard pH-neutral household cleaning products are suitable.
- Never use products containing solvents, alcohols, thinners (e.g., nitro thinners), acetic acid, or other acids.
- Never use abrasive or scratchy cleaning products.
Care Instructions for Surface Textile Prints “Without LED”
- Machine washable at 30° (easy care), use liquid color-safe detergent, gentle spin cycle (max. 800 rpm)
- Ironing: On the reverse side at setting 1–2
- Tumble dryer safe (cold/lukewarm). Alternatively: Air dry on a large surface.
- Store on suitable cardboard rolls or loosely folded in a cardboard box (Caution! Be sure to avoid creases.)
- Store at a temperature between 10°C+ and 60°C+, maintaining a constant temperature
Care Instructions for Textile Prints with a Gray, White, or Black “Blockout” Separating Layer
- Not washable
- Do not iron
- Store on suitable cardboard rolls or loosely folded in a cardboard box (Caution! Be sure to avoid creases.)
- Store at a temperature between 10°C+ and 60°C+, maintaining a constant temperature
Care Instructions for Transparent Textile Prints “with LED”
- Not washable
- Do not iron
- Store on suitable cardboard rolls or loosely folded in a cardboard box (Caution! Be sure to avoid creases.)
- Store at a temperature between 10°C+ and 60°C+, maintaining a constant temperature
Care Instructions for Printed PVC Tarps
- Not washable
- Do not iron
- Store on suitable cardboard rolls or loosely folded in a cardboard box (Caution! Be sure to avoid creases.)
- Store at a temperature between 10°C+ and 60°C+, maintaining a constant temperature
Disclaimer: Care and Cleaning Recommendations
The care and cleaning recommendations we provide have been developed and reviewed in consultation with the respective manufacturers of the raw materials used. However, this information is provided solely as non-binding guidance based on our many years of experience.
Due to individual manufacturer tolerances, different cleaning agents, varying machines, and differing application conditions, Primex cannot assume any warranty or liability for the actual suitability, effectiveness, or results of the recommended care and cleaning measures.
Liability—regardless of the legal basis—is excluded. Responsibility for the selection, application, and implementation of appropriate care and cleaning procedures lies solely with the user.
We appreciate your understanding and thank you for your trust.
Tool-free design changes—we think ahead!
We’re committed to sustainability not only when it comes to the raw materials for our acoustic art, acoustic partitions, etc., but we also think long-term. That’s why we’ve chosen a framing system that allows you to change the design without having to replace the entire product. You can easily customize the aluminum frames to match the season, design, or color scheme. Thanks to the piping system, our textile prints are interchangeable. You don’t even have to take the frame off the wall to change the design. Changing the design is a breeze—and best of all, no tools are needed.
Here's how changing the motif works:

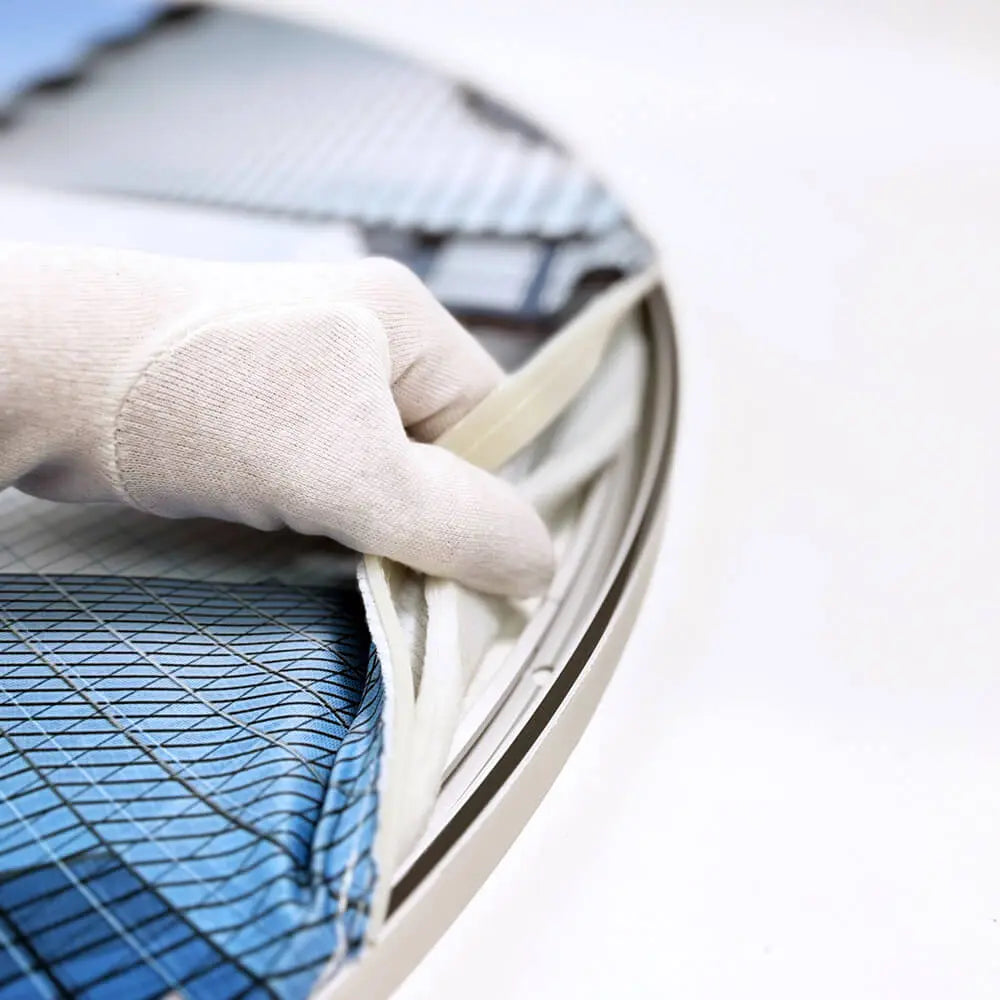

- Remove the fabric. Pull the tab forward, and the fabric will come loose from the frame. Now you can carefully peel the fabric off along the frame.
- Insert a new fabric insert. You can watch our short video for instructions.
Personal Consultation & Planning
We’ll guide you every step of the way—from the initial idea to the finished light wall—with expertise, a personal touch, and reliability.
- Comprehensive planning from concept to implementation
- A personal, direct, and reliable point of contact
- Experienced Support for Your Custom Solution
FAQ
For which rooms is the round acoustic panel with a depth of 19 mm suitable?
The 19-mm system is designed for spaces with moderate acoustic requirements. It is particularly well-suited for living rooms, home office areas, small offices, meeting areas, medical offices, or reception areas.
Thanks to its shallow depth, the system emphasizes discreet, flush installation—ideal for interior designs where aesthetics and a low-profile appearance are more important than maximum sound absorption.
What is the acoustic performance?
The acoustic performance depends on the installation method:
• Sound absorber class C for direct wall mounting
• Sound absorber class B when installed at a distance from the wall
The system reduces reverberation and significantly improves speech intelligibility; however, it is not a substitute for large-scale acoustic solutions in rooms with high noise levels.
Does the acoustic design meet fire safety requirements?
Yes. The system meets fire resistance class B1 according to DIN 4102 (flame-retardant).
This makes it suitable for public areas such as offices, medical practices, or reception areas. In addition, the acoustic material used is Oeko-TEX® 100 certified, low-emission, hypoallergenic, and recyclable.
How do you install the round acoustic panel?

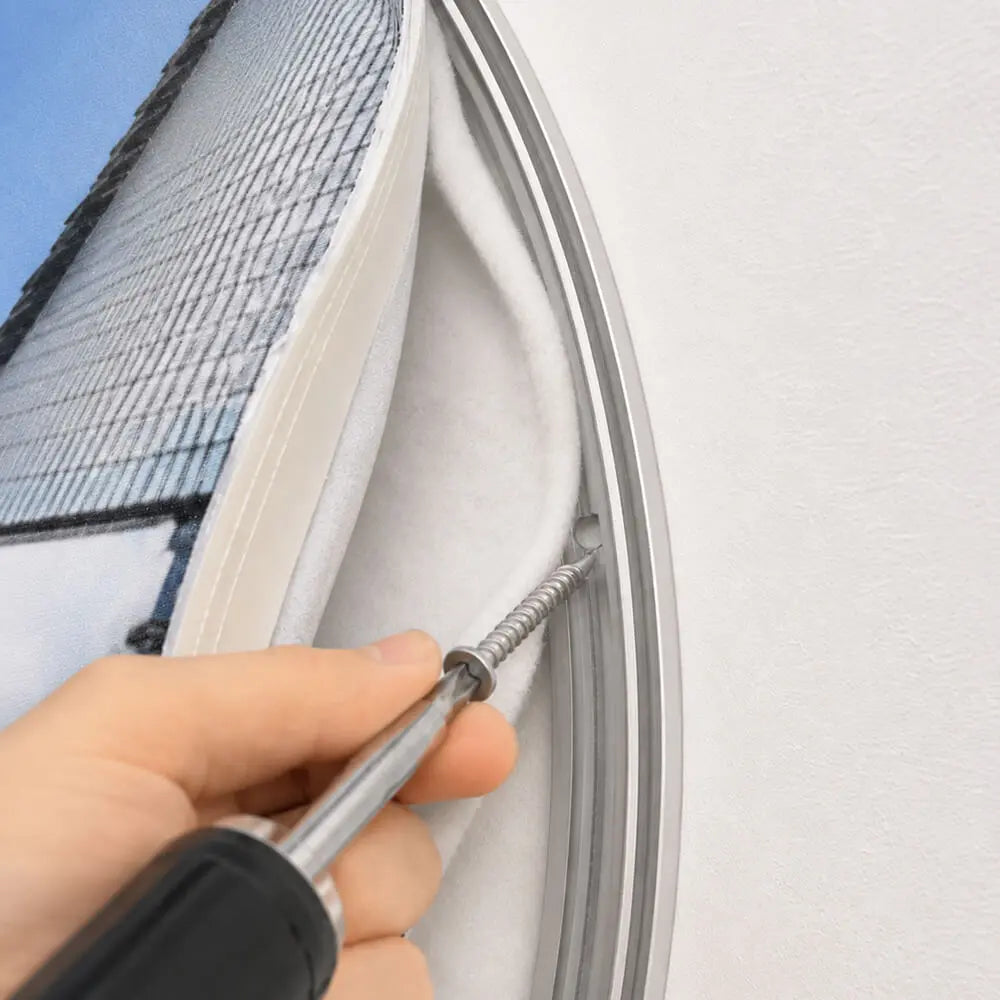

The acoustic panel is mounted directly on the wall and does not require a complex substructure.
Up to Ø 150 cm, the product is delivered fully assembled, making installation particularly easy. Larger sizes are delivered disassembled and can be put together in just a few simple steps. Screws and anchors must be selected by the customer based on the surface.
Can the design be replaced later?
Yes. The fabric banner can be replaced without tools using an integrated piping system.
This allows the design to be adapted at any time to new color schemes, seasonal themes, or changes in corporate design guidelines without having to replace the aluminum frame.
Does the fabric banner affect the acoustic performance?
No. The fabric used is acoustically permeable. Sound can pass unimpeded into the absorber material behind it.
This requires the use of the specially tuned printed fabric, which is used as standard in this system.
How does the 19-mm system differ from thicker acoustic frames?
The 19-mm acoustic panel is intentionally designed as a slim solution. The focus is on a shallow installation depth and a discreet appearance.
Thicker systems, such as those with a depth of 55 mm, achieve higher sound absorption classes and are suitable for conference rooms, open-plan offices, or areas with significant reverberation. The 19-mm system, on the other hand, is ideal for supplementary or moderate acoustic measures.
What formats are available?
Both standard diameters and custom sizes are available.
Dimensions are manufactured on a project-by-project basis, especially for round shapes. Larger diameters can also be produced—these are delivered disassembled for logistical reasons.
What are the requirements for print files?
Images should be created in the desired final format. Alternatively, square image files may be provided—the circular crop will be adjusted accordingly.
Print files are carefully checked before production. If the resolution is insufficient, we will contact you to discuss how to proceed.
What design advantages does the round shape offer?
The circular geometry creates a softer, more harmonious spatial effect than rectangular elements.
It breaks up linear architecture, appears less technical, and can be used both as a subtle design element and as a deliberate design statement. When combined with a custom selection of motifs, it results in an acoustically effective solution with a clear design statement.
