LUMMEA Core Light Wall

LUMMEA Core light wall with edge illumination

The LUMMEA Core light wall with edge illumination is an efficient and economical lighting solution for commercial buildings with a clear, architectural design. The system is based on lateral light input in the 100 mm profile and enables the implementation of large-format light surfaces in a wide variety of interior design concepts.

The combination of targeted light guidance and individually printable textile surfaces creates a versatile solution for applications where Light, surface and design interact in an integrated way.

The edge illumination used creates a characteristic light distribution, which is particularly noticeable when graphic, color-intensive or textured motifs their strength unfolds. Subtle gradients of brightness across the surface recede into the background or selectively enhance the visual effect – creating vibrant, visually exciting light surfaces.

The LUMMEA Core is therefore ideally suited for projects where, in addition to functional lighting, Design, dynamics and economic efficiency The focus is on.

System structure & technical characteristics

• Installation depth100 mm – designed for efficient edge illumination
• Profile: 16 RAL colors, powder-coated

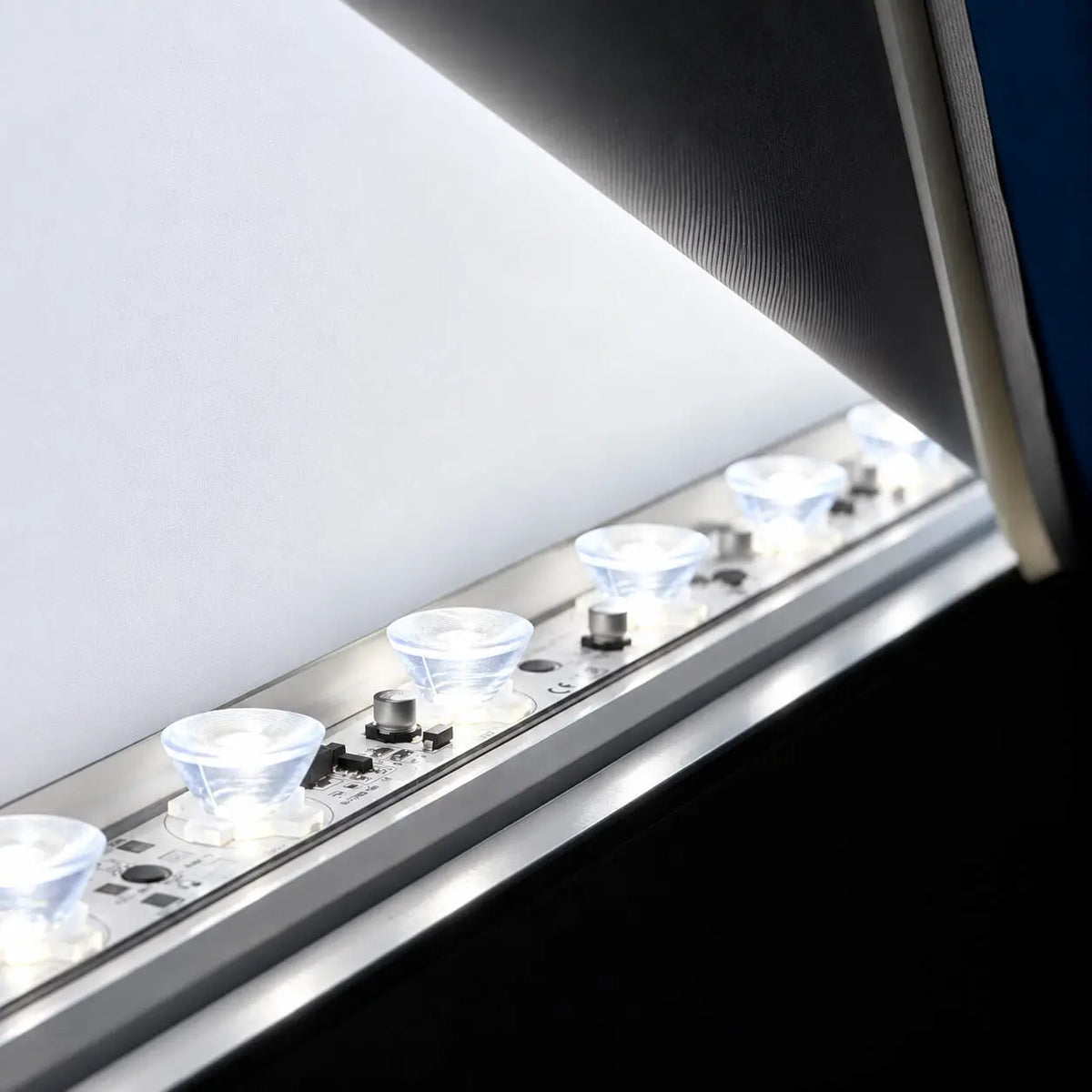

• LED modules integrated laterally on the opposite longitudinal profiles
• Ballasts integrated within the framework
• Light color: 6,500 Kelvin (neutral white, high contrast)
• Light output: Approximately 4,680 lumens per meter (longitudinal side)
• Dimmable
• Optional control: Casambi (DMX, Dali, KNX etc.)
• Connection: 2m cable with EU plug

Optional lighting control for your light wall – simple, flexible, professional

Optional lighting control for your light wall – simple, flexible, professional
Enhance your light wall with a convenient and intuitive lighting control system that integrates perfectly into modern interior design concepts. This optional remote control offers five individually programmable buttons, allowing you to easily control different lighting zones or lighting scenarios.

Your benefits at a glance:

• Individual control of up to 5 light groups
• Easy to use – clearly structured and immediately understandable
• Pre-configured solution – We program the lighting control system precisely according to your requirements.
• Personal consultation – together we determine the function of each key
• Seamless integration into your light wall and existing lighting concepts

The lighting control to be selected is based on Casambi and enables you to control it in a particularly flexible and future-proof way – via button and additionally via app.

Furthermore, solutions based on DALI or DMX Possible. These require more detailed coordination beforehand to optimally implement all technical and design requirements. Depending on the scope and degree of customization, this may affect the price – but in return, it offers you maximum planning freedom and professional management options, even for complex projects. Please contact us to discuss this further.

Our service for you:
We handle the complete setup and programming of your lighting control system. After installation, you will receive clear instructions so that you can immediately use your light wall efficiently and effectively.

Especially for architects, planners and office outfitters, this solution offers maximum design freedom: Whether different light walls in a room, coordinated lighting for work areas or targeted accent lighting – you define the functions, we take care of the implementation.

Design & Surfaces

The LUMMEA Core light wall can be precisely integrated into architectural concepts via individually printable textile surfaces. Photorealistic sublimation printing enables high-quality reproduction of images, graphic content, or brand presentations.

• Special breathable textile for even light distribution
• Rear blockout prevents light from escaping to the rear

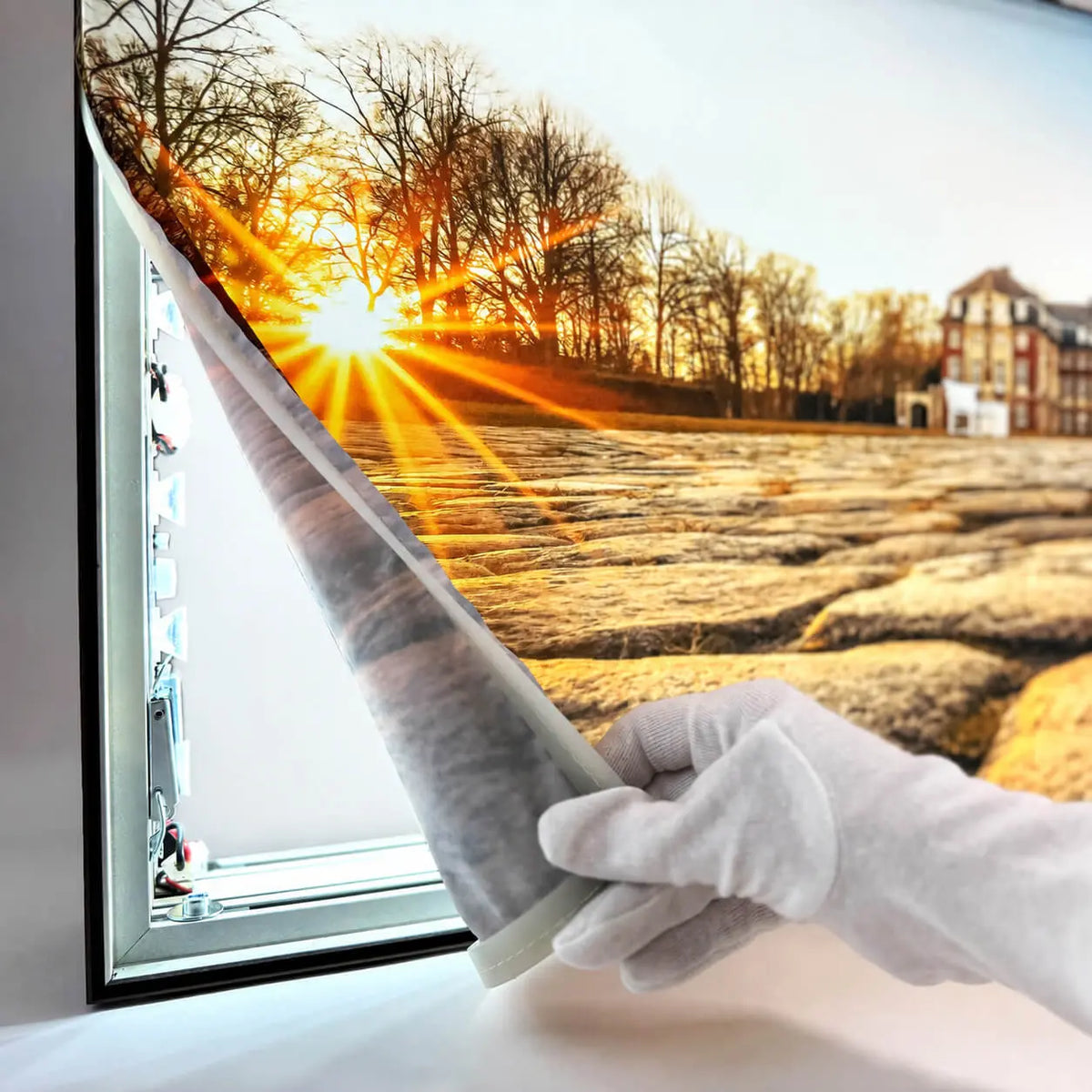

• Tool-free motif change via keder system
• Environmentally friendly printing with water-based inks

The aluminum profiles are available in silver anodized or matte black as standard. Other color and surface finishes (RAL, fine texture, etc.) can be implemented on a project-specific basis.

Planning advantages

• Economical lighting solution through efficient edge illumination
• High design flexibility through interchangeable motifs
• Scalable system for different project sizes
• Easy to install and low-maintenance
• Suitable for long-term as well as temporary applications

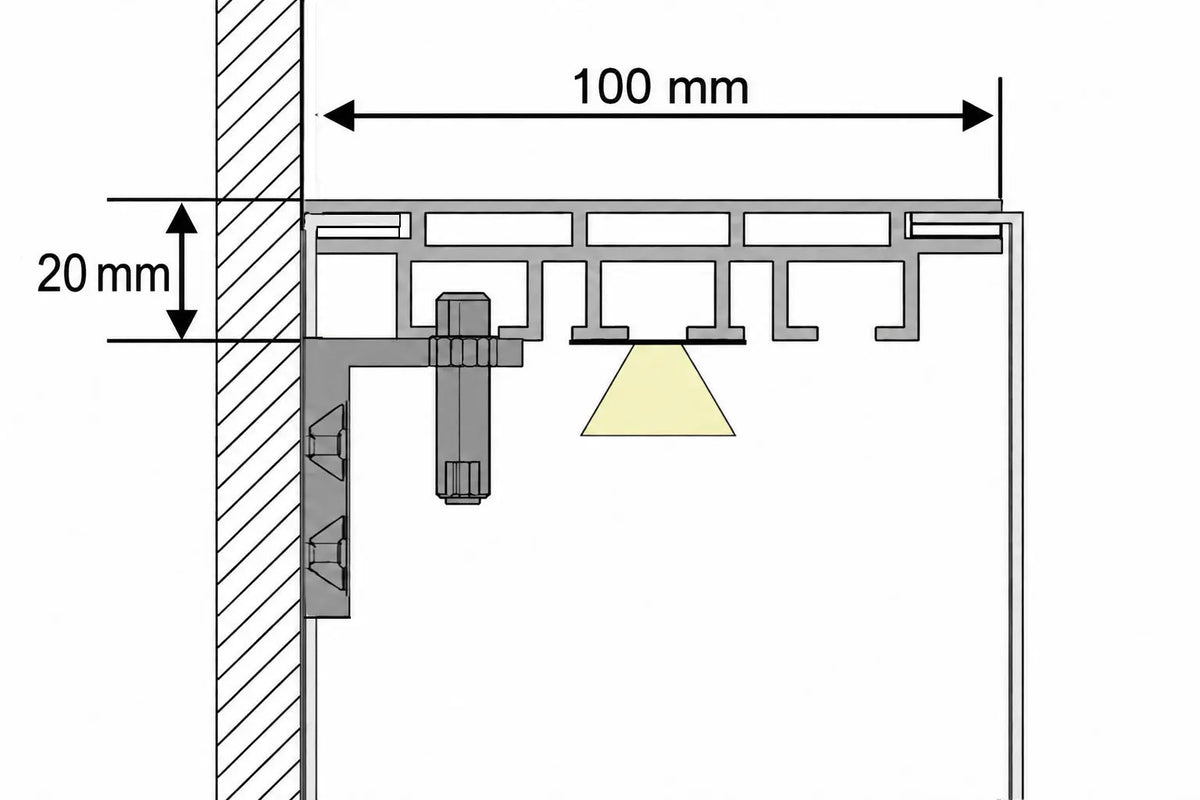

Constructive advantages of the 100 mm installation depth

The defined installation depth enables efficient positioning of the LED modules along the side profiles and forms the basis for an economical lighting solution with a flat design.

The divisible frame construction facilitates transport and handling on the construction site and enables the implementation of even large-format light surfaces.

• Suitable for heights up to approx. 3.0 m
• Lengths up to approximately 20 m are possible.
• Can be used as a standalone installation or as a continuous wall solution

Delivery & Assembly

The Lummea Core light wall system is delivered disassembled and is designed for efficient on-site assembly.

• Divisible frame construction for easy transport
• Wall mounts included
• Fastening is achieved through the blockout fabric.
• Screws and dowels to be provided by the customer

Areas of application

LUMMEA Core light wall is suitable for applications where light surfaces are used functionally and aesthetically:

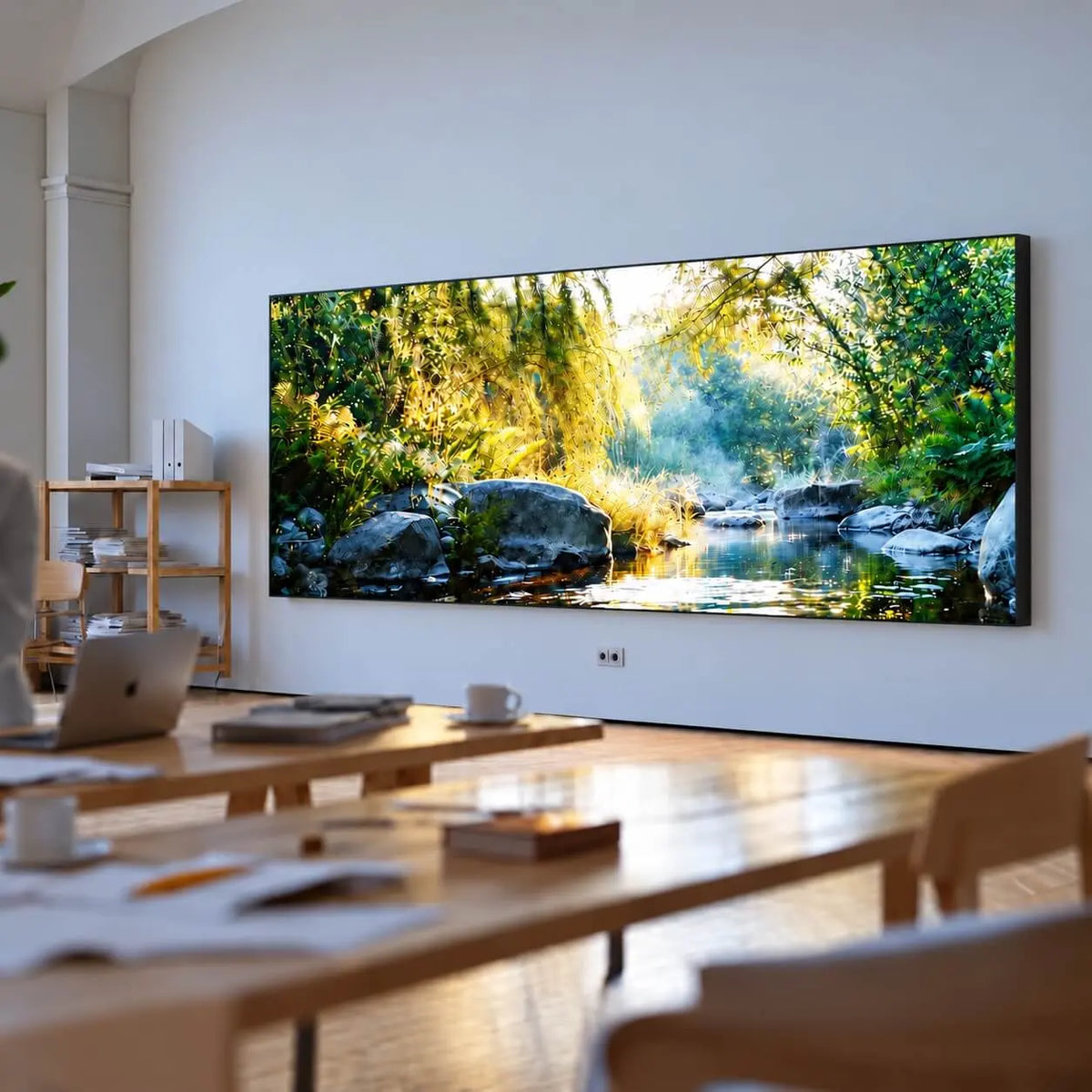

• Office and reception areas – calm, diffused light integration
• Healthcare – pleasant lighting moods in sensitive areas
• Retail – interchangeable motifs for campaigns and brand presentation
• Hospitality & Interior Design – as a space-defining design element
• Exhibition stand construction & promotion – transport-optimized, temporary lighting solutions



Differentiation of LUMMEA light wall systems

The right light wall for your project

LUMMEA Core Light Wall – Edge Lighting (Entry-Level Solution)
The LUMMEA Core is based on efficient edge illumination and is the economical solution for uniform illuminated surfaces with a shallow installation depth. Ideal for standardized applications requiring high flexibility.

LUMMEA Plus – Surface lighting (100 mm system depth)
The LUMMEA Plus offers true surface lighting with particularly homogeneous illumination and is ideally suited for large-format, rectangular or square light walls in commercial buildings.

LUMMEA Pro – Surface lighting (55 mm system depth & freedom of shape)
The LUMMEA Pro is the premium solution: exceptionally flat, maximally homogeneous, and additionally available in round and organic shapes are possiblePerfect for design-oriented architecture with the highest standards.
