Illuminated ceiling in 100 mm profile - edge illumination
Illuminated ceiling in 100 mm profile - edge illumination
Regular price
0,00€
Regular price
Sale price
0,00€
(including
Shipping)
Couldn't load pickup availability
Free shipping on orders over €50 (Germany) / €150 (international)
- Secure Delivery:10 - 15 days
- Quality from Germany – for over 25 years
Leafroomfungus:
Book for free
Personal Consultation & Planning
Description
Illuminated ceiling in a 100 mm profile with edge lighting – a compact lighting solution for offices, medical practices, retail spaces & interiors
This 100 mm profile luminous ceiling with side edge illumination combines a compact design with efficient and economical lighting technology. It is ideally suited for offices, medical practices, retail spaces, or interior design concepts and impresses with brilliant light quality, flexible motif design, and easy installation.
The edge illumination technique is particularly advantageous for color-intensive, structured or non-homogeneous image motifs, where a slight distribution of brightness across the surface is not disruptive, but can even enhance the image effect.
Technical characteristics:
- Frame depth: 100 mm – ideal for efficient edge illumination

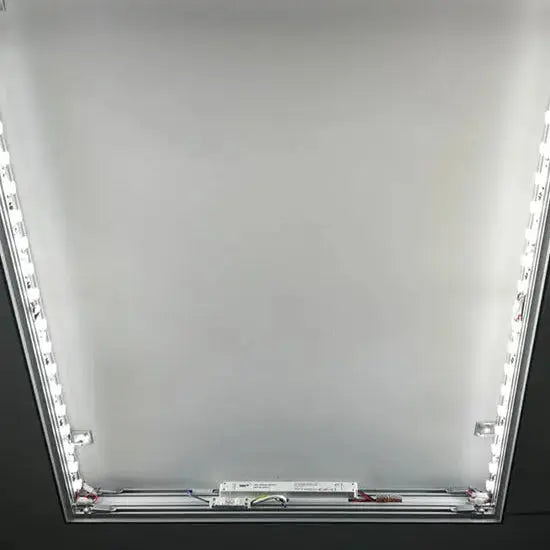

- LED modules are mounted opposite each other on the profiles along the long sides.
- Assembly aid for quick setup
- Ballasts integrated into the frame
- Light color: 6,500 Kelvin for neutral, high-contrast display
- Luminous intensity: approx. 4680 lumens/meter (longitudinal side)
- Optionally with dimming (including remote control or via app)
- 2 m white connection cable with EU plug
Profile colors:
- Standard finishes include silver anodized or black coated (matte), optional white (matte or optionally with fine texture) available at an additional cost.
- Other RAL colors and textures are available upon request for an additional charge – please specify your desired color and surface texture when inquiring or ordering (e.g., smooth matte, satin gloss, or fine texture matte). Further information can be found on our [website/platform - context needed]. Color guide.
Advantages of the 100 mm installation depth:
The 100 mm deep aluminum frame construction provides the ideal conditions for efficient edge illumination, as the LED modules are mounted along the side profiles on the long sides at the top and bottom, saving space.
This well-thought-out design not only allows for a flat and elegant appearance, but also easy transport when disassembled and flexible integration into a wide variety of room concepts – from individual installations to large-area ceiling solutions.
Suitable for formats with a width of up to approx. 3.0 meters and lengths of up to 20 meters.
Textile printing & printing technology:
- Impressive visual impact through custom-made photorealistic textile printing
- Special textile with integrated diffusion layer for uniform light distribution
- The white blockout backing prevents light from escaping from the rear.
- Tool-free motif change thanks to a practical keder system
- Environmentally friendly sublimation printing with water-based inks
Delivery & assembly:
- Delivered disassembled to reduce shipping costs and transport volume
- Divisible frame construction – also fits in smaller vehicles or elevators
- The white blockout backing prevents light from escaping from the rear.
- Wall brackets are included (they are screwed to the wall through the blockout fabric).
- Screws and dowels not included – please select on site.
Typical areas of application:
- Offices & Reception Areas: Accentuated lighting surfaces for modern interior design
- Medical Practices & Healthcare: Ceiling designs in waiting or treatment rooms, optionally with surface finishing for medical areas
- Retail & Sales Areas: Variable promotional themes that change seasonally
- Promotion & Events: Transport-friendly, flexibly deployable light ceilings for temporary brand presentations or room staging
Your advantages:
- Cost-efficient thanks to 100 mm installation depth and proven edge illumination
- Unique lighting effect and low energy consumption
- Interchangeable textile motifs – economical, sustainable and versatile
- Flexible design thanks to variable formats and individual profile colors
- Technically sophisticated system – low maintenance, easy to install and durable.
Important!
The EU plug is located in the bottom right corner (number 5) by default! Please specify any other positioning requests with the order number.
Conclusion:
The LED ceiling light with edge illumination is the ideal solution for modern interior design with lighting. It combines functionality, design and cost-effectiveness – especially for images where subtle gradients in brightness are desired for aesthetic reasons or are not problematic.
💡 Now Request a quote or configure directly – individually for your project.
Individual request
Your individual inquiry to Primex
You would like to order a custom format or have a project.
As a manufacturer, we produce custom-made products for you!
We are happy to advise you on your projects and implement individual inquiries.
Print data
Print data & data check:
Please create your designs directly in the desired final format. For instructions on how to correctly prepare your print data, please refer to our data sheet.
Here's how to properly prepare your print data: Primex Print data.
We will of course carefully check your print data.
Should the resolution be insufficient for the desired print, we will contact you immediately to discuss the next steps together.
Assembly
Assembly & Construction
Our products are either delivered pre-assembled or are designed for easy and efficient assembly. Depending on the system, delivery is either as a finished unit or as a well-designed modular system that, in many cases, can be assembled without tools or with minimal tools.
For safe and smooth installation, we provide you with comprehensive functional descriptions, detailed assembly instructions, and, for selected systems, supplementary assembly videos. This allows for step-by-step assembly, even without specialized knowledge.
Why not visit our YouTube Channel with many useful assembly videos.
Professional installation service (optional)
Upon request, we can handle the entire installation for you. To ensure optimal on-site planning, please complete our installation checklist and send it to us. Based on this information, we will create a customized and binding quote for the project.
We draw on an experienced pool of professional installers – particularly in the DACH region and in selected other European countries. Many of our partners already have extensive experience with our systems, ensuring reliable, clean, and on-time implementation.
Formulate:
Thank you for your trust. If you have any questions regarding assembly, planning, or implementation, our team is always happy to advise you.
Downloads
Downloads & Product Data Sheets
Care instructions
Cleaning and care recommendations for frames
- Only use soft, non-abrasive cloths or rags.
- Important: The surfaces to be cleaned should be cleaned as gently as possible and then rinsed thoroughly with water, as residues of salts, acids or alkalis can cause corrosion.
- Rubbing can lead to the coating becoming dull.
- Powder-coated parts should only be stored dry.
- Standard pH-neutral household cleaning agents are suitable.
- Never use solvent-containing products, alcohols, thinners (e.g. nitro thinner), acetic acid or other acids.
- Under no circumstances use abrasive or scratching cleaning agents.
Care instructions for display textile prints "without LED"
- Washable at 30° (easy care), liquid color detergent, gentle spin cycle (max. 800 rpm)
- Ironing: On the reverse side at level 1 – 2
- Tumble dryer suitable (cold/lukewarm) Alternatively: Air dry spread out over a large area
- Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
- Store not below 10°C+ and not above 60°C+ at constant temperature
Care instructions for display textile prints with grey, white or black separating layer "Blockout"
- Not washable
- Do not iron
- Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
- Store not below 10°C+ and not above 60°C+ at constant temperature
Care instructions for backlit textile prints "with LED"
- Not washable
- Do not iron
- Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
- Store not below 10°C+ and not above 60°C+ at constant temperature
Care instructions for PVC tarpaulin prints
- Not washable
- Do not iron
- Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
- Store not below 10°C+ and not above 60°C+ at constant temperature
Disclaimer for care and cleaning recommendations
The care and cleaning recommendations provided by us have been developed and tested in consultation with the respective manufacturers of the raw materials used. Nevertheless, these statements serve exclusively as non-binding information based on our many years of experience.
Due to individual manufacturer tolerances, different cleaning agents, varying machines and deviating application conditions, Primex cannot assume any guarantee or liability for the actual suitability, effect or result of the recommended care and cleaning measures.
Any liability – regardless of the legal reason – is excluded. The responsibility for the selection, application and execution of suitable care and cleaning procedures lies exclusively with the user.
We ask for your understanding and thank you for your trust.
Change of subject
Tool-free motif change - we think ahead!
We love sustainability not only in the raw materials for our acoustic pictures, acoustic partitions, etc., but also think long-term. For this reason, we have opted for a frame system that allows for a motif change without having to replace the entire product. Easily adapt the aluminum frames to the season, design, or color concept. Our textile print is interchangeable thanks to the keder system. You don't even have to take the frame off the wall to change the motif. Changing the motif is child's play and, most importantly, no tools are needed.
How to change the motif:
- Remove the textile. Pull the existing tab forward and the textile will detach from the frame. Now you can carefully pull the textile off along the frame.
- Insert the new textile. You can watch our short video for this.
Reorder textile printing
