Tension frame profile, one side 55 mm

Tension frame profile, one side 55 mm

Product Advantages

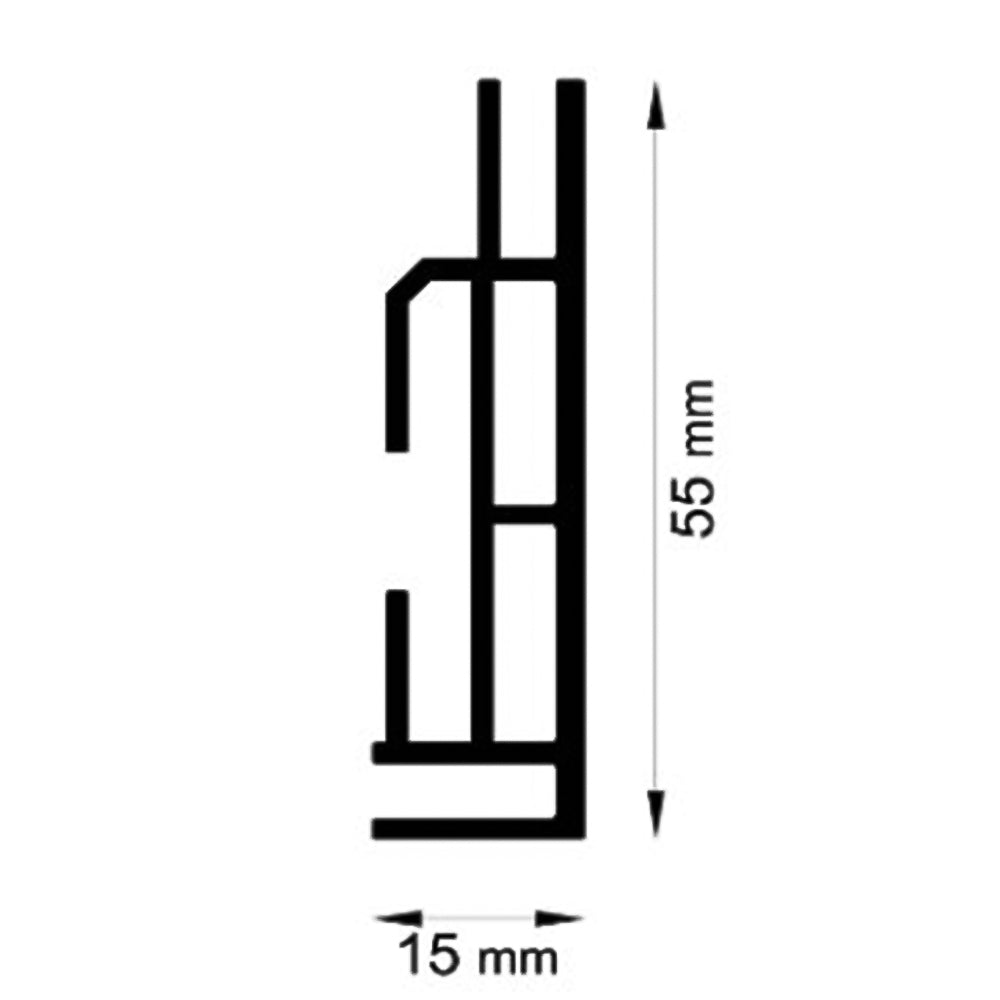

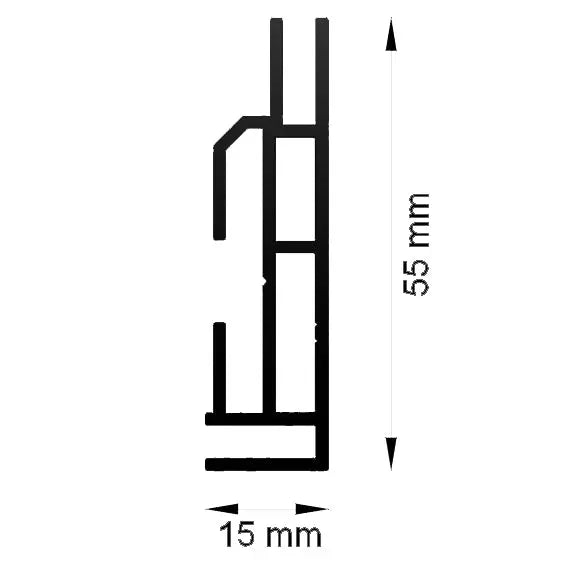

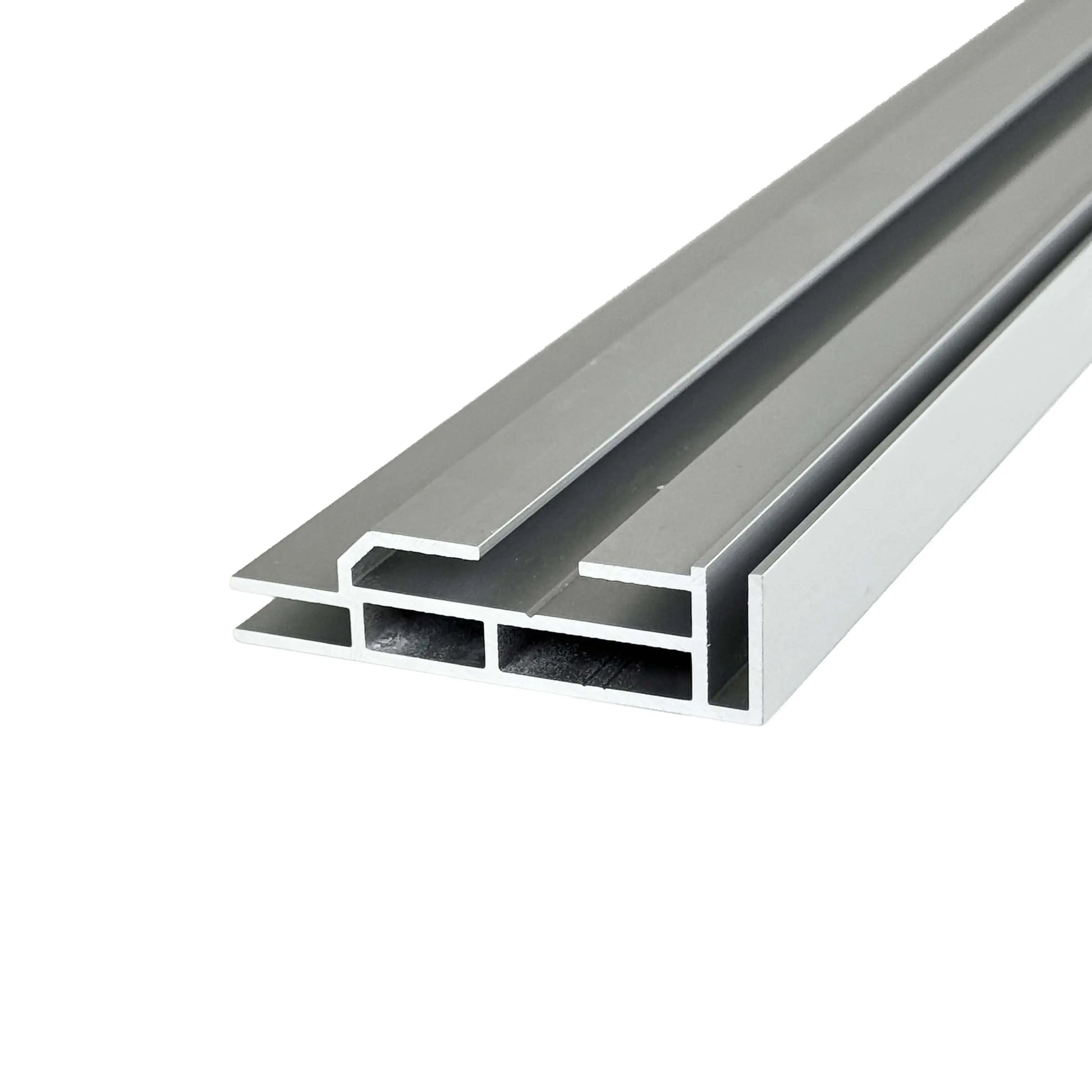

The Tension frame profile 55 mm one-sided This profile is the ideal solution for high-quality textile tension frames, banner prints, and narrow lightboxes in professional applications. With a depth of 55 mm, it is particularly suitable for compact frame solutions with single-sided textile covering.

A particular advantage of this profile is the integrated Groove for mounting a panel as a back panelThis makes the 55 mm tension frame profile ideal for constructions where a stable back panel, support plate or light guide is required – for example, in narrow LED light frames or high-quality banner prints.

The profile is designed for single-sided textile coverings and is compatible with keder dimensions of 10–14 x 3 mm. Thanks to the Flexibility (radius < 450 mm) Furthermore, curved constructions and individual shapes can be realized.

General Technical Details

• Profile type: Tension frame profile 55 mm, single-sided
• Material: Aluminium, stranggepresst
• Surface: Silver anodized according to DIN 17611 (EV6/EV1, E6/C-0)
• Optional: Powder coating in RAL colors possible

Dimensions & Weight:

• Profile length: 6.08 m (6.0 m net usable)
• Weight: approx. 0.77 kg / linear meter

Processing & Application:

• Biegbar: Radius < 450 mm
• Suitable for: single-sided textile covering
• Keder receptacle: 10–14 x 3 mm
• Packaging unit: 10 pieces

certifications

The 55 mm tension frame profile is manufactured according to the relevant industry standards:

• DIN EN 12020-2 (Aluminium extruded profiles)
• DIN 17611 (Anodizing surface finishing)

These standards guarantee consistently high quality, dimensional accuracy and long-lasting surface durability.

Applications of the 55 mm tension frame profile

The Tension frame profile 55 mm one-sided is ideally suited for versatile applications in the field of textile and lighting systems:

• Exhibition stand construction: Stable frames for banner prints and large-format graphics
• Retail & Shopfitting: High-quality brand presentations and lightboxes
• Light frame (LED): Narrow lighting systems with homogeneous illumination
• Interior Design: Wall designs, acoustic solutions and decorative elements
• Commercial and office areas: Modern tension frames for visual communication
• Advertising technology: Interchangeable banners and textile prints

The combination of stability, flexibility and LED suitability makes the profile particularly versatile.

Conclusion

The Tension frame profile 55 mm one-sided It impresses with maximum stability, precise workmanship, and versatile application possibilities. It is the perfect choice for large-format and durable textile tension frames in professional environments. With the 55 mm tension frame profile, you are choosing quality, flexibility, and a high-quality presentation of your content.

shipping

We ship our tension frame profiles on pallets (610 x 80 cm). You can order as many profiles as you like, always paying at least for half a pallet (610 x 40 cm), and up to a full pallet depending on the quantity.

Please note that the goods must be unloaded using a forklift.
