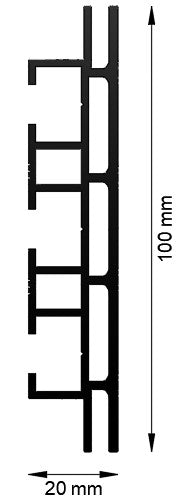

Double-sided tension frame profile 100 mm

Double-sided tension frame profile 100 mm

Product Advantages

The Double-sided tension frame profile 100 mm This is the premium solution for large-format, freestanding, and illuminated textile tension frames in professional applications. Thanks to its extra-large depth, the tension frame profile offers 100 mm of double-sided stability and is ideal for demanding indoor and outdoor constructions.

The double-sided design allows for the effective presentation of two images simultaneously and ensures maximum visibility from all angles. The suitability of the 100 mm double-sided tension frame profile for use with LED technology is particularly noteworthy: it is ideally suited for retrofitting or integrating LED systems, thus providing the perfect foundation for high-quality displays. Light frame.

Manufactured using a precise extrusion process, the profile impresses with its exceptional dimensional accuracy and workmanship. The silver anodized surface, conforming to DIN 17611 (EV6/EV1, now E6/C-0), provides reliable protection against corrosion and ensures a durable, high-quality appearance.

Optionally, the tension frame profile can be coated on both sides (100 mm) in any desired RAL color, allowing it to be flexibly adapted to individual design and brand requirements.

General Technical Details

• Profile type: Double-sided tension frame profile 100 mm
• Material: Aluminium, stranggepresst
• Surface: Silver anodized according to DIN 17611 (EV6/EV1, E6/C-0)
• Optional: Powder coating in RAL colors possible





Dimensions & Weight:

• Profile length: 6.08 m (6.0 m net usable)
• Weight: approx. 1.58 kg / linear meter

Processing & Application:

• Suitable for: double-sided textile covering
• Keder receptacle: 10–14 x 3 mm
• Packaging unit: 2 pieces

certifications

The double-sided 100 mm tension frame profile is manufactured according to the relevant industry standards:

• DIN EN 12020-2 (Aluminium extruded profiles)
• DIN 17611 (Anodizing surface finishing)

These standards guarantee the highest quality, dimensional accuracy and long-lasting surface durability.

Applications the tension frame profile 100 mm

The Double-sided tension frame profile 100 mm is ideal for demanding and large-format applications in the field of textile tensioning systems and lighting solutions:

• Light frame (LED): Perfect for integrating or retrofitting LED modules for uniform backlighting indoors and outdoors.
• Exhibition stand construction: Large-format, freestanding displays with maximum long-range impact
• Retail & Shopfitting: High-quality, illuminated brand presentations
• Interior & Architecture: Light walls, room dividers and design-oriented lighting systems
• Advertising technology: Double-sided, illuminated textile prints for maximum attention

Due to its large installation depth, the double-sided 100 mm tension frame profile is particularly suitable for high-intensity applications and homogeneous illumination.

Conclusion regarding the 100 mm tension frame profile

The Double-sided tension frame profile 100 mm This is the ideal choice for anyone wanting to create large-format, stable, and illuminated textile tension frames. It combines maximum stability, high-quality workmanship, and optimal conditions for LED lightboxes in both indoor and outdoor applications. With the 100 mm double-sided tension frame profile, you're choosing a high-performance solution for modern, eye-catching presentations.

shipping

We ship our profiles on pallets (610 x 80 cm). You can order as many profiles as you like, always paying at least for half a pallet (610 x 40 cm), and up to a full pallet depending on the quantity.

Please note that the goods must be unloaded using a forklift.
