Round Acoustic Panel - 19 mm

Round Acoustic Panel - 19 mm

  • Slim and elegant for wall mounting
  • Brilliant custom fabric banner
  • Oeko-TEX®100 certified


The round acoustic picture – 19 mm combines modern design with subtle acoustic effect and integrates harmoniously into various room concepts. The slim construction noticeably reduces reverberation and creates a more pleasant room acoustics. Thanks to the replaceable fabric banner and individual design, it becomes a stylish design element for offices, living areas, and public spaces.
473,03€
473,03€
Sale Sold out
(including Shipping)
  • Free shipping
  • Secure Delivery:10 - 15 business days
  • Quality from Germany – for over 25 years
Leafroomfungus:

Round acoustic panel in selected version, fabric banner

  • American Express
  • Apple Pay
  • Bancontact
  • EPS
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Book for free
Personal Consultation & Planning
  • Holistic planning from concept to implementation
  • Personal. Direct. Reliable
  • Ideas & innovative solutions with experience & passion
Arrange a free appointment
View full details
Description
Individual Request
Print data
Assembly
Care instructions
Change of subject
Description

Round Acoustic Panel - 19 mm in Slim Design for subtle acoustic improvement in a round shape

A round acoustic panel – 19 mm combines an especially slim construction with a modern, soft design language. It is the ideal solution for those who want to combine subtle room acoustics improvement with stylish design.

With its shallow depth of only 19 mm, the round acoustic panel blends unobtrusively into any environment while providing a noticeable reduction of reverberation and disturbing noises. Depending on the installation, it achieves sound absorber class B or C and is especially suitable for rooms with moderate acoustic needs.

The customizable motif makes a round acoustic panel a decorative design element that harmoniously combines function and design.

Product Benefits

  • Ultra Slim Design: Only 19 mm depth for subtle integration
  • Round Design: Modern, soft shape for a special spatial effect
  • Acoustically effective: Sound absorber class B or C depending on installation
  • Customizable: Free choice of motif for creative room concepts
  • Flexibly replaceable: Fabric print can be changed anytime without tools
  • High-quality materials: Aluminum frame, silver anodized, optionally RAL powder-coated
  • Easy installation: Direct wall mounting without additional wall brackets
  • Fire protection tested: B1 according to DIN 4102

Individual design for every room

Our round acoustic panel offers a unique combination of acoustic function and design freedom. Your desired motif is printed in high quality on the fabric banner, creating a harmonious, modern look.

The round shape creates a visual relaxation in the room, which can be ideally combined with existing interior design concepts. The fabric banner can be easily replaced at any time, ensuring maximum flexibility in room design.

General Technical Details

  • Installation depth: 19 mm
  • Material: Aluminum profile, silver anodized
  • Optional: Powder coating available in RAL colors

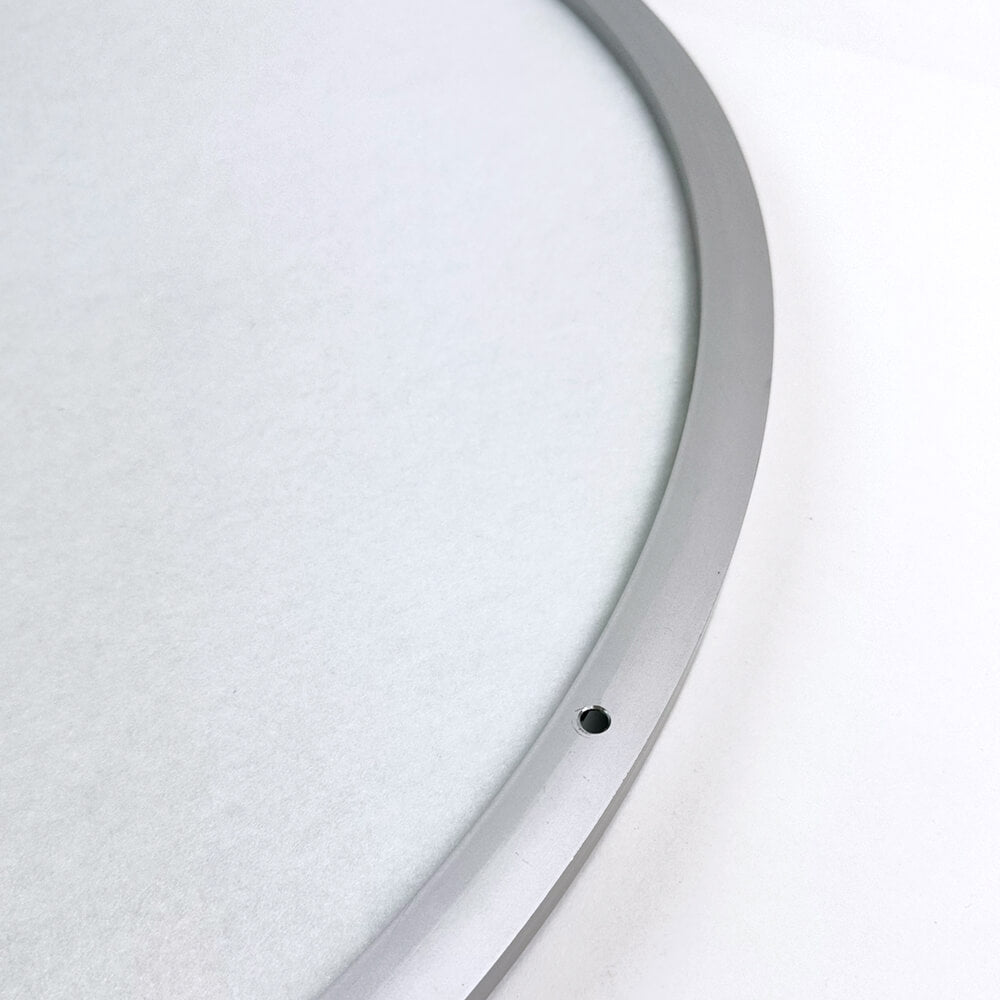

  • Installation: Direct wall mounting without wall brackets
  • Shipping:
    - Up to Ø 150 cm fully assembled
    - Larger formats disassembled
  • Format: Standard diameter or custom desired formats

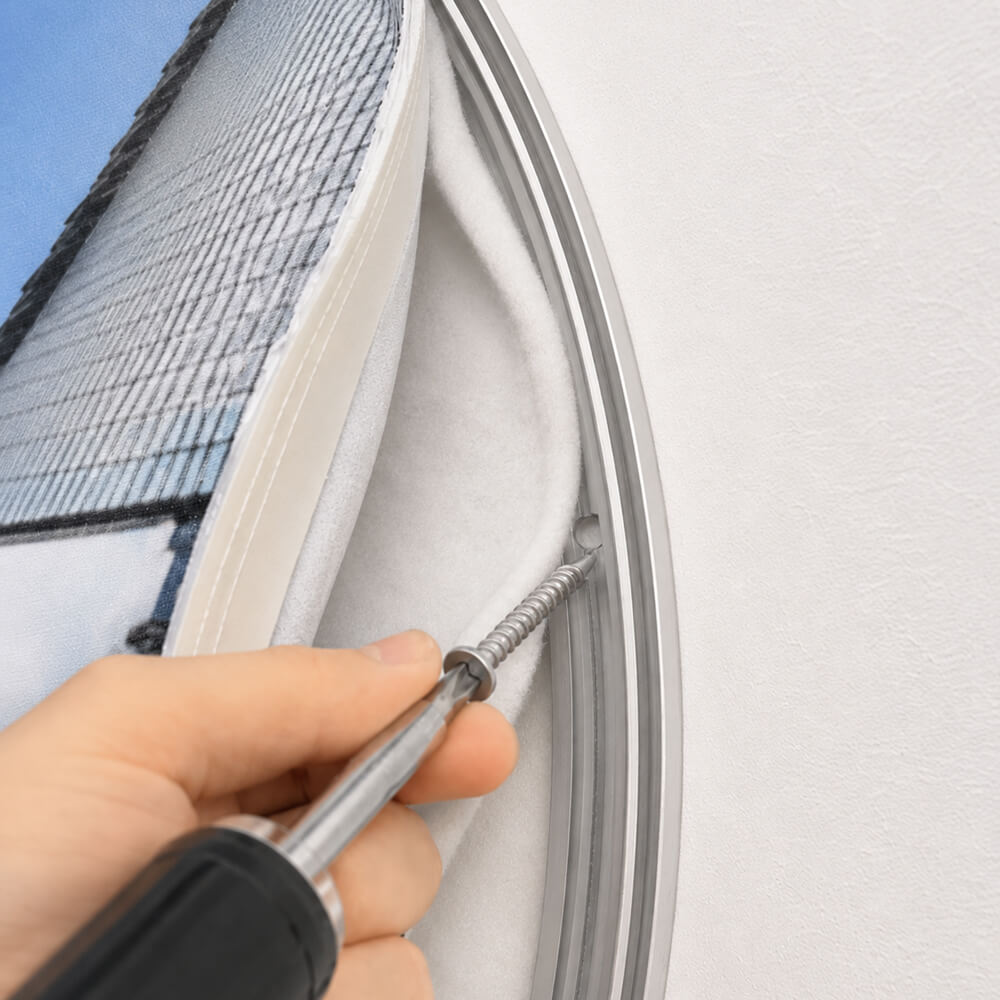

   Einfache Montage runder Primex Textilspannrahmen mit 19 mm Profiltiefe

Certifications

  • Sound absorber class:
    - Class C with direct wall mounting
    - Class B with wall distance
  • Fire protection: B1 according to DIN 4102
  • Materials:
    - Acoustic material Öko-TEX®100 certified
    - Allergy-friendly, low emission, and recyclable

Acoustically optimized fabric banner for round acoustic panels

  • High-quality fabric banner according to individual design template
  • Brilliant colors and razor-sharp print quality
  • Quick design change with tool-free system
  • Sound-transparent textile to support acoustic effect
  • Matte, low-reflection surface for an elegant look
  • Ideal for round, modern design concepts

Application possibilities

Optimal room acoustics in any space
The round acoustic image is ideal for rooms with moderate acoustic needs and high design standards:

  • Living spaces and home offices: Subtle integration while improving acoustics
  • Offices and meeting areas: Optimizes room acoustics and visually loosens up the room design
  • Practices and healthcare areas: Calmer atmosphere without a technical character
  • Reception areas and public spaces: Stylish combination of design and functional acoustic solution

Conclusion

Round acoustic panel – 19 mm is the perfect choice for those seeking a subtle, stylish, and functional acoustic solution.

With its slim design, modern round shape, and flexible customization options, it offers an ideal combination of design and acoustic enhancement – perfect for living spaces, offices, and public areas.

Individual request

Your individual inquiry to Primex

You would like to order a custom format or have a project.

As a manufacturer, we produce custom-made products for you!

We are happy to advise you on your projects and implement individual inquiries.

Call
Print data

Print data & data check:

Please create your designs directly in the desired final format. For instructions on how to correctly prepare your print data, please refer to our data sheet.

Here's how to properly prepare your print data: Primex Print data.

We will of course carefully check your print data.

Should the resolution be insufficient for the desired print, we will contact you immediately to discuss the next steps together.

DOWNLOAD Print Data Guidelines
Assembly

Assembly & Construction

Our products are either delivered pre-assembled or are designed for easy and efficient assembly. Depending on the system, delivery is either as a finished unit or as a well-designed modular system that, in many cases, can be assembled without tools or with minimal tools.

For safe and smooth installation, we provide you with comprehensive functional descriptions, detailed assembly instructions, and, for selected systems, supplementary assembly videos. This allows for step-by-step assembly, even without specialized knowledge.

Why not visit our YouTube Channel with many useful assembly videos.

Professional installation service (optional)

Upon request, we can handle the entire installation for you. To ensure optimal on-site planning, please complete our installation checklist and send it to us. Based on this information, we will create a customized and binding quote for the project.

We draw on an experienced pool of professional installers – particularly in the DACH region and in selected other European countries. Many of our partners already have extensive experience with our systems, ensuring reliable, clean, and on-time implementation.

Formulate:

Thank you for your trust. If you have any questions regarding assembly, planning, or implementation, our team is always happy to advise you.

Downloads

Downloads & Product Data Sheets

Care instructions

Cleaning and care recommendations for frames

  • Only use soft, non-abrasive cloths or rags.
  • Important: The surfaces to be cleaned should be cleaned as gently as possible and then rinsed thoroughly with water, as residues of salts, acids or alkalis can cause corrosion.
  • Rubbing can lead to the coating becoming dull.
  • Powder-coated parts should only be stored dry.
  • Standard pH-neutral household cleaning agents are suitable.
  • Never use solvent-containing products, alcohols, thinners (e.g. nitro thinner), acetic acid or other acids.
  • Under no circumstances use abrasive or scratching cleaning agents.

Care instructions for display textile prints "without LED"

  • Washable at 30° (easy care), liquid color detergent, gentle spin cycle (max. 800 rpm)
  • Ironing: On the reverse side at level 1 – 2
  • Tumble dryer suitable (cold/lukewarm) Alternatively: Air dry spread out over a large area
  • Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
  • Store not below 10°C+ and not above 60°C+ at constant temperature

Care instructions for display textile prints with grey, white or black separating layer "Blockout"

  • Not washable
  • Do not iron
  • Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
  • Store not below 10°C+ and not above 60°C+ at constant temperature

Care instructions for backlit textile prints "with LED"

  • Not washable
  • Do not iron
  • Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
  • Store not below 10°C+ and not above 60°C+ at constant temperature

Care instructions for PVC tarpaulin prints

  • Not washable
  • Do not iron
  • Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
  • Store not below 10°C+ and not above 60°C+ at constant temperature

Disclaimer for care and cleaning recommendations

The care and cleaning recommendations provided by us have been developed and tested in consultation with the respective manufacturers of the raw materials used. Nevertheless, these statements serve exclusively as non-binding information based on our many years of experience.

Due to individual manufacturer tolerances, different cleaning agents, varying machines and deviating application conditions, Primex cannot assume any guarantee or liability for the actual suitability, effect or result of the recommended care and cleaning measures.

Any liability – regardless of the legal reason – is excluded. The responsibility for the selection, application and execution of suitable care and cleaning procedures lies exclusively with the user.

We ask for your understanding and thank you for your trust.

Change of subject

Tool-free motif change - we think ahead!

We love sustainability not only in the raw materials for our acoustic pictures, acoustic partitions, etc., but also think long-term. For this reason, we have opted for a frame system that allows for a motif change without having to replace the entire product. Easily adapt the aluminum frames to the season, design, or color concept. Our textile print is interchangeable thanks to the keder system. You don't even have to take the frame off the wall to change the motif. Changing the motif is child's play and, most importantly, no tools are needed.

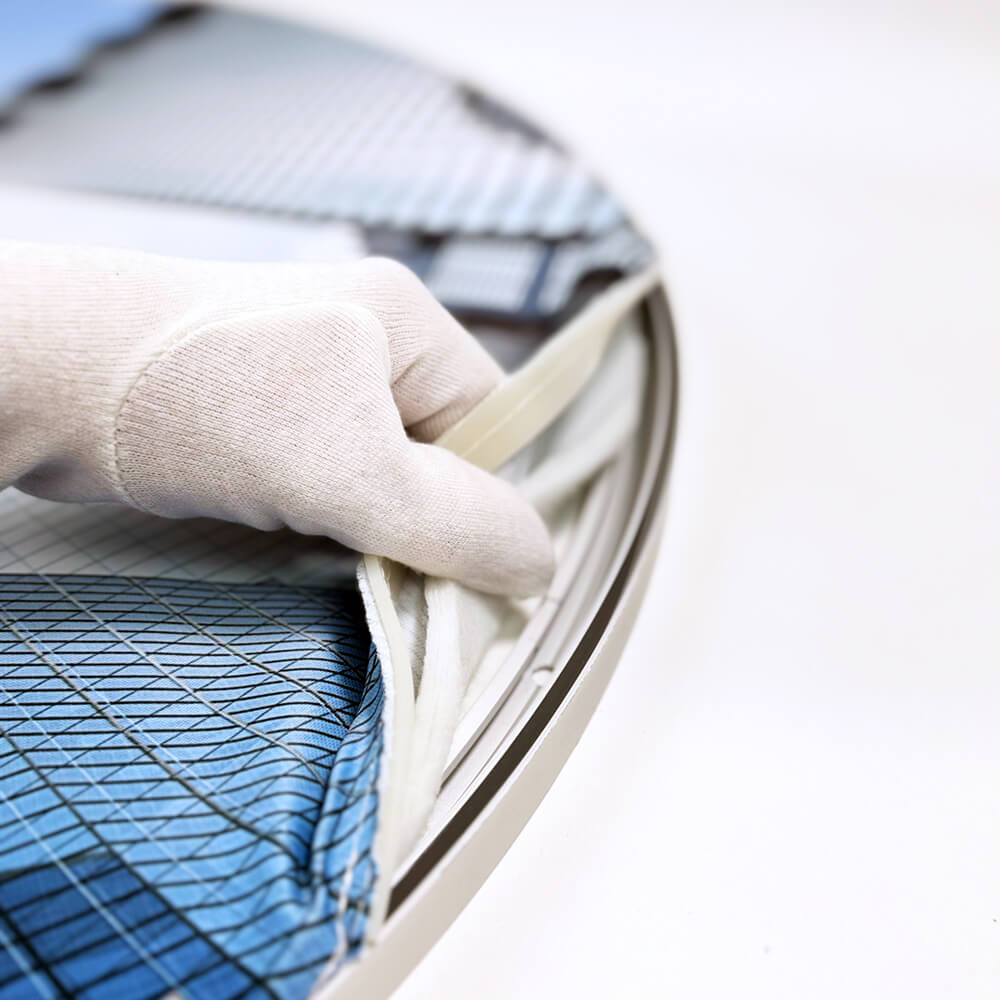

How to change the motif:

  • Remove the textile. Pull the existing tab forward and the textile will detach from the frame. Now you can carefully pull the textile off along the frame.
  • Insert the new textile. You can watch our short video for this.
Reorder textile printing

FAQ

Für welche Räume ist das runde Akustikbild mit 19 mm Bautiefe geeignet?

Das 19-mm-System ist für Räume mit moderatem akustischem Bedarf konzipiert. Es eignet sich besonders für Wohnräume, Homeoffice-Bereiche, kleinere Büros, Besprechungszonen, Praxen oder Empfangsbereiche.
Durch die geringe Bautiefe steht eine dezente, flache Integration im Vordergrund – ideal für Raumkonzepte, bei denen Gestaltung und Zurückhaltung wichtiger sind als maximale Schallabsorption.

Welche akustische Leistung wird erreicht?

Die akustische Wirkung hängt von der Montageart ab:
• Schallabsorberklasse C bei direkter Wandmontage
• Schallabsorberklasse B bei zusätzlichem Wandabstand
Das System reduziert Nachhall und verbessert die Sprachverständlichkeit deutlich, ersetzt jedoch keine großvolumigen Akustiklösungen für stark lärmbelastete Räume.

Entspricht das Akustikbild den Brandschutzanforderungen?

Ja. Das System erfüllt die Brandschutzklasse B1 nach DIN 4102 (schwer entflammbar).
Damit ist es für öffentliche Bereiche wie Büros, Praxen oder Empfangszonen geeignet. Zusätzlich ist das eingesetzte Akustikmaterial Öko-TEX®100 zertifiziert, emissionsarm, allergikerfreundlich und recyclingfähig.

Wie wird das runde Akustikbild montiert?

Das Akustikbild wird direkt an der Wand befestigt und benötigt keine aufwendige Unterkonstruktion.
Bis Ø 150 cm erfolgt die Lieferung fertig montiert, was die Installation besonders einfach macht. Größere Formate werden demontiert geliefert und lassen sich mit wenigen Handgriffen zusammensetzen. Schrauben und Dübel sind abhängig vom Untergrund bauseits auszuwählen.

Kann das Motiv später ausgetauscht werden?

Ja. Der Stoffbanner ist über ein integriertes Keder-System werkzeuglos austauschbar.
So kann das Motiv jederzeit an neue Farbkonzepte, saisonale Gestaltungen oder veränderte Corporate-Design-Vorgaben angepasst werden, ohne den Aluminiumrahmen ersetzen zu müssen.

Beeinflusst der Stoffbanner die akustische Funktion?

Nein. Das eingesetzte Textil ist akustisch durchlässig. Der Schall kann ungehindert in das dahinterliegende Absorbermaterial eindringen.
Voraussetzung ist die Verwendung des speziell abgestimmten Drucktextils, das bei diesem System standardmäßig eingesetzt wird.

Wie unterscheidet sich das 19-mm-System von stärkeren Akustikrahmen?

Das 19-mm-Akustikbild ist bewusst als Slim-Lösung konzipiert. Der Fokus liegt auf geringer Bautiefe und dezenter Optik.
Stärkere Systeme mit z. B. 55 mm Bautiefe erreichen höhere Schallabsorberklassen und eignen sich für Konferenzräume, Großraumbüros oder stark hallende Bereiche. Das 19-mm-System hingegen ist optimal für ergänzende oder moderate Akustikmaßnahmen.

Welche Formate sind möglich?

Es sind Standard-Durchmesser sowie individuelle Wunschformate realisierbar.
Gerade bei runden Formen werden Maße projektbezogen gefertigt. Auch größere Durchmesser können umgesetzt werden – diese werden aus logistischen Gründen demontiert geliefert.

Welche Anforderungen gelten für die Druckdaten?

Die Motive sollten im gewünschten Endformat angelegt werden. Alternativ können auch quadratische Bilddateien bereitgestellt werden – der runde Zuschnitt wird entsprechend angepasst.
Die Druckdaten werden vor Produktion sorgfältig geprüft. Sollte die Auflösung nicht ausreichen, erfolgt eine Rückmeldung zur Abstimmung der weiteren Vorgehensweise.

Welche gestalterischen Vorteile bietet die runde Form?

Die kreisrunde Geometrie sorgt für eine weichere, harmonische Raumwirkung als rechteckige Elemente.
Sie lockert lineare Architektur auf, wirkt weniger technisch und lässt sich sowohl als dezentes Gestaltungselement als auch als bewusstes Design-Statement einsetzen. In Kombination mit individueller Motivwahl entsteht eine akustisch wirksame Lösung mit klarer gestalterischer Aussage.
