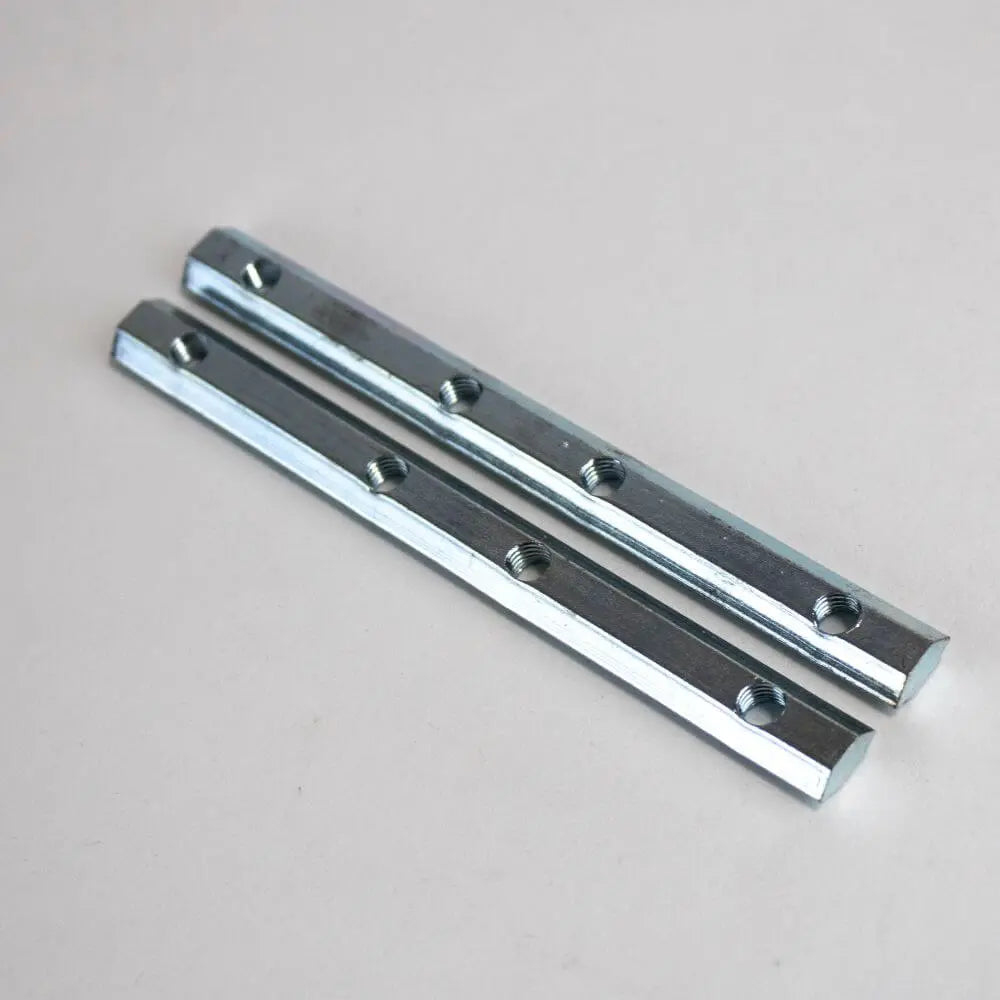

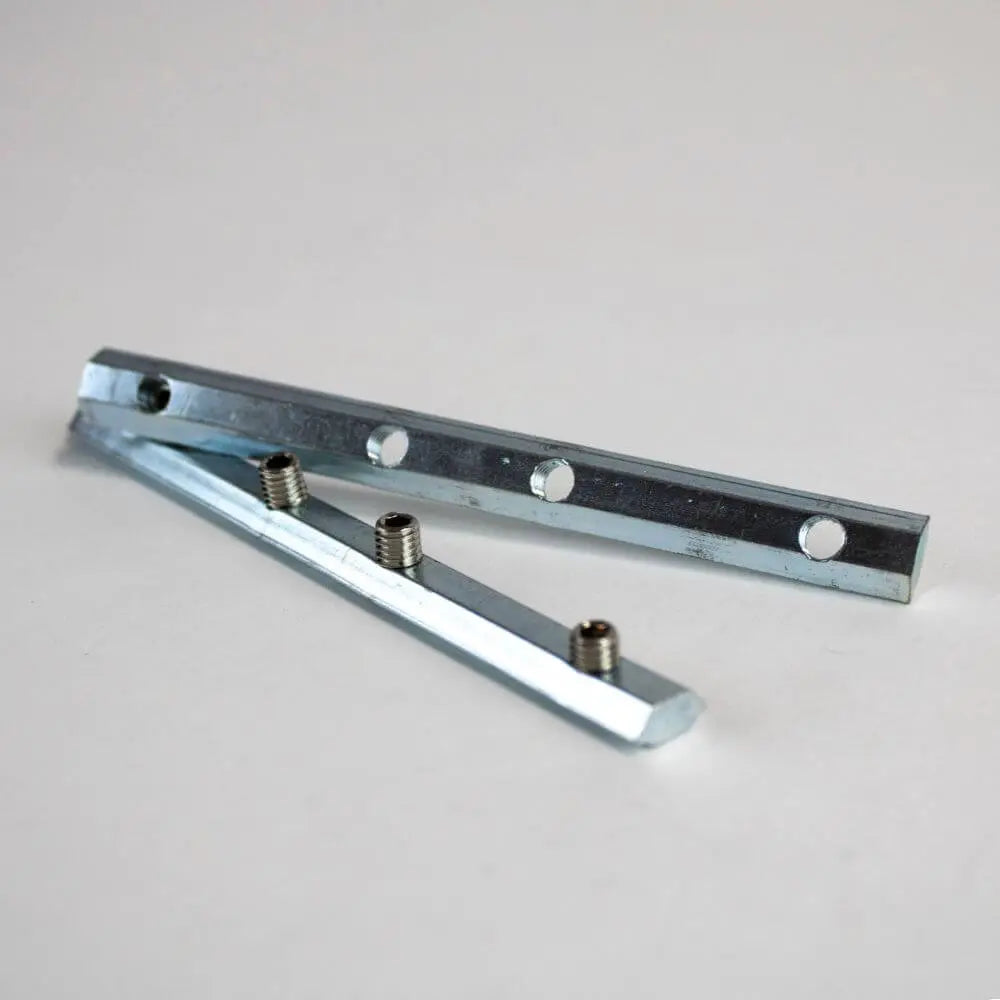

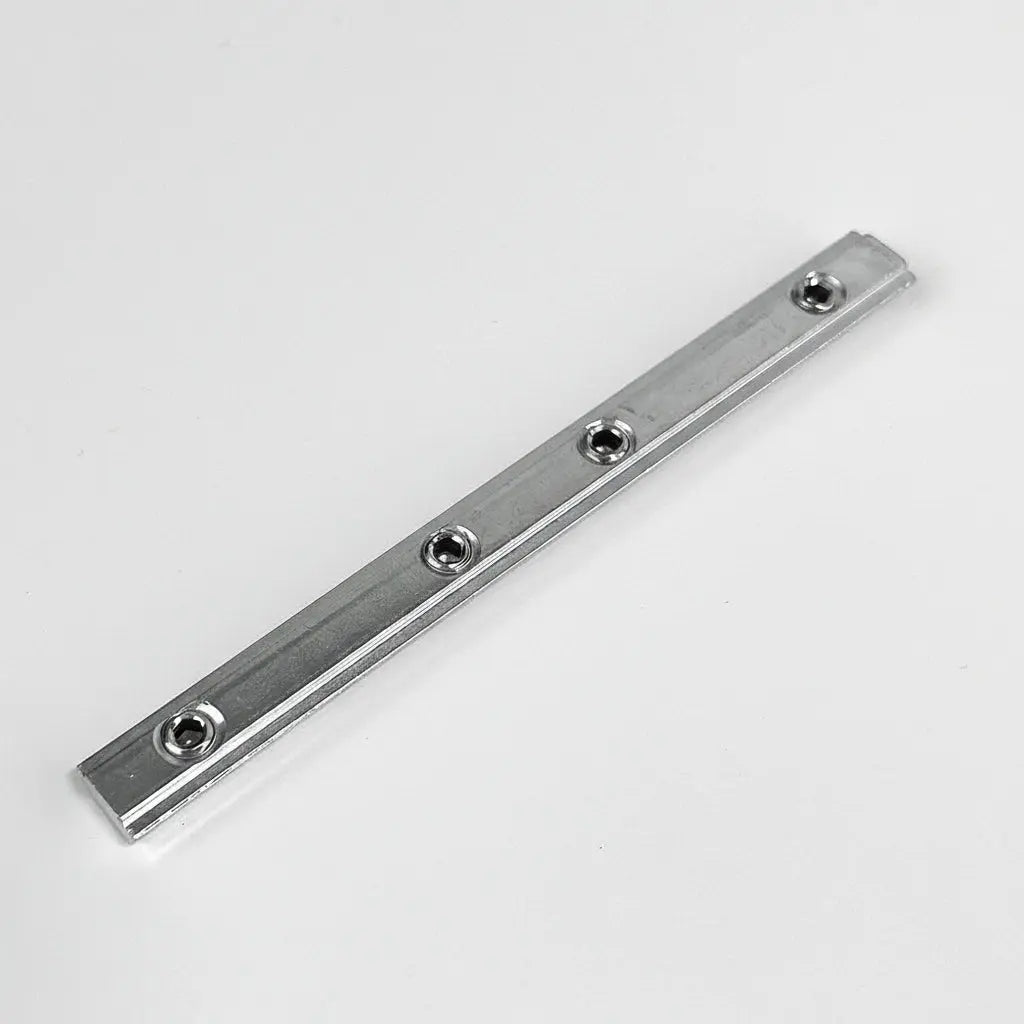

Straight profile connectors for 19 mm textile tension frames

Straight profile connectors for 19 mm textile tension frames – secure connection for extended frame constructions

The straight profile connector for 19 mm textile tension frames was specially developed for the secure connection of profiles. It enables the stable extension of individual frame elements and supports a clean and precise frame construction.

Made of steel, the profile connector impresses with its high stability and reliable connection. Its flat design ensures easy integration into the frame system.

Product advantages at a glance

• Suitable for 19 mm textile tension frames

• Straight connection of frame elements

• Flat and stable design made of steel

• Secure fastening with grub screws

• Easy and quick assembly

• Supports precise frame constructions

• Ideal for extended frame systems


General technical data of the profile connector

• Design: Straight, flat steel profile connector

• Suitable for: 19 mm textile tension frames
• Connection: Grub screw M5 × 4 mm
• Scope of delivery per profile connector: 1 piece with 4 grub screws
• Packaging unit: 2 pieces
• Weight per set: 0.04 kg

Construction of the profile connector

The profile connector is inserted into the designated areas of the profiles and securely joins them together. Fastening via set screws ensures a stable connection and supports precise alignment of the frame structure.

The simple design allows for quick assembly and is ideal for individual frame sizes.

areas of application

Textile tension frame
Ideal for connecting and extending frame elements.

Large-format frame constructions
Suitable for frames with larger dimensions and additional profile segments.

Exhibition stand construction
Perfect for textile presentation surfaces and modular frame systems.

Shopfitting & Retail
Ideal for individual presentation solutions and brand staging.

Conclusion

The straight profile connector for 19 mm textile tension frames is the ideal solution for stable and precise profile connections. Its robust steel construction and easy assembly make it perfect for professional textile tension frame constructions.
