RGBW luminous ceiling in a 100 mm profile
RGBW luminous ceiling in a 100 mm profile
Regular price
0,00€
Regular price
Sale price
0,00€
(including
Shipping)
Couldn't load pickup availability
Free shipping
- Secure Delivery:10 - 15 days
- Quality from Germany – for over 25 years
Leafroomfungus:
Book for free
Personal Consultation & Planning
Description
RGBW luminous ceiling in a 100 mm profile
The RGBW luminous ceiling in a 100 mm profile depth combines homogeneous surface lighting with state-of-the-art RGBW technology. In addition to classic white light, virtually unlimited color worlds can be created – from subtle mood lighting to vibrant color accents. The combination of RGB and white enables brilliant color reproduction as well as neutral task lighting.
Technical performance data – RGBW luminous ceilings
Our RGBW luminous ceilings combine color-dynamic lighting design with high energy efficiency and brilliant illumination.
The actual power consumption may vary slightly depending on the size of the RGBW light ceiling and the chosen color.
The values given below refer to the maximum power consumption at full power (at a mains voltage of 230 V).
The values given below refer to the maximum power consumption at full power (at a mains voltage of 230 V).
When the ceiling light is dimmed, energy consumption is reduced accordingly.
- Luminous flux in lumens per m²: approx. 970 lm (red), approx. 1,900 lm (yellow), approx. 490 lm (green), approx. 3,150 lm (white)
- Power: 160-200 W/m²;
150 × 200 cm: Current or current draw: approx. 2.6 A
200 × 300 cm: Current or current draw: approx. 4.35 A
250 × 500 cm: Current or current draw: approx. 8.7 A

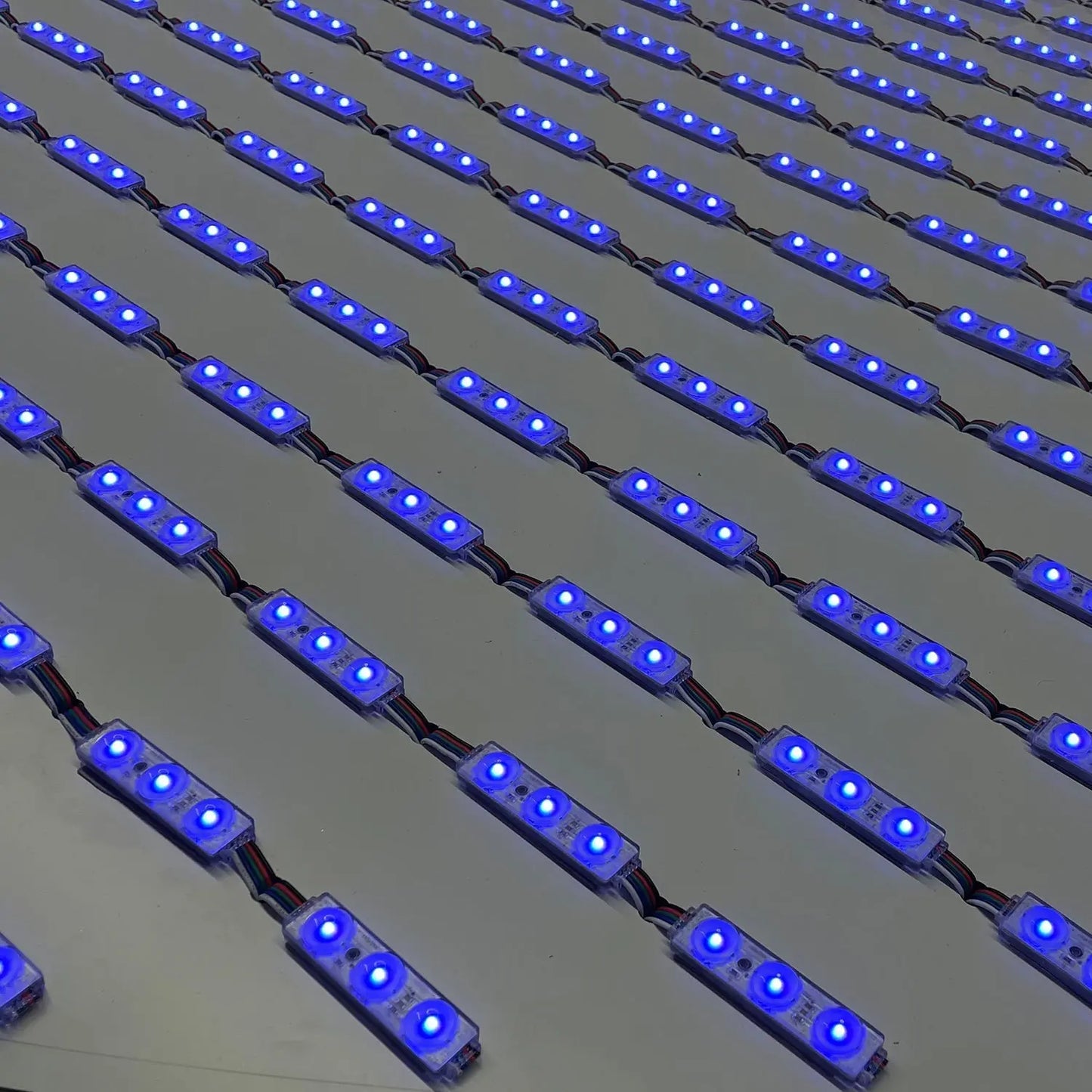

Advantages & Features![]()

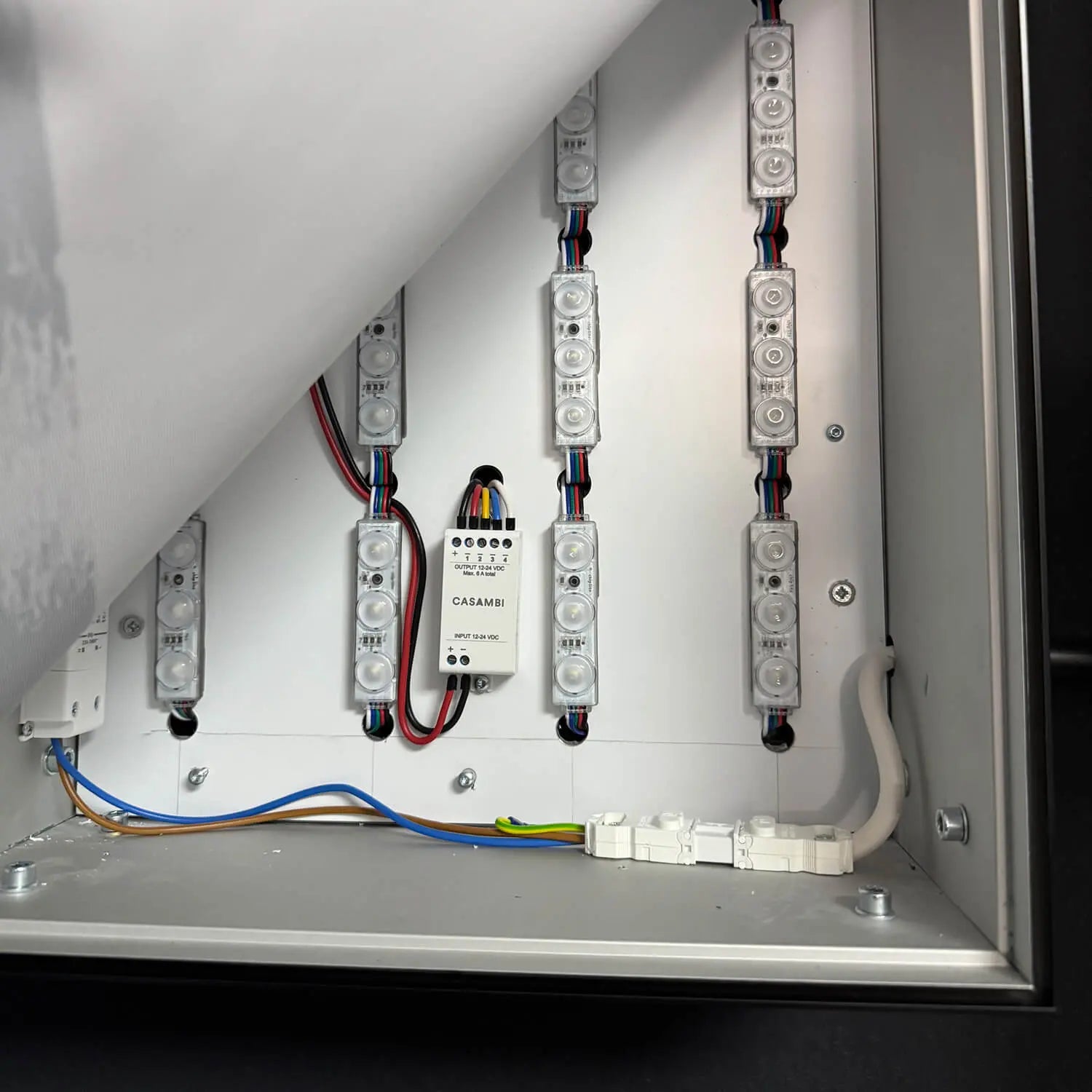

- RGBW technology: Combination of RGB colors and high-quality white light
- Unlimited color variety: Freely selectable scenarios, from subtle accent lighting to strong moods
- Homogeneous surface light: Uniform illumination without visible light points
- 100 mm installation depth: Compact solution for versatile applications
- Flexible control: DALI, Casambi, DMX or app/smart home for color and white light control
- Sustainable: Textiles with diffusion layer, replaceable without tools, Oeko-Tex Standard 100 certified
- Partial printing recommended: Print CI/design elements only partially for a brilliant lighting effect.
- Efficient & durable: High-quality brand LEDs for long lifespan
- Special forms: Round, curved, or freeform shapes are also available upon request.
areas of application
- Retail & Showrooms: Colorful accents for sales-boosting displays

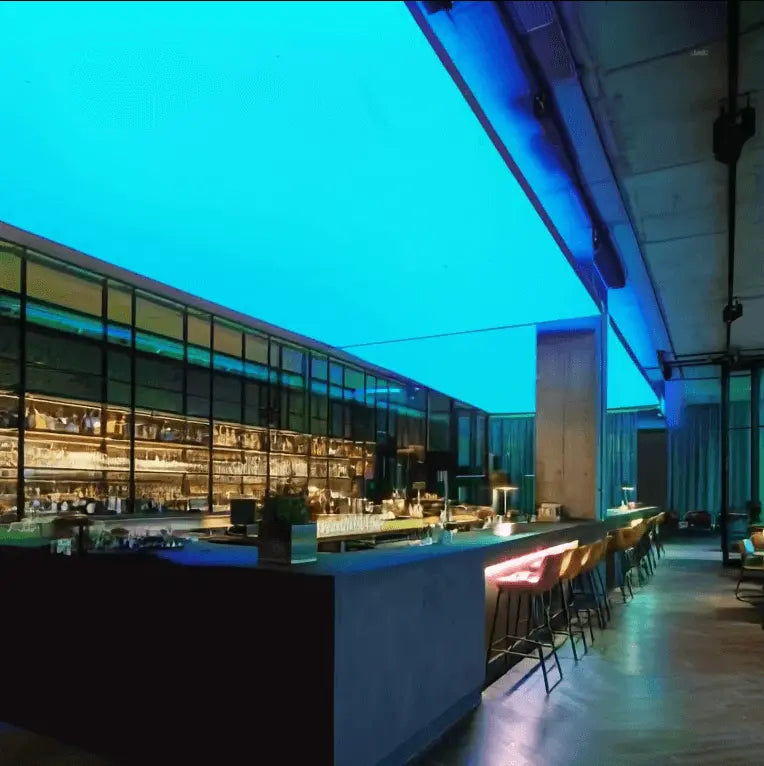

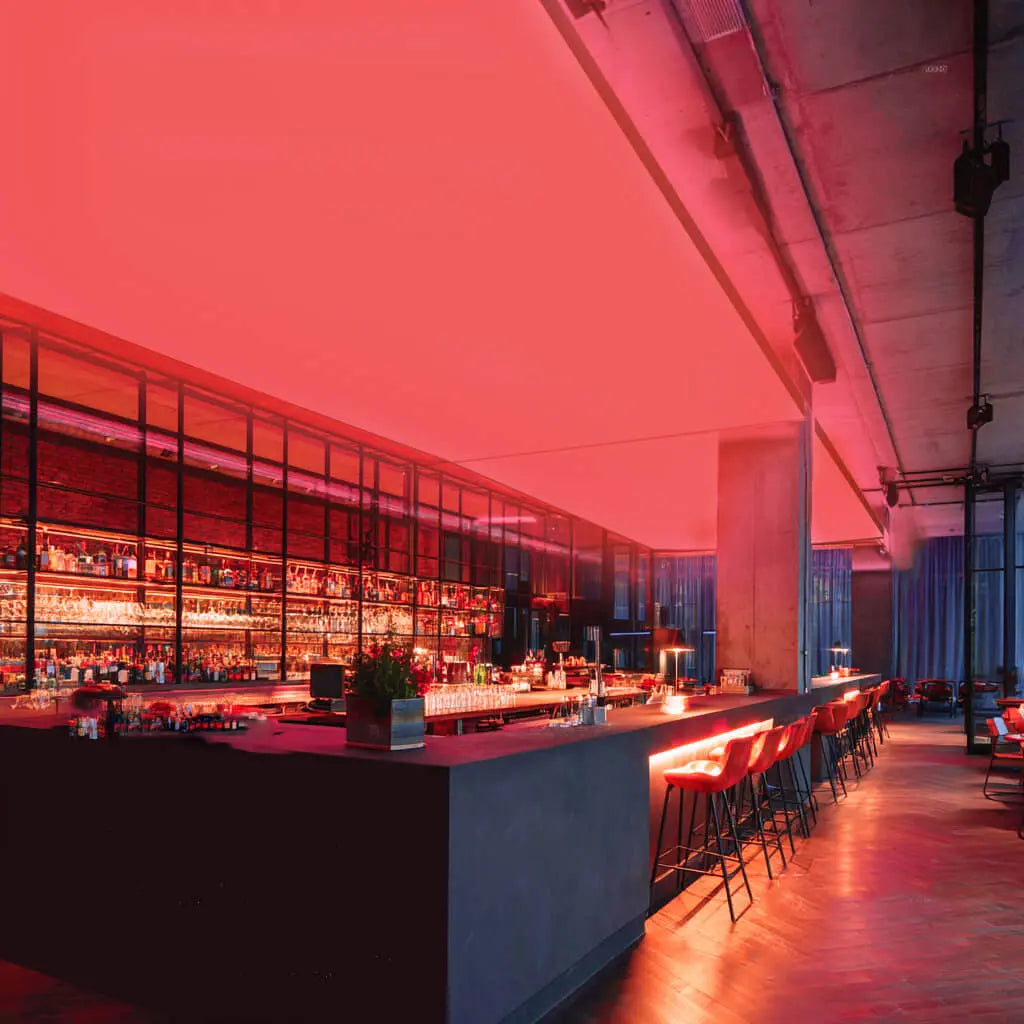

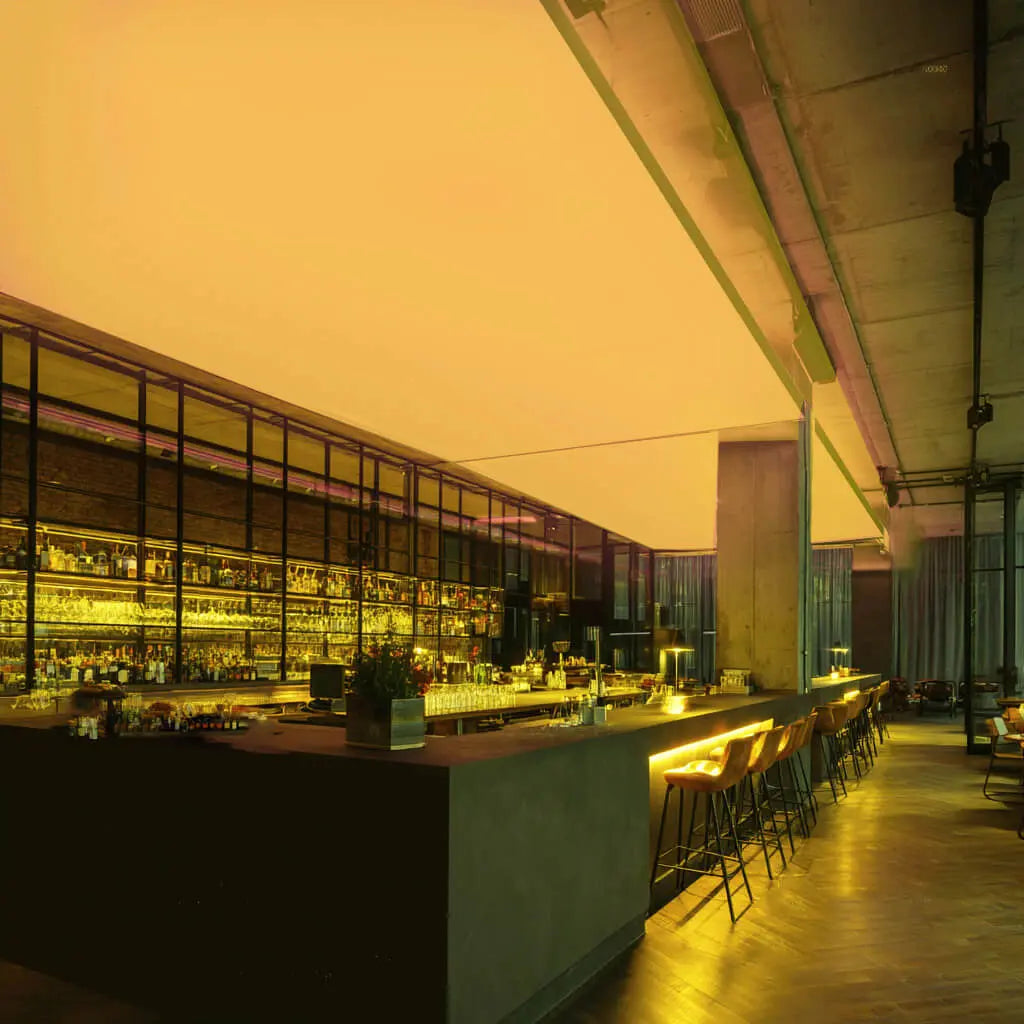

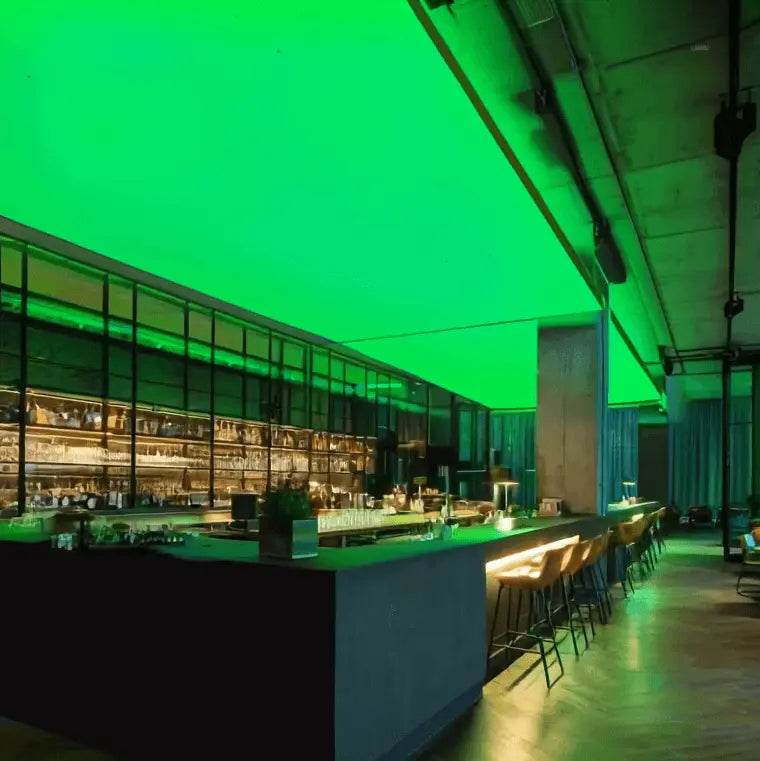

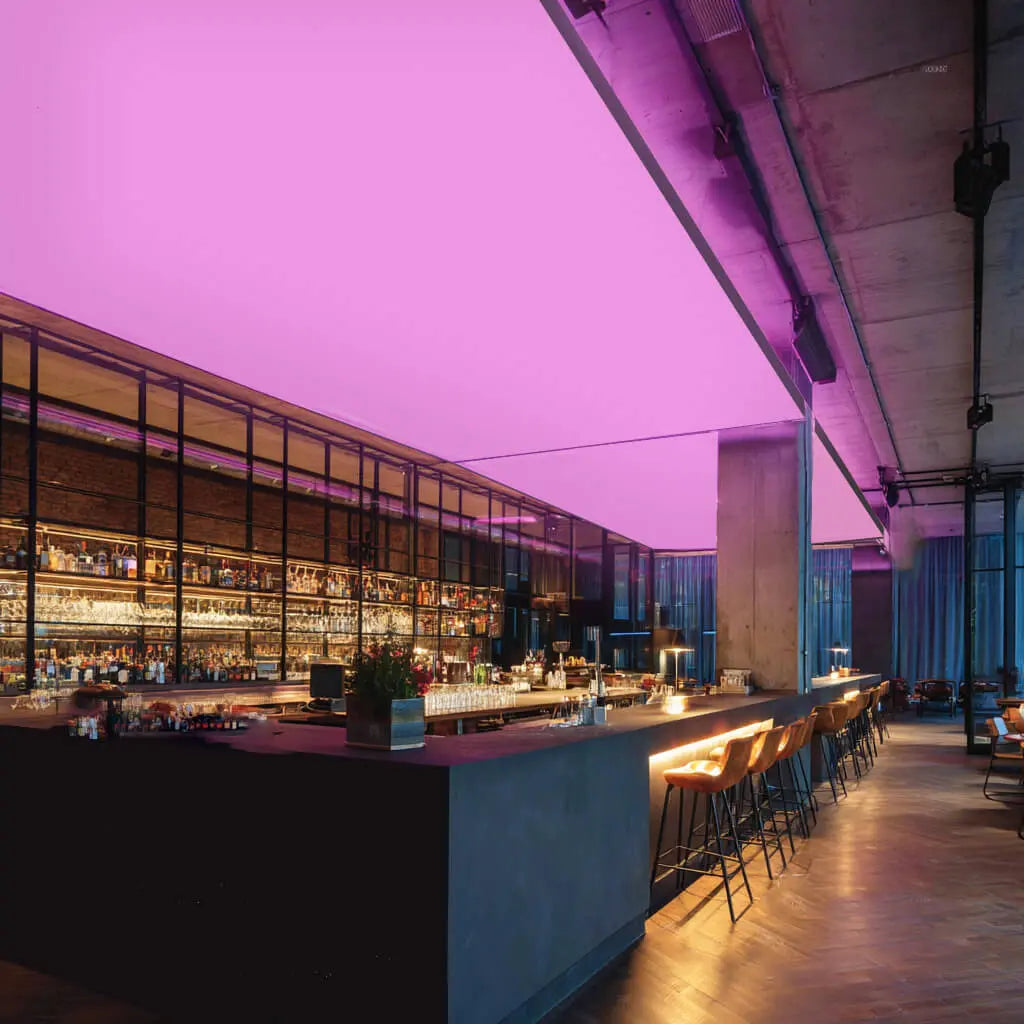

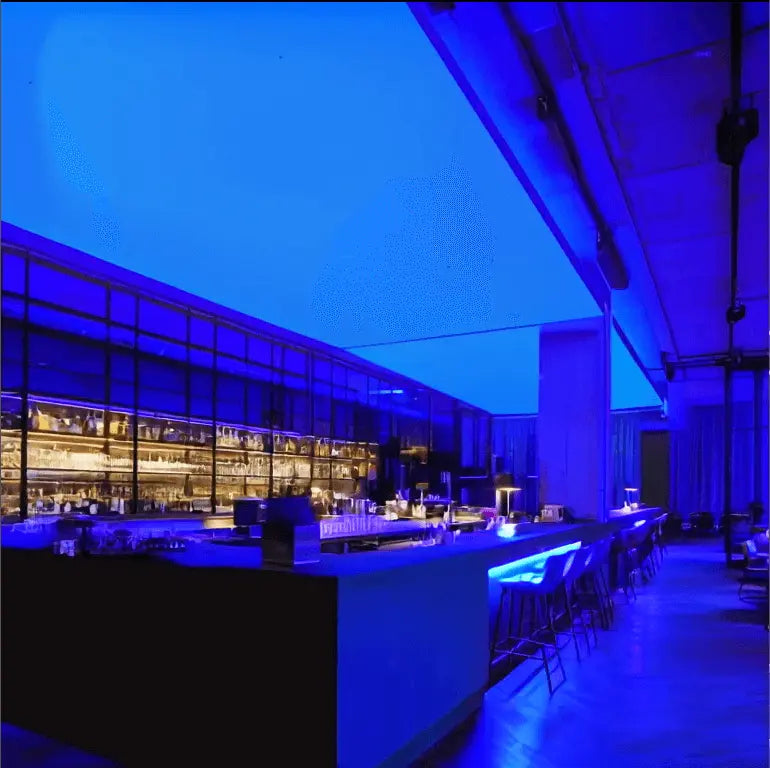

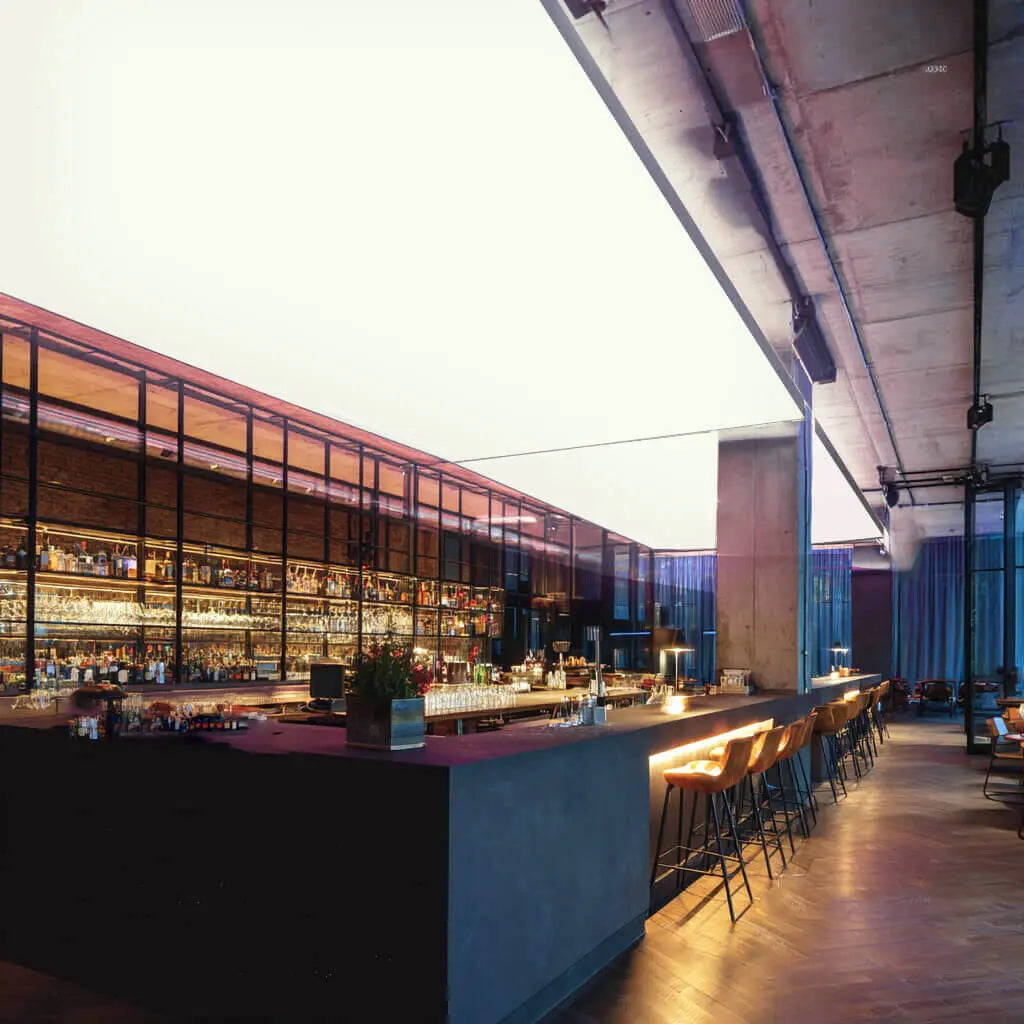

- Events & Hospitality: Atmospheric color schemes for hotels, lounges, foyers and restaurants
- Healthcare & Medical Practices: Calming color changes or targeted lighting moods for patients
- Office & Workspace: Flexible scenarios for creative work environments
- Interior & Architecture: Customized lighting solutions for exceptional room concepts
Textile printing & design
- Interchangeable textile motifs using sublimation printing
- Brilliant color reproduction with environmentally friendly, water-based inks
- Special textile with integrated diffusion layer for uniform light scattering
- Partial printing recommended: For CI/design elements; Note: Full-surface printing reduces the light effect
Important!
The EU plug is located in the bottom right corner (number 5) by default! Please specify any other positioning requests with the order number.
Individual request
Your individual inquiry to Primex
You would like to order a custom format or have a project.
As a manufacturer, we produce custom-made products for you!
We are happy to advise you on your projects and implement individual inquiries.
Print data
Print data & data check:
Please create your designs directly in the desired final format. For instructions on how to correctly prepare your print data, please refer to our data sheet.
Here's how to properly prepare your print data: Primex Print data.
We will of course carefully check your print data.
Should the resolution be insufficient for the desired print, we will contact you immediately to discuss the next steps together.
Assembly
Assembly & Construction
Our products are either delivered pre-assembled or are designed for easy and efficient assembly. Depending on the system, delivery is either as a finished unit or as a well-designed modular system that, in many cases, can be assembled without tools or with minimal tools.
For safe and smooth installation, we provide you with comprehensive functional descriptions, detailed assembly instructions, and, for selected systems, supplementary assembly videos. This allows for step-by-step assembly, even without specialized knowledge.
Why not visit our YouTube Channel with many useful assembly videos.
Professional installation service (optional)
Upon request, we can handle the entire installation for you. To ensure optimal on-site planning, please complete our installation checklist and send it to us. Based on this information, we will create a customized and binding quote for the project.
We draw on an experienced pool of professional installers – particularly in the DACH region and in selected other European countries. Many of our partners already have extensive experience with our systems, ensuring reliable, clean, and on-time implementation.
Formulate:
Thank you for your trust. If you have any questions regarding assembly, planning, or implementation, our team is always happy to advise you.
Downloads
Downloads & Product Data Sheets
Care instructions
Cleaning and care recommendations for frames
- Only use soft, non-abrasive cloths or rags.
- Important: The surfaces to be cleaned should be cleaned as gently as possible and then rinsed thoroughly with water, as residues of salts, acids or alkalis can cause corrosion.
- Rubbing can lead to the coating becoming dull.
- Powder-coated parts should only be stored dry.
- Standard pH-neutral household cleaning agents are suitable.
- Never use solvent-containing products, alcohols, thinners (e.g. nitro thinner), acetic acid or other acids.
- Under no circumstances use abrasive or scratching cleaning agents.
Care instructions for display textile prints "without LED"
- Washable at 30° (easy care), liquid color detergent, gentle spin cycle (max. 800 rpm)
- Ironing: On the reverse side at level 1 – 2
- Tumble dryer suitable (cold/lukewarm) Alternatively: Air dry spread out over a large area
- Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
- Store not below 10°C+ and not above 60°C+ at constant temperature
Care instructions for display textile prints with grey, white or black separating layer "Blockout"
- Not washable
- Do not iron
- Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
- Store not below 10°C+ and not above 60°C+ at constant temperature
Care instructions for backlit textile prints "with LED"
- Not washable
- Do not iron
- Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
- Store not below 10°C+ and not above 60°C+ at constant temperature
Care instructions for PVC tarpaulin prints
- Not washable
- Do not iron
- Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
- Store not below 10°C+ and not above 60°C+ at constant temperature
Disclaimer for care and cleaning recommendations
The care and cleaning recommendations provided by us have been developed and tested in consultation with the respective manufacturers of the raw materials used. Nevertheless, these statements serve exclusively as non-binding information based on our many years of experience.
Due to individual manufacturer tolerances, different cleaning agents, varying machines and deviating application conditions, Primex cannot assume any guarantee or liability for the actual suitability, effect or result of the recommended care and cleaning measures.
Any liability – regardless of the legal reason – is excluded. The responsibility for the selection, application and execution of suitable care and cleaning procedures lies exclusively with the user.
We ask for your understanding and thank you for your trust.
Change of subject
Tool-free motif change - we think ahead!
We love sustainability not only in the raw materials for our acoustic pictures, acoustic partitions, etc., but also think long-term. For this reason, we have opted for a frame system that allows for a motif change without having to replace the entire product. Easily adapt the aluminum frames to the season, design, or color concept. Our textile print is interchangeable thanks to the keder system. You don't even have to take the frame off the wall to change the motif. Changing the motif is child's play and, most importantly, no tools are needed.
How to change the motif:
- Remove the textile. Pull the existing tab forward and the textile will detach from the frame. Now you can carefully pull the textile off along the frame.
- Insert the new textile. You can watch our short video for this.
Reorder textile printing
