Corner connector 55 mm for textile tension frames

Corner connector 55 mm – stable connection for durable textile tension frame constructions

The 55 mm corner connector was specifically developed for the secure and precise connection of textile tension frames. It ensures a stable frame construction and is particularly suitable for larger formats and applications with higher demands on stability and load-bearing capacity.

The combination of steel and aluminum gives the corner connector exceptional stability and precise workmanship. The connection with screws and T-nuts ensures accurate alignment of the profiles and guarantees a permanently reliable corner joint.

One set contains all the necessary components to manufacture a square textile tension frame and allows for quick assembly.

Product advantages at a glance

• Suitable for 55 mm textile tension frames
• Stable and durable corner joint
• High-quality construction in steel and aluminum
• Secure fastening with screws and T-nuts
• Easy and quick assembly
• Ideal for large-format textile tension frames
• High dimensional stability of the frame

General technical data of the corner connector

• Design: Corner connectors made of steel / aluminum

• Suitable for: 55 mm textile tension frames

• Connection: Cylinder head bolts M6 × 8 mm

• Fastening: T-nuts M6 / 25 × 25 × 3 mm

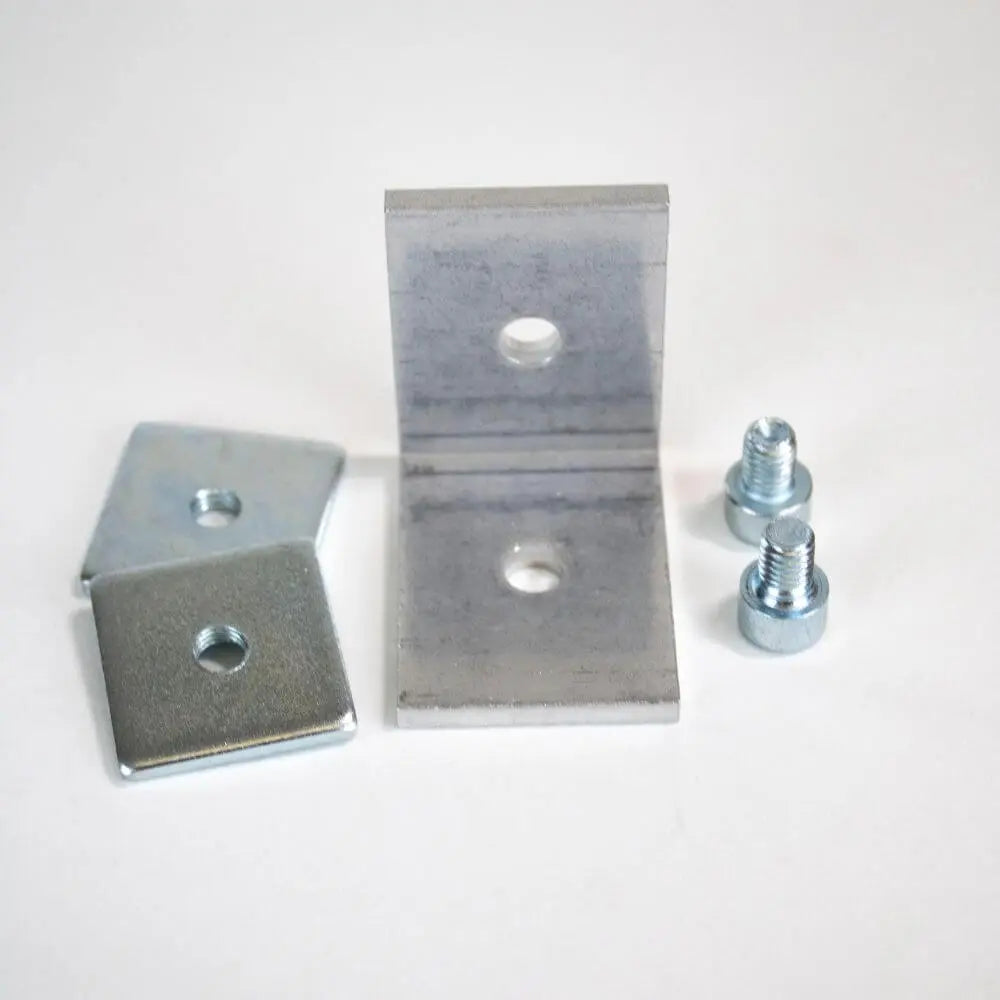

• Contents per set:
  -2 screws
  -2 T-nuts
• Packaging unit: 4 pieces
• Weight per set: 0.23 kg
• Required: 1 set for a square textile tension frame (4 corner connectors)

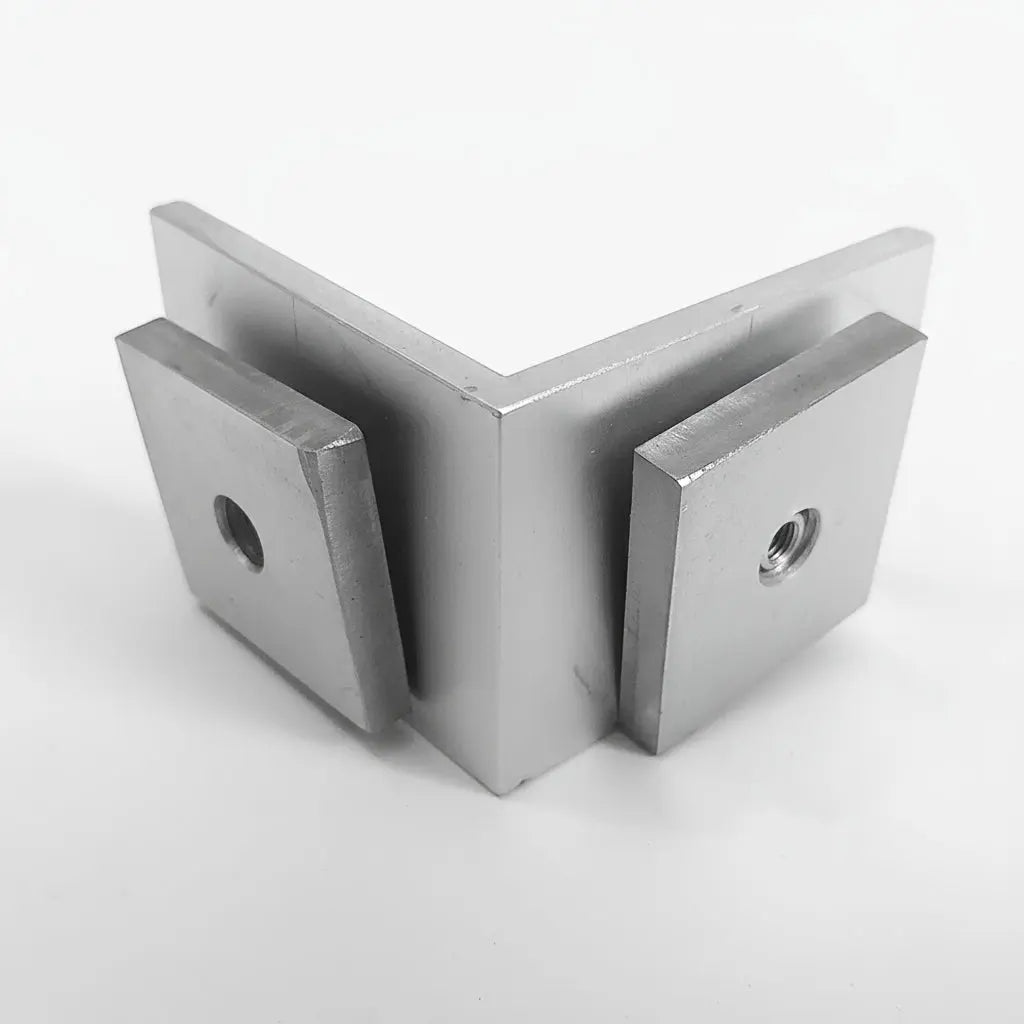

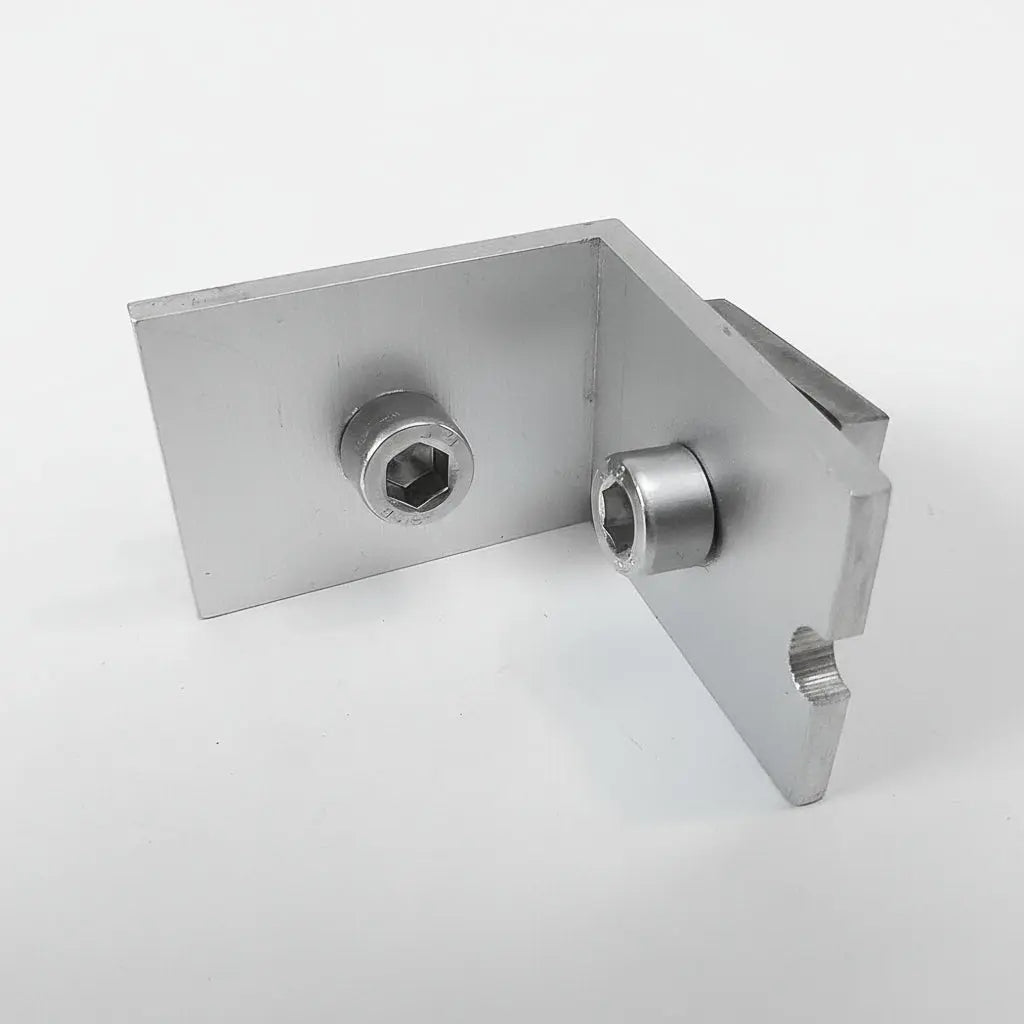

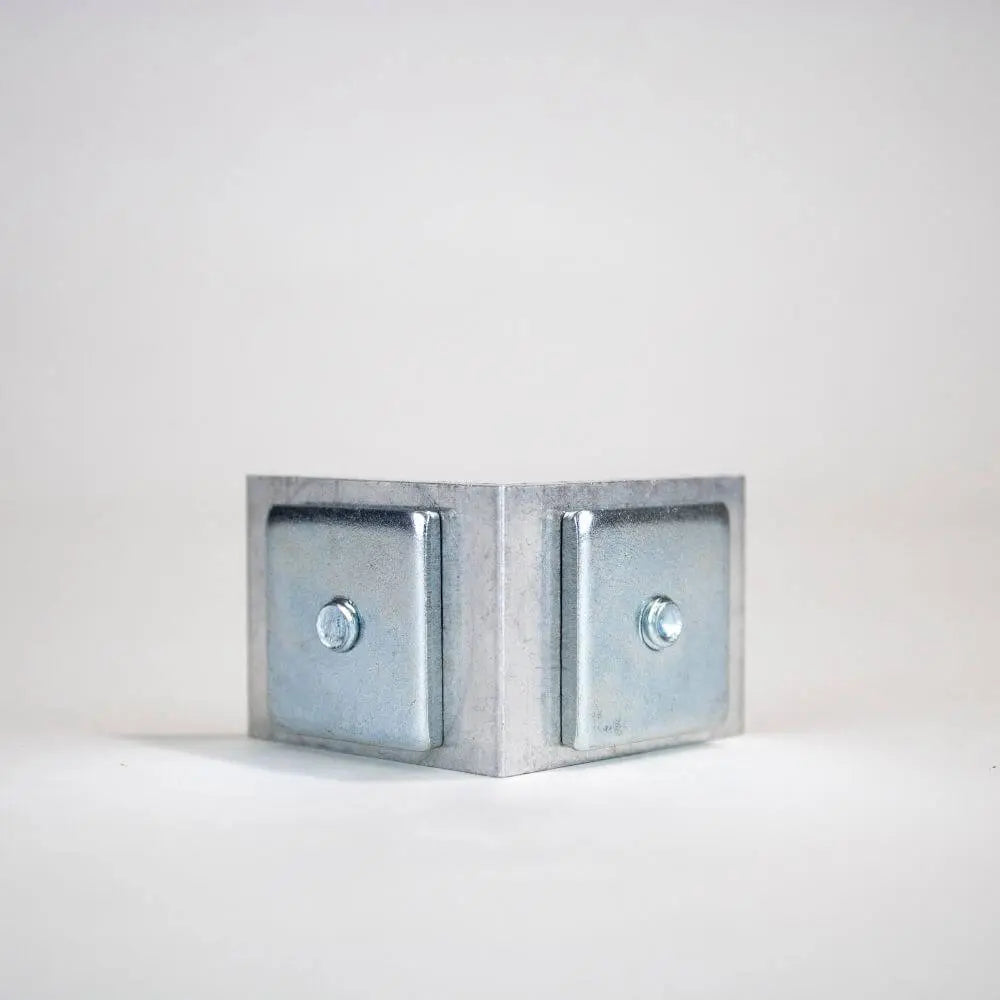

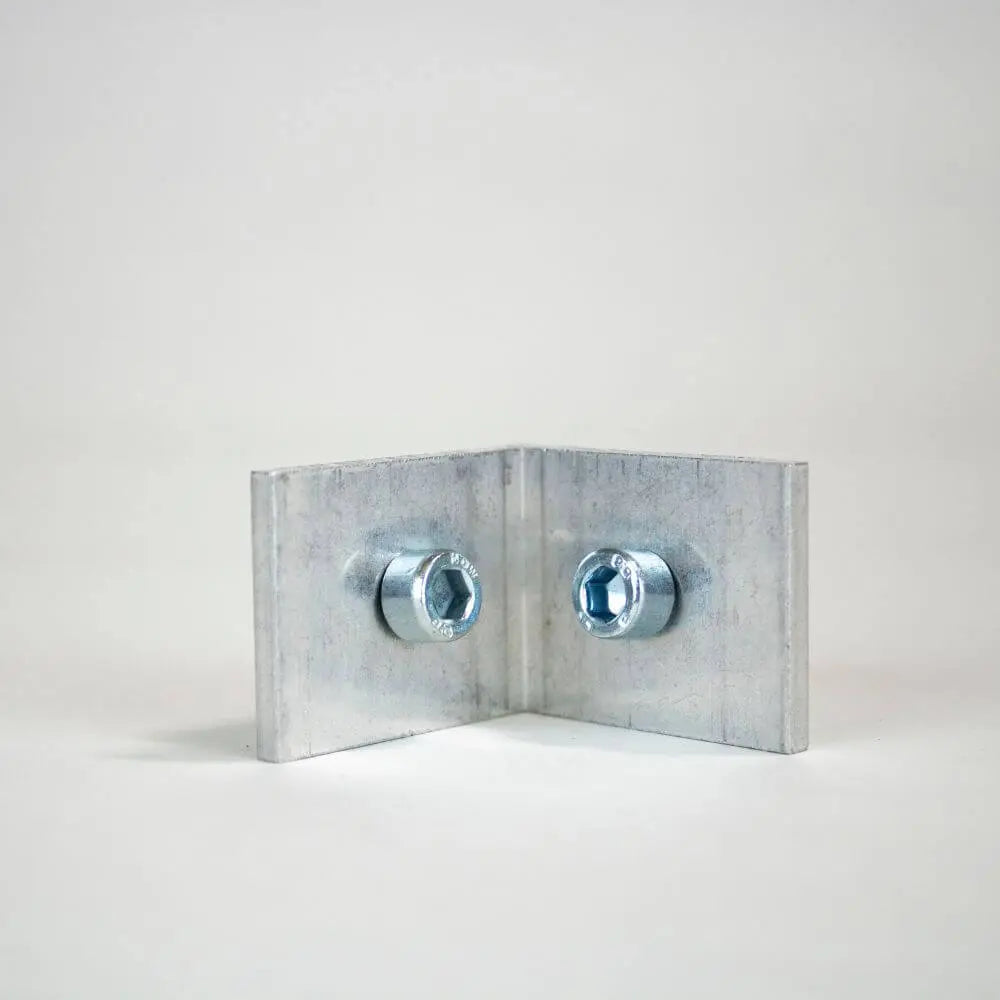

Construction of the corner connector

The corner connector is inserted into the designated areas of the textile tension frame and securely connects the individual profiles. The combination of screw connections and T-nuts ensures precise assembly and supports a permanently stable corner construction.

The simple design allows for quick assembly and is ideal for individual textile tension frames in indoor areas.

areas of application

Textile tension frame
Ideal for stable and durable textile tension frames with high load-bearing capacity.

Large-format frame constructions
Suitable for larger tension frames with increased requirements for stability and dimensional accuracy.

Wall frame with fabric banner
Perfect for high-quality fabric banner presentations with clean frame corner connections.

Shopfitting & Retail
Ideal for textile branding areas and individual presentation solutions.

Exhibition stand construction & brand presentations
Suitable for professional presentation systems with frequent setup and takedown.

Conclusion

The 55 mm corner connector is the ideal accessory for stable and durable textile tension frame constructions. The combination of steel and aluminum, secure fastening, and easy assembly create a long-lasting solution for high-quality tension frame systems.
