Mounting aid for Z-mount PR80 outdoor frame

Mounting aid for Z-bracket PR80 outdoor frame – faster tool for precise assembly

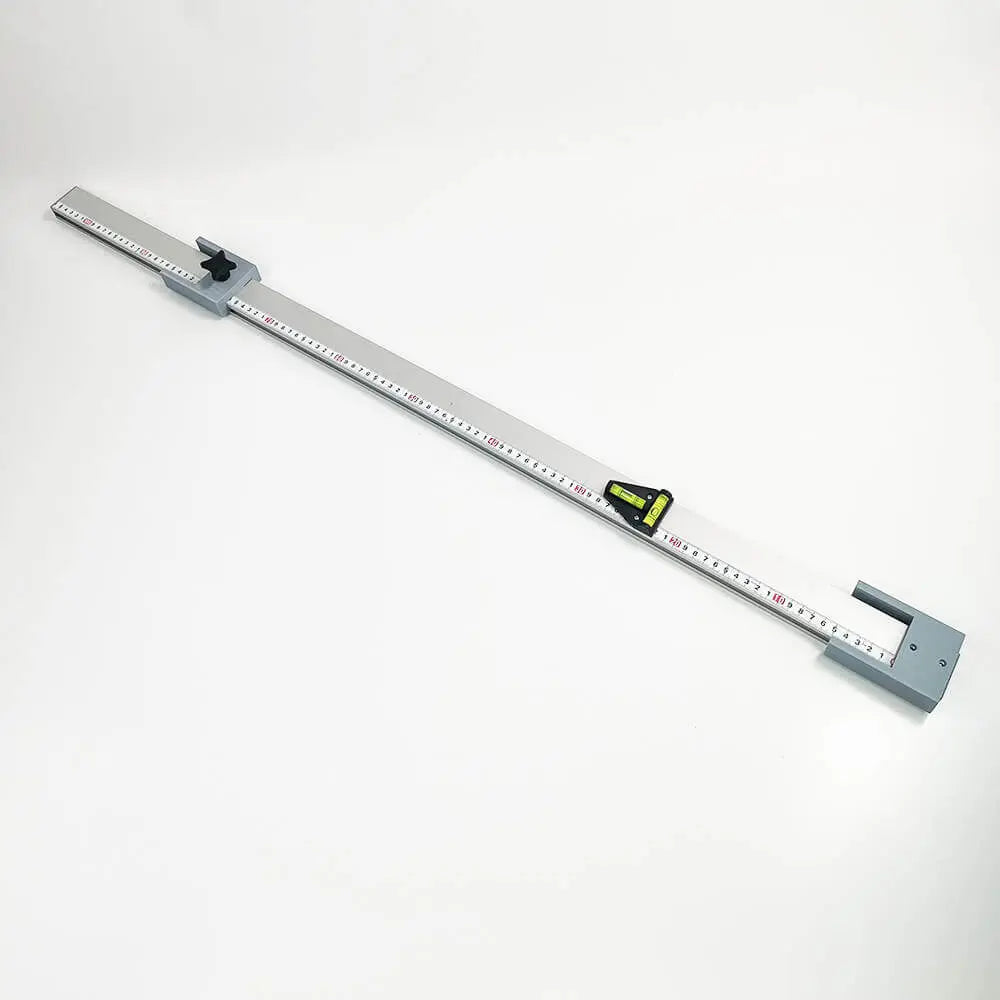

The mounting aid for PR80 outdoor Z-brackets was specially developed to make mounting Z-brackets faster, more precise, and more efficient. The integrated spirit level and individually adjustable sliding mechanism allow for easy alignment and installation of bracket spacing.

The reusable design supports consistently precise processing and is ideal for recurring outdoor installations.

Product advantages at a glance

• Specifically designed for mounting Z-brackets

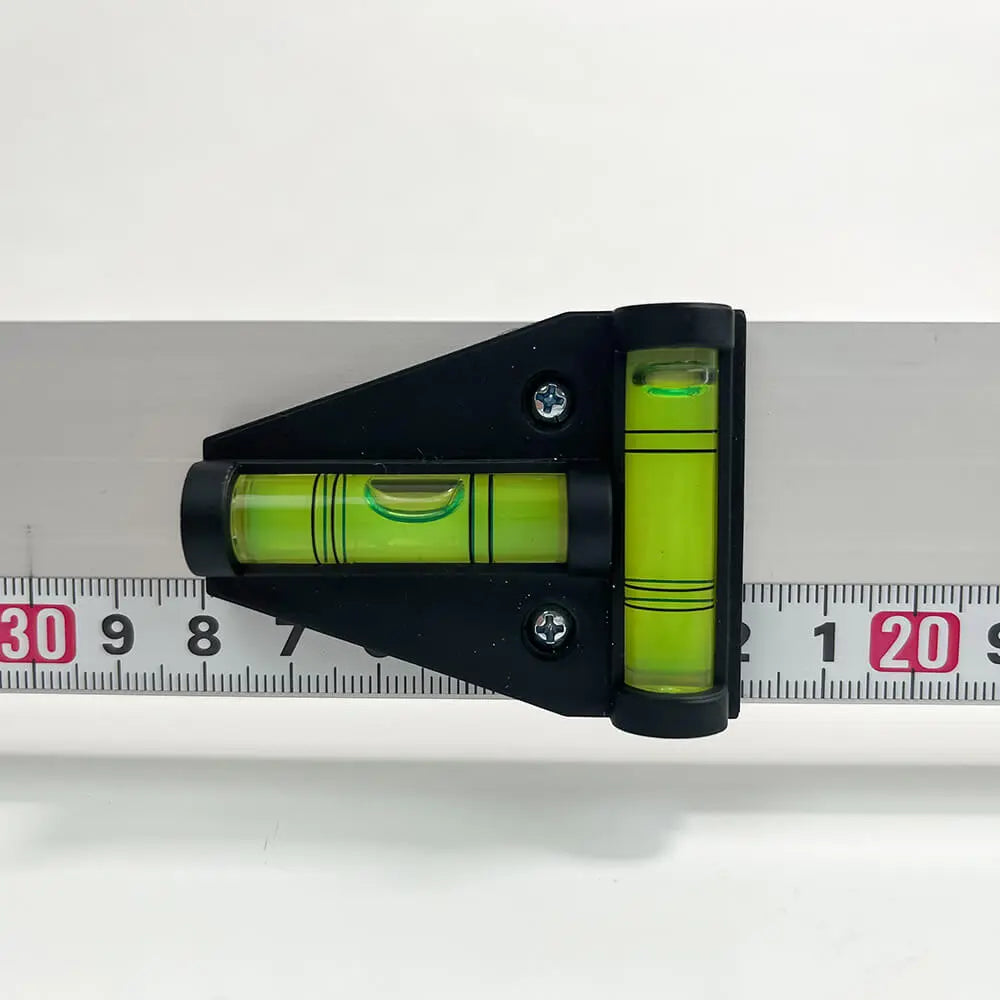

• Integrated spirit level for precise alignment

• Individually adjustable size

• Easy to use

• reusable

• Faster and more efficient assembly

• Reduces assembly time by approximately 50–70%


General Technical Data of the Assembly Aid

• Design: Mounting aid for Z-bracket

• Color: Silver / Urban Grey
• Packaging unit: 1 piece

Assembly aid setup

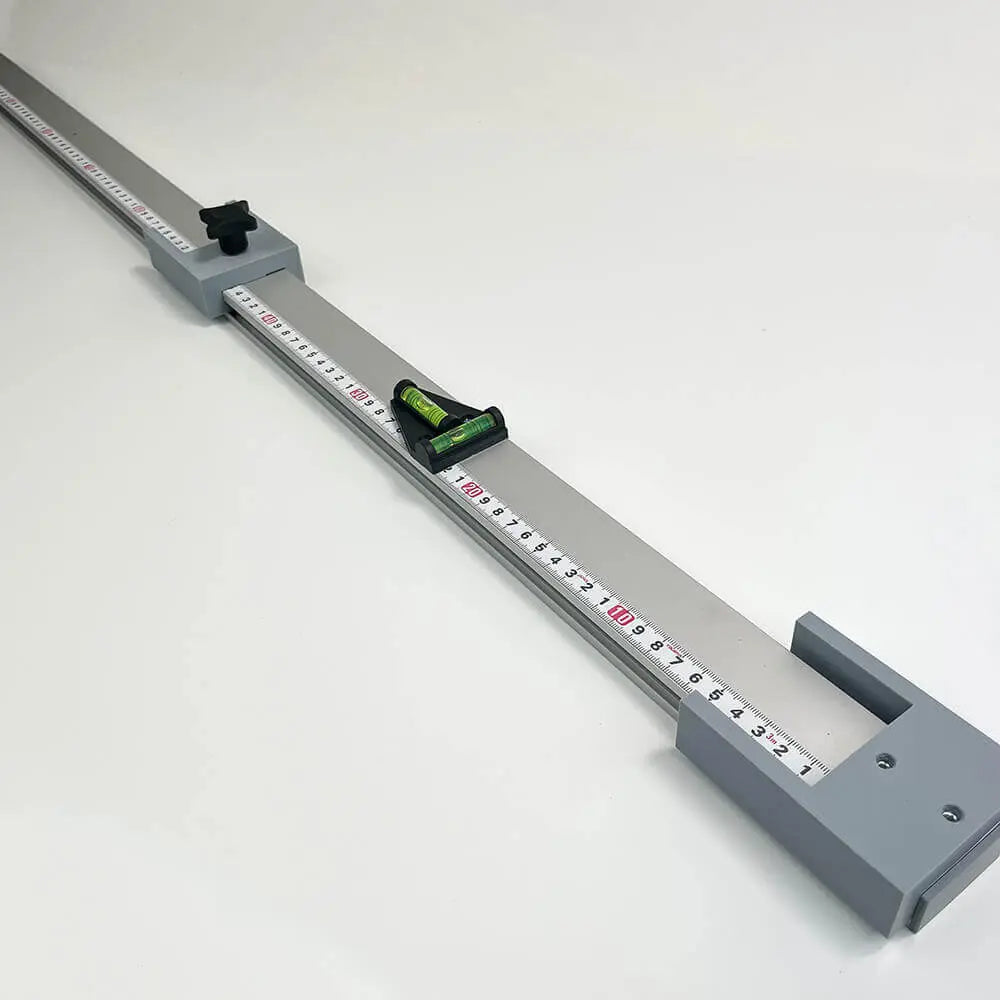

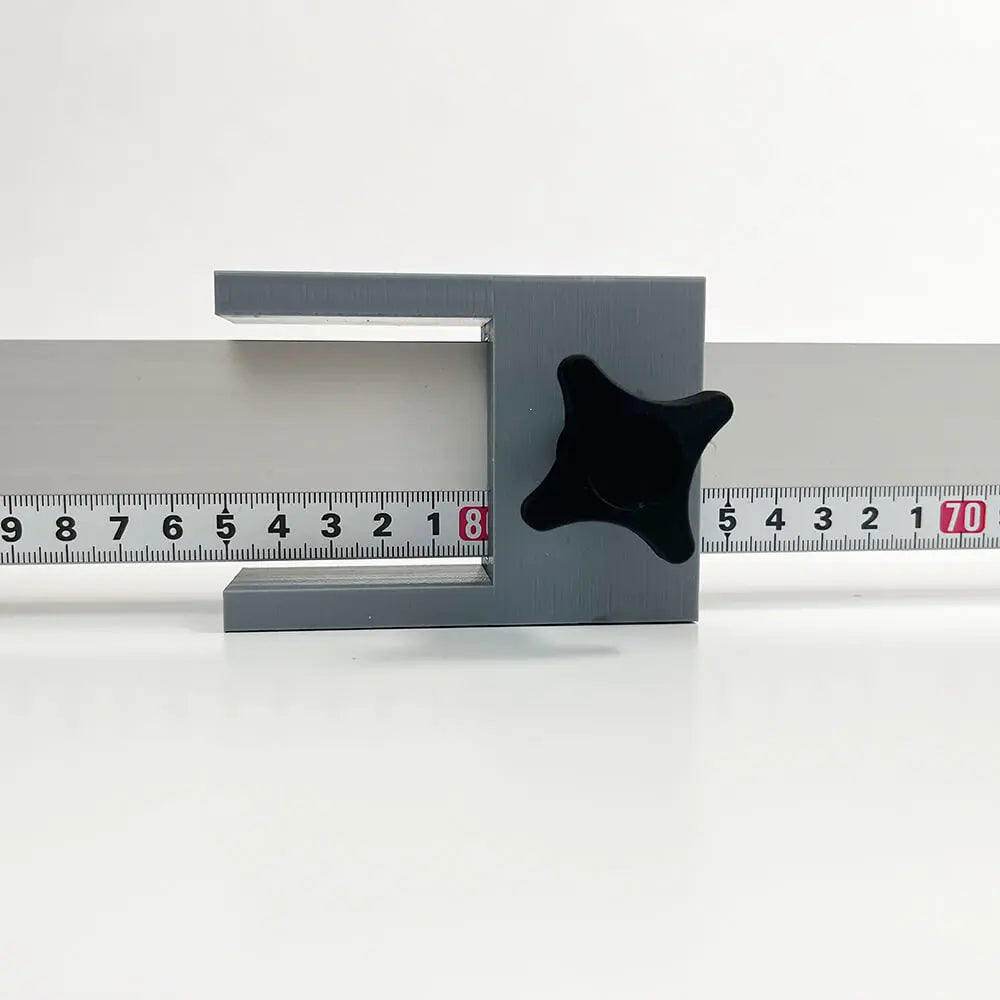

The mounting aid is used for positioning and aligning the Z-brackets. Distances can be easily adjusted using the adjustable sliding mechanism, while the integrated spirit level ensures precise alignment.

This simplifies assembly and significantly reduces the time required.

areas of application

PR80 Outdoor Frame
Ideal for the quick and precise mounting of Z-brackets on outdoor frame systems.

Outdoor advertising
Suitable for applications with high demands on precise positioning.

Assembly & Installation
Perfect for recurring installations with reduced time expenditure.

Advertising technology
Ideal for professional frame installations with efficient setup.

Conclusion

The PR80 Outdoor Frame Z-Bracket Mounting Aid is a practical tool for faster and more precise installation. Thanks to its integrated spirit level, flexible adjustment, and reusable design, it is ideal for professional outdoor applications.
