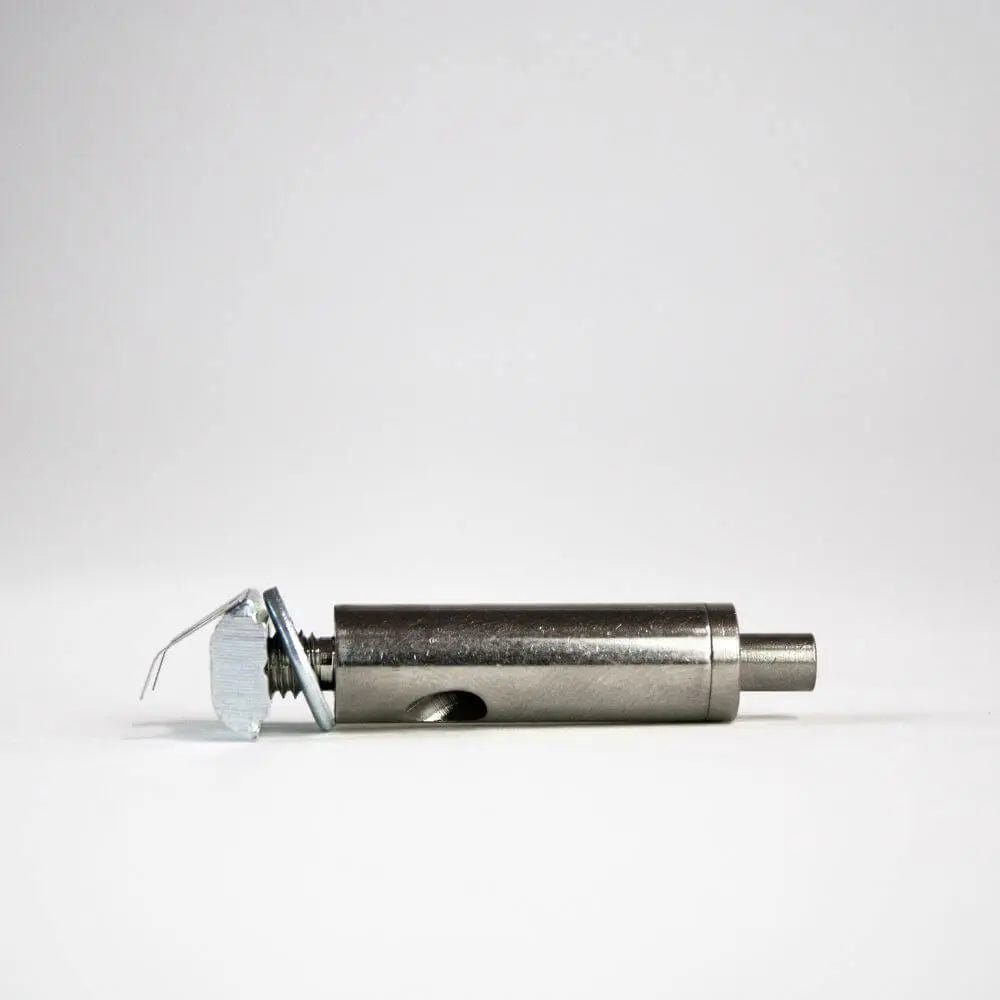

Height-Adjustable Wire Rope Holder for Textile Stretching Frames

The height-adjustable wire rope holder with spring was specially designed for suspending 44 mm textile tension frames. Thanks to the integrated wire rope holder/gripper, the system allows for easy height adjustment and facilitates precise positioning of the frame.

The combination of a wire rope bracket, a spring-loaded groove nut, and a simple mounting system ensures a flexible and clean ceiling suspension. This makes the system ideal for professional indoor applications and for technical installations with static loads.

Product Benefits at a Glance

• Fits 44 mm fabric stretch frames with a groove

• Height-adjustable for flexible positioning

• Integrated gripper for easy adjustment

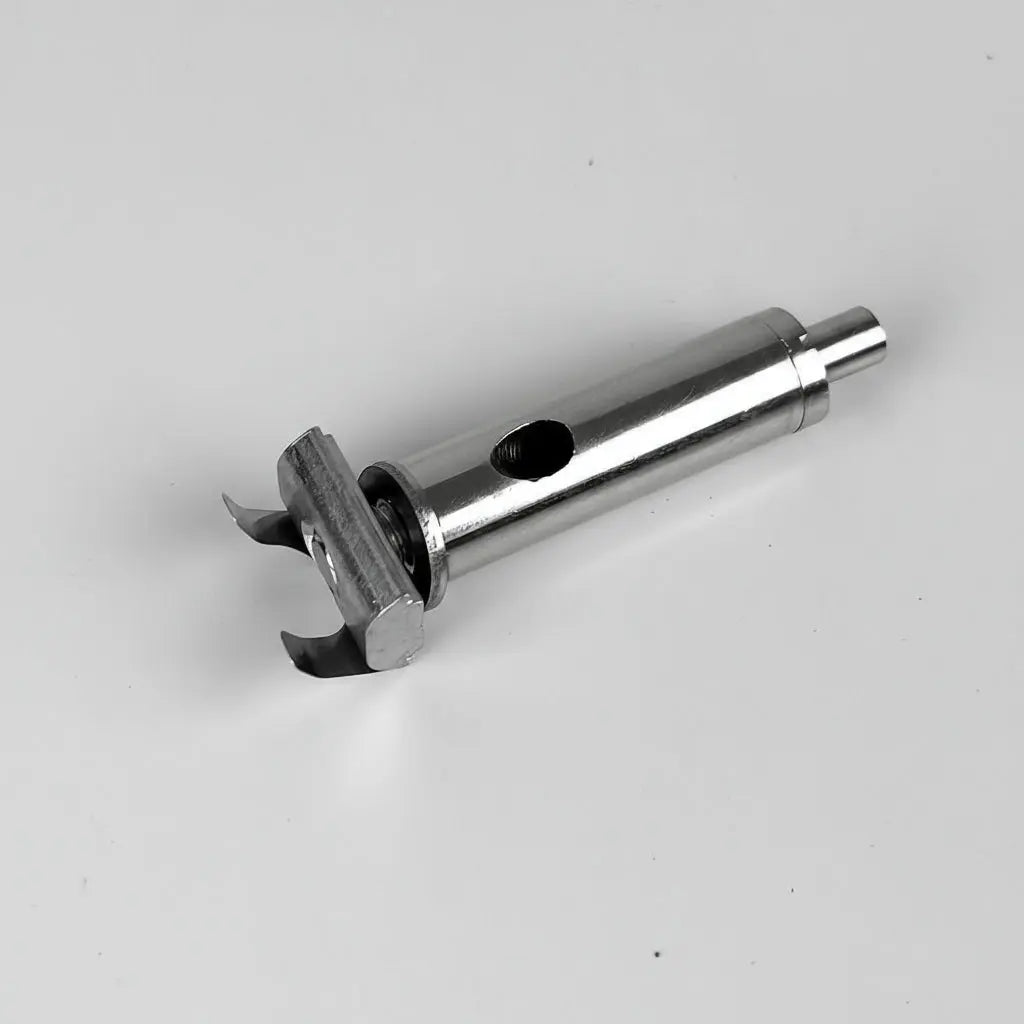

• Slotted nut with spring for secure fastening

• Suitable for wire ropes with a diameter of 1.5 mm

• Simple and precise installation without tools

• Ideal for hanging textile stretching frames


General Technical Specifications of the Wire Rope Clamp

• Design: Height-adjustable wire rope holder with gripper

• Suitable for: 44 mm fabric stretching frames with a groove

• Mounting: Slotted nut with spring

• Suitable for wire ropes: Ø 1.5 mm
• Weight: 0.05 kg

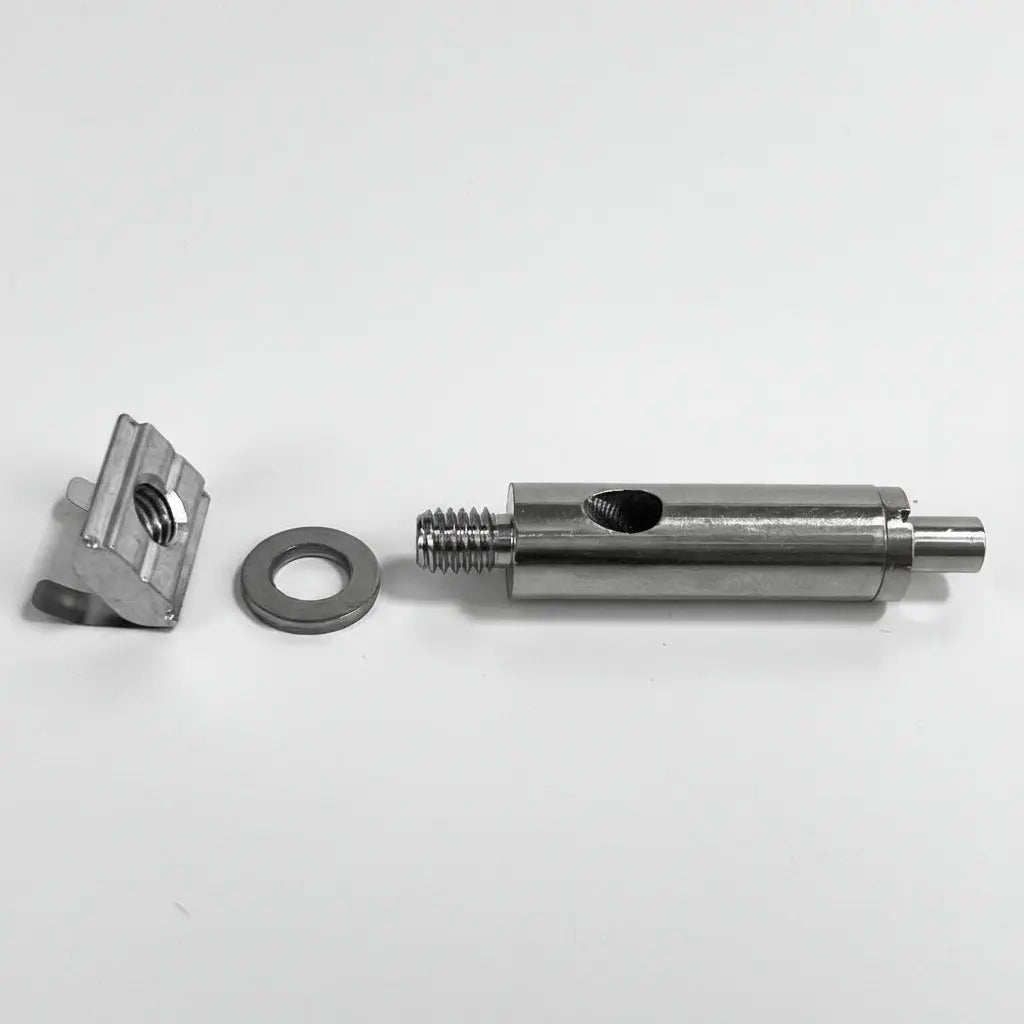

Construction of the Wire Rope Holder

The wire rope holder is inserted into the profile and secured using the integrated slotted nut. The wire rope is guided through the gripper, allowing its height to be easily adjusted.

The design allows for precise alignment and flexible positioning of the suspended frame. Depending on the application, the frame can be aligned securely and neatly.

Areas of Application

Suspended Textile Stretching Frames Ideal for the secure and flexible ceiling suspension of textile stretching frames.

Retail & Store Design
Suitable for freestanding brand and display areas.

Exhibition Stand Construction—Perfect for textile installations and changing presentation concepts.

Interior Design & Commercial Construction
Ideal for modern interior designs featuring a floating-frame look.

FAQ

For which profiles is the wire rope holder suitable?
The wire rope holder is designed for 44 mm textile tension frames with a groove.

Can the height be adjusted without tools?
Yes, the built-in gripper allows for easy and precise height adjustment.

What wire rope diameter is this system suitable for?
The wire rope holder is suitable for wire ropes with a diameter of 1.5 mm.

Conclusion

The height-adjustable wire rope holder with spring for 44 mm fabric stretch frames is the perfect solution for flexible and precise frame suspension. Thanks to its easy height adjustment and secure mounting, the system is ideal for professional indoor applications.

Note: Suitable only for static, stationary loads. Not intended for suspending moving or dynamic loads.
