LED light wall Tunable White - in 100 mm profile
LED light wall Tunable White - in 100 mm profile
Regular price
0,00€
Regular price
Sale price
0,00€
(including
Shipping)
Couldn't load pickup availability
Free shipping
- Secure Delivery:10 - 15 days
- Quality from Germany – for over 25 years
Leafroomfungus:
Book for free
Personal Consultation & Planning
Description

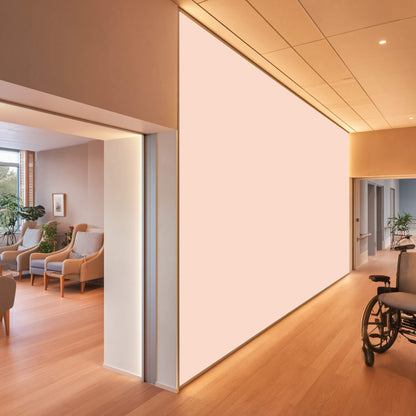

LED light wall Tunable White - in 100 mm profile
The Tunable White LED light wall combines modern lighting design with biologically appropriate lighting effects – all within a depth of just 100 mm. Thanks to state-of-the-art tunable white technology, the color temperature can be continuously adjusted between 3000 K and 7500 K. This creates the perfect atmosphere depending on the time of day and the intended use – from warm, relaxing light to energizing daylight white.

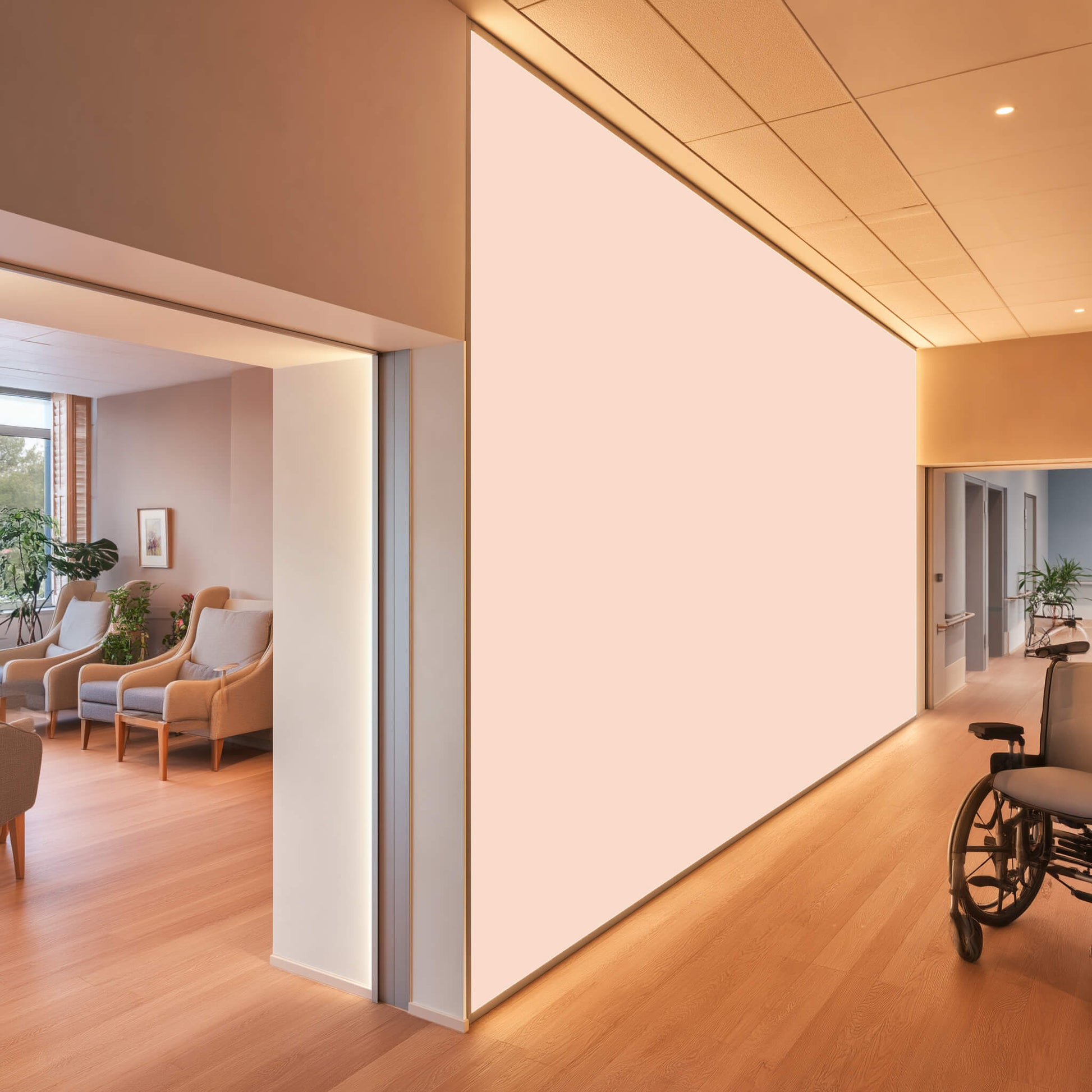

The system is ideally suited for wall design and light integration in offices, medical practices, clinics, hospices, retail and interior projects where light is used as an architectural and emotional design element.
Perfect light quality for demanding spaces
The light wall offers even, surface illumination with a light output of approx. 8500 (2700K) to 9300 (7500K) Lumens per m² and a color rendering index (CRI) of > 85. Rooms are not only optimally illuminated, but colors and details are also displayed true to life.
Thanks to Human Centric Lighting, the natural course of daylight is imitated. The light actively supports the circadian rhythm: In the morning, cool, daylight-like white light promotes concentration and energy, while in the evening, warm white light ensures relaxation. This improves well-being, sleep quality, and performance.
Technical performance data
Our “Tunable White Light Walls” impress not only with their uniform illumination, but also with their energy-efficient performance.
The actual power consumption may vary slightly depending on the size of the tunable white light walls and the chosen color.
The values given below refer to the maximum power consumption at full power (at a mains voltage of 230 V).
When the ceiling light is dimmed, energy consumption is reduced accordingly.
- Luminous flux in lumens per m²: approx. 8500 (2700K) to 9300 (7500K)
- Power output: approx. 125 W/m²
- Luminous flux in lumens per m²: approx. 8500 (2700K) to 9300 (7500K)
- Power output: approx. 125 W/m²
100 x 200 cm: Total current draw: approx. 1.0 A
200 x 300 cm: Total current draw: approx. 3.5 A
250 x 500 cm: Total current draw: approx. 5.2 A
200 x 300 cm: Total current draw: approx. 3.5 A
250 x 500 cm: Total current draw: approx. 5.2 A
This allows even large rooms to be reliably and evenly illuminated – with stable light quality and high energy efficiency.
Advantages & Features
- Tunable White (2700-7500K): Dynamic adjustment of light color, mood and biological effect
- Human Centric Lighting: Supports the natural biorhythm, promotes health, concentration & regeneration
- Homogeneous surface light: A calm, uniform appearance without visible light points.
- Partial printing recommended: Print CI/design elements only partially for a brilliant lighting effect.
- 100 mm installation depth: Compact, elegant solution for diverse applications
- Special forms: In addition to square versions, also round, curved and free shapes for creative architectural solutions
- Flexible control: DALI, Casambi, DMX or app/smart home integration – individually tailored to each application
- Sustainable & individual: Textiles with integrated diffusion layer, replaceable without tools, ÖkoTex 100 certified
- Energy efficient & durable: High-quality brand LEDs for long lifespan and low energy consumption
Thanks to Human Centric Lighting (HCL) The light wall actively supports the natural biorhythm. In the morning, cool white light is stimulating, while in the evening, warm white light promotes calm and well-being. This quality of light equally enhances performance, concentration, and regeneration.
areas of application

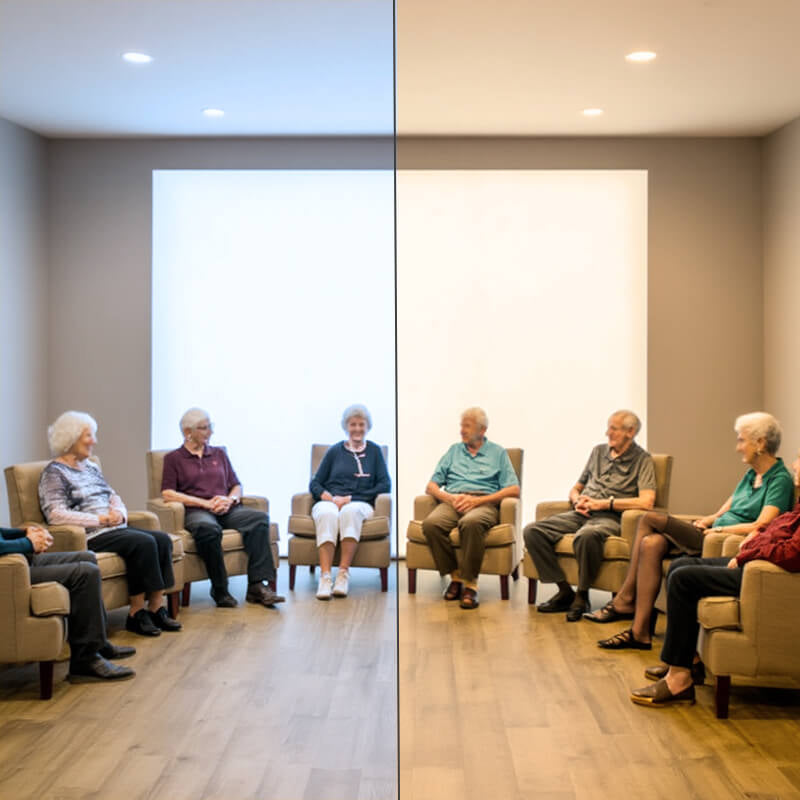

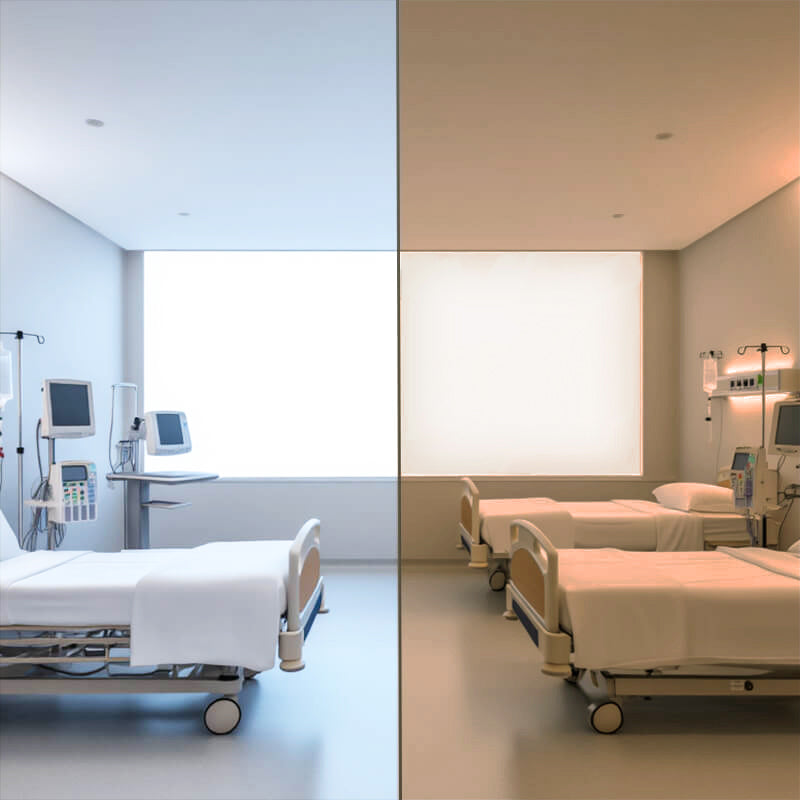

- Healthcare, Clinics & Hospices: Promotes a healthy sleep-wake cycle, increases patient well-being, and reduces stress and strain on nursing staff.
- Medical practices & doctors' offices: Natural lighting moods for relaxed patients and focused work by the professional staff.
- Office & Workspace: Increased concentration, less fatigue, better performance
- Exclusive Retail & Showrooms: A sales-promoting atmosphere through variable lighting
- Interior & Hospitality: Flexible lighting design for hotels, lounges, foyers and more
Textile printing & design
- Interchangeable textile motifs using sublimation printing
- Brilliant color reproduction with environmentally friendly, water-based inks
- Special textile with integrated diffusion layer for uniform light scattering
- Partial printing recommended: To allow the light to have its full effect, the technical textiles should not be printed over their entire surface.
- Design guidelines: Design elements, logos, or CI/CD motifs. Higher print density reduces the desired lighting effect and should be avoided.
- Individual motif design according to corporate design or desired specifications – taking into account the overall concept.
Important!
The EU plug is located in the bottom right corner (number 5) by default! Please specify any other positioning requests with the order number.
Individual request
Your individual inquiry to Primex
You would like to order a custom format or have a project.
As a manufacturer, we produce custom-made products for you!
We are happy to advise you on your projects and implement individual inquiries.
Print data
How to prepare your print data correctly: Primex Print Data.
Assembly
Assembly & Construction
Our products are either delivered pre-assembled or are designed for easy and efficient assembly. Depending on the system, delivery is either as a finished unit or as a well-designed modular system that, in many cases, can be assembled without tools or with minimal tools.
For safe and smooth installation, we provide you with comprehensive functional descriptions, detailed assembly instructions, and, for selected systems, supplementary assembly videos. This allows for step-by-step assembly, even without specialized knowledge.
Why not visit our YouTube Channel with many useful assembly videos.
Professional installation service (optional)
Upon request, we can handle the entire installation for you. To ensure optimal on-site planning, please complete our installation checklist and send it to us. Based on this information, we will create a customized and binding quote for the project.
We draw on an experienced pool of professional installers – particularly in the DACH region and in selected other European countries. Many of our partners already have extensive experience with our systems, ensuring reliable, clean, and on-time implementation.
Formulate:
Thank you for your trust. If you have any questions regarding assembly, planning, or implementation, our team is always happy to advise you.
Downloads
Downloads & Product Data Sheets
Care instructions
Cleaning and care recommendations for frames
- Only use soft, non-abrasive cloths or rags.
- Important: The surfaces to be cleaned should be cleaned as gently as possible and then rinsed thoroughly with water, as residues of salts, acids or alkalis can cause corrosion.
- Rubbing can lead to the coating becoming dull.
- Powder-coated parts should only be stored dry.
- Standard pH-neutral household cleaning agents are suitable.
- Never use solvent-containing products, alcohols, thinners (e.g. nitro thinner), acetic acid or other acids.
- Under no circumstances use abrasive or scratching cleaning agents.
Care instructions for display textile prints "without LED"
- Washable at 30° (easy care), liquid color detergent, gentle spin cycle (max. 800 rpm)
- Ironing: On the reverse side at level 1 – 2
- Tumble dryer suitable (cold/lukewarm) Alternatively: Air dry spread out over a large area
- Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
- Store not below 10°C+ and not above 60°C+ at constant temperature
Care instructions for display textile prints with grey, white or black separating layer "Blockout"
- Not washable
- Do not iron
- Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
- Store not below 10°C+ and not above 60°C+ at constant temperature
Care instructions for backlit textile prints "with LED"
- Not washable
- Do not iron
- Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
- Store not below 10°C+ and not above 60°C+ at constant temperature
Care instructions for PVC tarpaulin prints
- Not washable
- Do not iron
- Store on suitable cardboard rolls or loosely folded in a box (Caution! Absolutely avoid creases)
- Store not below 10°C+ and not above 60°C+ at constant temperature
Disclaimer for care and cleaning recommendations
The care and cleaning recommendations provided by us have been developed and tested in consultation with the respective manufacturers of the raw materials used. Nevertheless, these statements serve exclusively as non-binding information based on our many years of experience.
Due to individual manufacturer tolerances, different cleaning agents, varying machines and deviating application conditions, Primex cannot assume any guarantee or liability for the actual suitability, effect or result of the recommended care and cleaning measures.
Any liability – regardless of the legal reason – is excluded. The responsibility for the selection, application and execution of suitable care and cleaning procedures lies exclusively with the user.
We ask for your understanding and thank you for your trust.
Change of subject
Tool-free motif change - we think ahead!
We love sustainability not only in the raw materials for our acoustic pictures, acoustic partitions, etc., but also think long-term. For this reason, we have opted for a frame system that allows for a motif change without having to replace the entire product. Easily adapt the aluminum frames to the season, design, or color concept. Our textile print is interchangeable thanks to the keder system. You don't even have to take the frame off the wall to change the motif. Changing the motif is child's play and, most importantly, no tools are needed.
How to change the motif:
- Remove the textile. Pull the existing tab forward and the textile will detach from the frame. Now you can carefully pull the textile off along the frame.
- Insert the new textile. You can watch our short video for this.
Reorder textile printing
