Base plates 400 x 100 x 8mm set for freestanding textile tension frames up to 250 cm high

Base plates 400 × 100 × 8 mm set – stable stand solution for freestanding textile tension frames

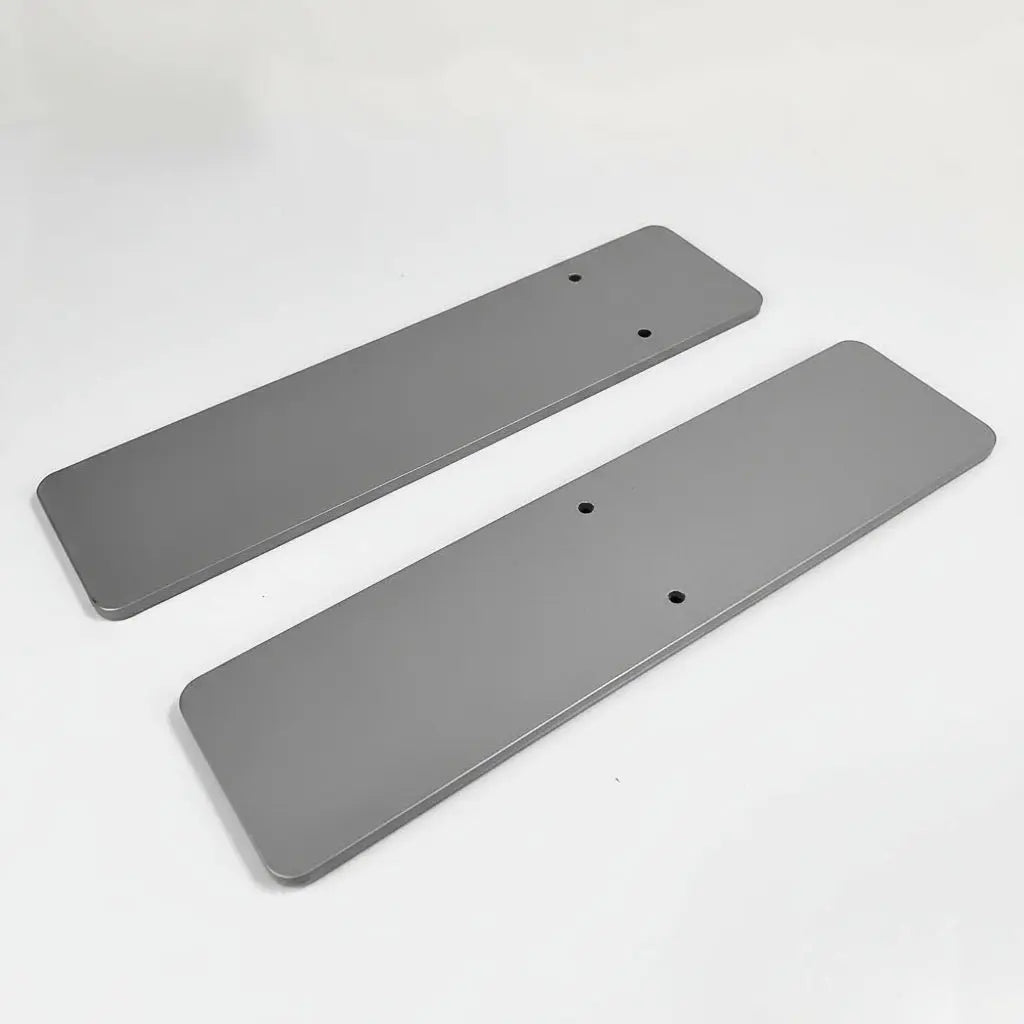

The 400 × 100 × 8 mm base plates were specially developed for freestanding textile tension frames and ensure a secure and stable stand – even for larger frame sizes up to 250 cm high. Various hole patterns allow for flexible mounting of different profile types.

Made from robust steel, the base plates impress with their high load-bearing capacity and durable construction. The complete set includes all necessary fasteners for various profile types and allows for quick installation.

Product advantages at a glance

• For freestanding textile tension frames up to 250 cm high

• Suitable for Primex profile 44 with groove, 100 mm and 150 mm

• Various hole patterns for flexible mounting

• Robust steel construction

• Universally usable for portrait and landscape format

• Includes screw sets and accessories. High stability for larger frame sizes.

• General Technical Data of the Footplates

Design: Base plates for textile tension frames

• Suitable for: Primex profile 44 with groove / 100 / 150 mm

• Material: steel

• Color: RAL 9006 matt
• Dimensions (L × W × H): 400 × 100 × 8 mm
• Contents per set:
  -2 footplates
  -3 screw sets (for profile 44, 100 and 150 mm)
  -4 T-nuts M6
  -8 felt glides Ø 25 mm
  -4 mm Allen key
• Screw sets:
  -Profile 44 mm with groove: 4 × countersunk screws M6 × 12 mm
  -Profile 100 mm: 4 × countersunk screws M6 × 20 mm
  -Profile 150 mm: 4 × countersunk screws M6 × 25 mm
• Packaging unit: 2 pieces
• Weight per set: 5.2 kg

Construction of the footplates

The base plates are mounted to the lower part of the textile tension frame and ensure a secure stand without additional fastening. The different hole patterns allow for flexible use of various profile options.

For wider frames, the use of additional base plates may be advisable. At least three base plates are recommended for widths of approximately 2 meters and above.

areas of application

Freestanding textile tension frames
Ideal for stable frame systems up to 250 cm high in portrait or landscape format.

Exhibition stand construction
Perfect for freestanding fabric banners and flexible presentation areas.

Shopfitting & Retail
Suitable for mobile brand presentations and textile advertising surfaces.

Showrooms & Interiors
Ideal for freestanding presentation solutions with a professional look.

Conclusion

The 400 × 100 × 8 mm base plates offer a stable and flexible stand solution for freestanding textile tension frames. Thanks to their robust steel construction, universal profile compatibility, and comprehensive accessories, the set is ideally suited for professional indoor applications.
