Characteristics:

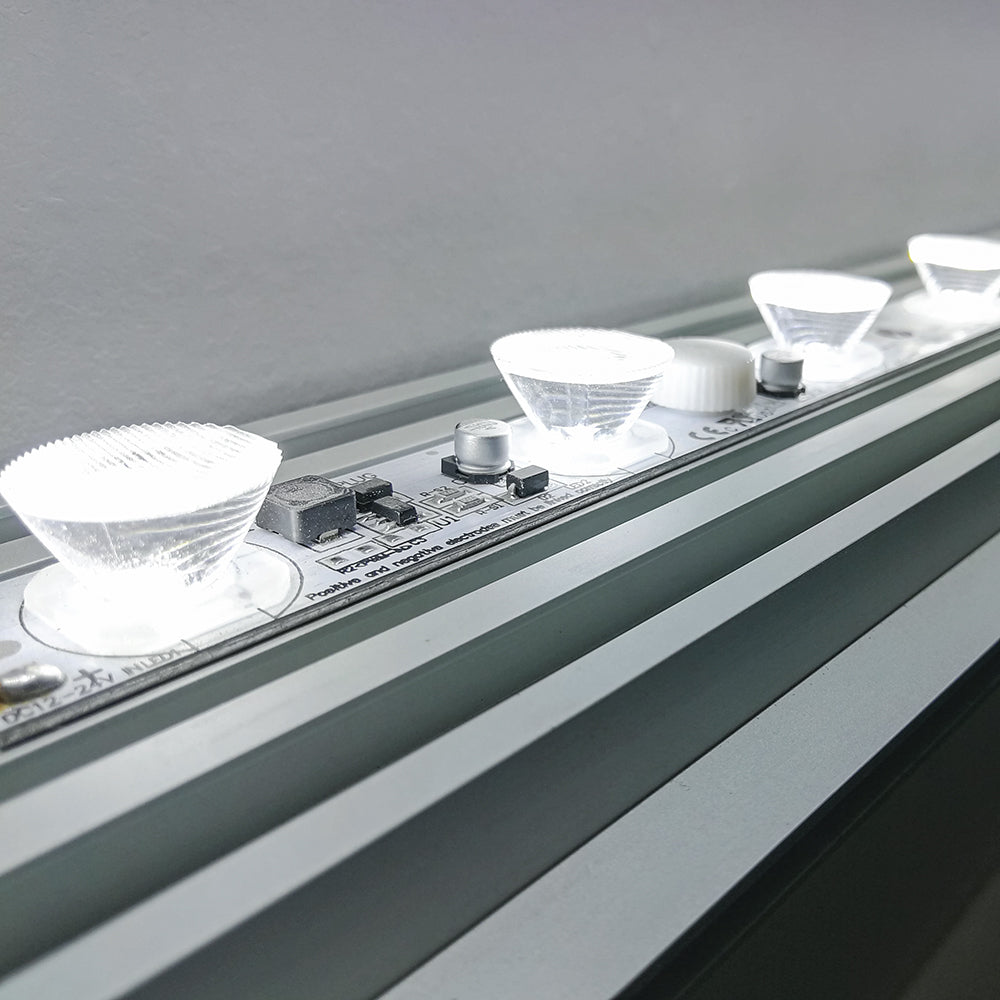

- LED modules mounted on the side of the profiles
- 100 mm frame depth silver anodized
- Ballast(s) integrated in the light box
- 2 m white cable
- EU plug, standard bottom right, others
Please specify positioning preferences when ordering. - Optional digital textile printing in photographic quality and white blockout textile
- Environmentally friendly sublimation printing with water-based inks, fast
and easily replaceable - Including wall mounts
- Quick and easy installation
- Cheaper transport by shipping dismantled elements
- 6500 Kelvin (cold white)
- Optionally with dimming (remote control)
The frame
The illuminated textile tension frame is mounted directly on the wall or can be installed in a niche provided for this purpose. This way, it visually highlights individual areas or entire walls.
The system consists of a 100 mm deep black coated aluminum frame, optionally covered with an individual, high-resolution textile print. The textile tension frame is quickly and easily assembled without any special tools, and the textile print is then simply clamped in place thanks to the piping system.
For frames over 2.20 m, an additional stabilizer is included.
Textile printing (optional)
The textile printing for the illuminated textile tension frame is carried out on request according to your individual color or motif template.
Simply swap out the digitally printed textiles to adapt them to a new advertising campaign, season or new room design. We manufacture the light box in your desired format, whether as a single order or large-scale project.
The blockout textile prevents the light from escaping backwards out of the frame.
The lighting technology
The pre-assembled LEDs are low-maintenance and cost-saving. The standard light temperature of the light frames of ~ 6,500 Kelvin creates a neutral light that optimally reproduces the colors of the textile print. The EU plug is on the bottom right as standard (number 5)! Please specify other positioning requests with the number when ordering.
|
Size |
watt |
|
120 x 80 cm |
63.8 |
|
100 x 100 cm |
45.6 |
|
100 x 150 cm |
82.1 |
|
100 x 200 cm |
109.4 |
|
150 x 200 cm |
109.4 |
|
200 x 200 cm |
109.4 |
|
300 x 200 cm |
164.2 |
Delivery
To optimize logistics, our illuminated textile tension frames are usually shipped disassembled and are also divisible, so they also fit into small vehicles.
Screws and dowels are not included in delivery.
-
Textilspannrahmen beleuchtet mit Kanteneinstrahlung (Rahmenfarbe Rahmenfarbe: Silber eloxiert, Aufbautiefe: 100 mm, Eckverbinder und (ggf. Plattenverbinder bei Großformaten), Stabilisierer/Zarge ab 200 cm Lauflänge und Spannschlossverbinder, Wandmontagewinkel, LEDs, Lichtfarbe: Standard ca. 6500 Kelvin (+/- 500 Kelvin), LED Technik und Vorschaltgerät vormontiert, EU Schuko-Stecker 3-polig (Kabellänge nach Ausgang ca. 220 cm), optional 1 Textildruck & Blockouttextil als Rückwand
Unsere Aluminiumrahmen
- High-quality anodized or powder-coated aluminum profile
- Different colors, some with special effects possible
- Elegant frameless design
- Easy to clean
- Certified manufacturing in Europe
- 100% recyclable
- Durable, robust and versatile
- Beschichtung in individueller RAL Farbe möglich
Unsere Textildrucke
- Brillanter, hochauflösender Druck auf wasserbasierenden Farben
- Einfach werkzeuglos austauschen
- Waschbar und trocknergeeignet gemäß Pflegeanleitung
- High-quality textile prints with Öko-TEX®100 certificate
- Luftfeuchtigkeit und Temperaturen zwischen 10°bis 60°C sind möglich
- Umweltfreundliche Herstellung und in Deutschland zertifizierte Materialien
- Schwer entflammbar- zertifiziert
