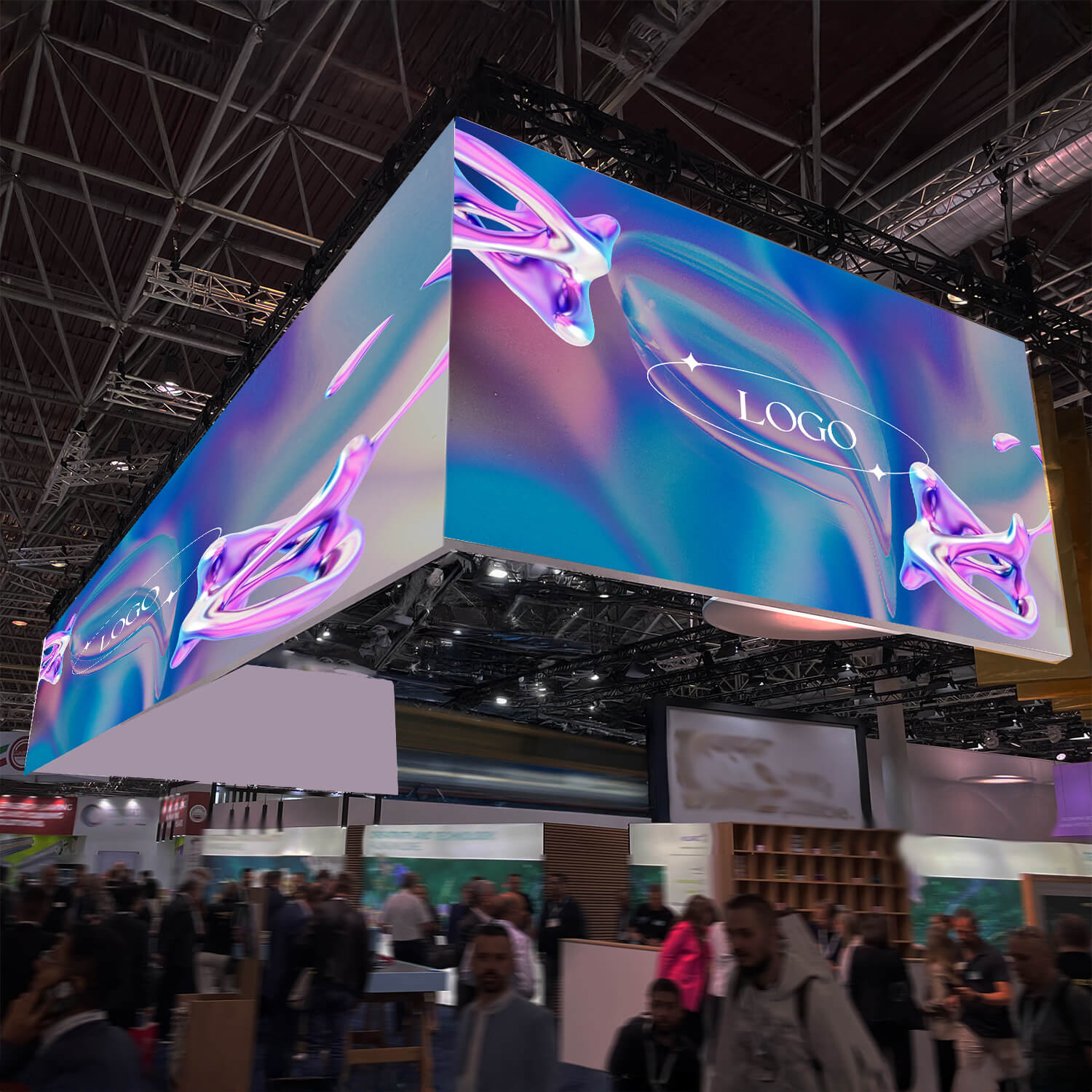

LED trade fair ceiling hanger, U-shape - illuminated

LED trade fair ceiling hanger "U-shape" - illuminated - Eye-catching presentation with brilliant illumination

Perfect illumination meets sophisticated design – the U-shaped LED ceiling banner is specially designed for trade fairs, exhibitions, and events where your brand needs to be showcased from three sides. With its six generously sized advertising surfaces, it offers an attractive presentation area that conveys your message clearly and effectively. The integrated, pre-mounted LED technology ensures even edge illumination, making your designs shine with a bright, daylight-like radiance. A diffusion layer incorporated into the fabric ensures optimal light distribution and eliminates unwanted hotspots. The ceiling banner is optionally dimmable, allowing for flexible adjustment to varying lighting conditions in exhibition halls. For added safety, the ceiling banner is B1-certified (flame-retardant according to DIN 4102), thus meeting the stringent fire protection requirements for trade fairs and events. Thanks to the innovative keder system, the graphics can be changed quickly and without tools, allowing you to react flexibly to changing campaigns or events at any time. The sturdy 100 mm aluminum profile ensures a particularly robust and durable construction that easily withstands the demands of frequent trade fair use.

Application areas of the LED ceiling pendant “U-shape”

The U-shaped ceiling hanger is the ideal solution for anyone who wants to be visible from three sides:

• Central eye-catcher above exhibition stands with visitor flow on both sides
• Orientation point in large exhibition halls and reception areas

• Effective brand presentation at exhibitions and events


Advantages of the U-shaped LED trade fair ceiling hanger

• Six generous advertising spaces for diverse branding opportunities.

• Robust and durable 100 mm aluminum profile construction

• Integrated LED technology ensures bright and brilliant illumination.

• Optional dimming function for individual light control

• Tool-free motif change thanks to innovative keder system

• Optional brilliant and high-resolution textile prints for a uniform appearance.
• Illumination thanks to diffusion coating

• B1 certified for the highest fire protection requirements

• Standard sizes, custom sizes available on request


Technical details

• Frame depth: 100 mm Aluminum profile (silver anodized) for high stability and elegant appearance

• LED technology: Pre-assembled high-power LED modules with edge illumination
  Light color: approx. 6500 K (+/- 500 K), luminous flux/amount: approx. 4680 lumens per m²

• Optionally dimmable via DALI, Casambi, KNX or app control

• Diffusion layer: Integrated into the textile for homogeneous light distribution without hotspots.

• Fire protection: Textiles B1-certified (flame-retardant according to DIN 4102)

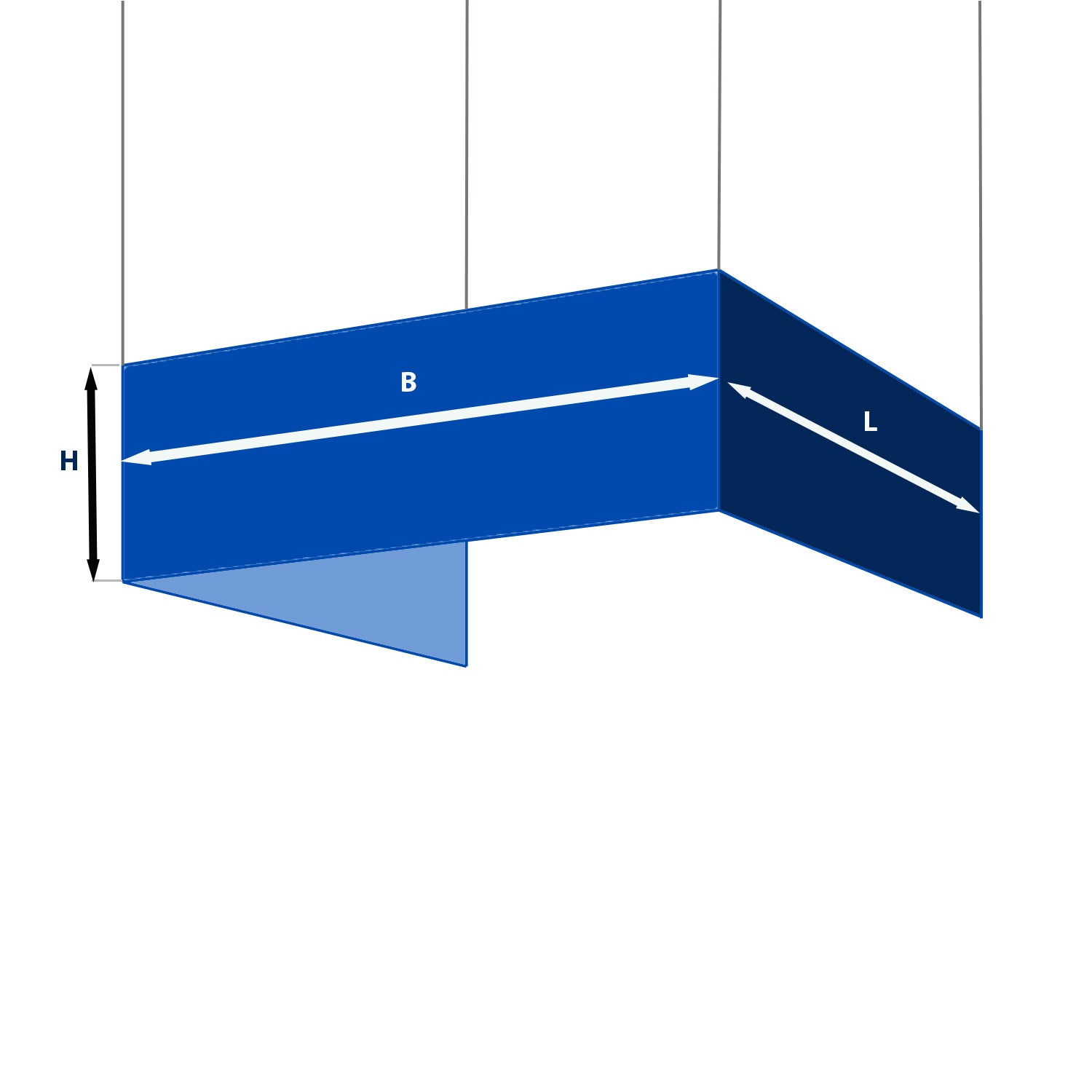

• Standardformate (B x H x T): 300 x 100 x 300 cm (ca. 42100lm), 400 x 100 x 400 cm (ca. 56150lm), 500 x 150 x 500 cm (ca. 72550lm), 600 x 100 x 400 cm (ca. 66300lm), 600 x 100 x 600 cm (ca. 86600lm), 800 x 150 x 500 cm (ca. 86600lm), 800 x 150 x 800 cm (ca. 114700 lm)

• Optional: Suspension systems for ceiling mounting (after technical consultation)

Scope of delivery & options/ Accessories

• LED trade fair ceiling hanger “U-shape”, frame profile silver anodized, frame depth 100 mm, 2 special connecting corners, incl. turnbuckle connector, profile connector
  Stabilizer/frame for barrel lengths of 220 cm and above.

• Pre-assembled LED technology with ballast, EU plug

• Shipping: Disassembled, from 600 x 150 x 800 cm space-saving on a pallet (320 × 40 cm)

• Optional 6 high-resolution textile prints, pre-assembled for tool-free installation


delivery time

Standard delivery time: approx. 20–25 working days. Express production available upon request.

Maximum visibility for your stand: Get the U-shaped LED ceiling hanger and impress visitors from every angle!
Choose a standard format or request your individual desired format and let us advise you!
