LED light wall with edge illumination in a 100 mm profile

LED light wall with edge illumination in a 100 mm profile – compact lighting solution for offices, medical practices, retail and promotional events

This LED light wall with side-mounted edge illumination in a 100 mm aluminum profile combines a compact design with efficient and economical lighting technology. It is ideally suited for use in offices, medical practices, retail spaces, or interiors, and impresses with its brilliant light quality, flexible design options, and easy installation.

The edge illumination used is particularly suitable for colorful, structured or non-homogeneous image motifs where a slight distribution of brightness across the surface is not visually noticeable – and can even contribute to the image effect.

Technical characteristics:

• Frame depth: 100 mm – ideal for efficient edge illumination

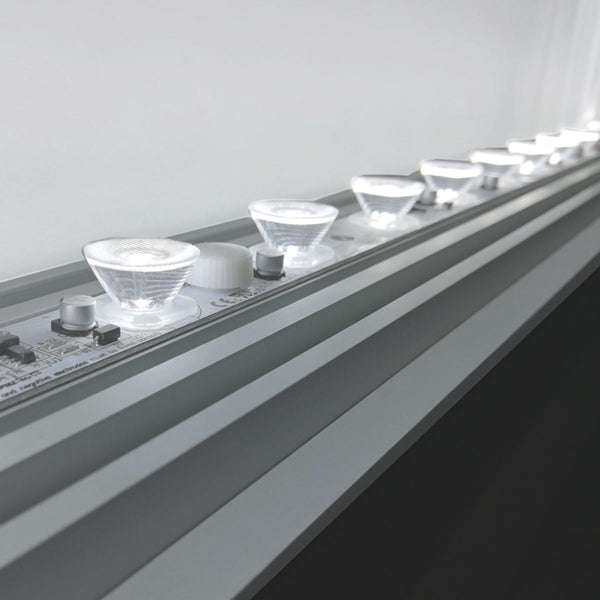

• LED modules are mounted opposite each other on the profiles along the long sides.

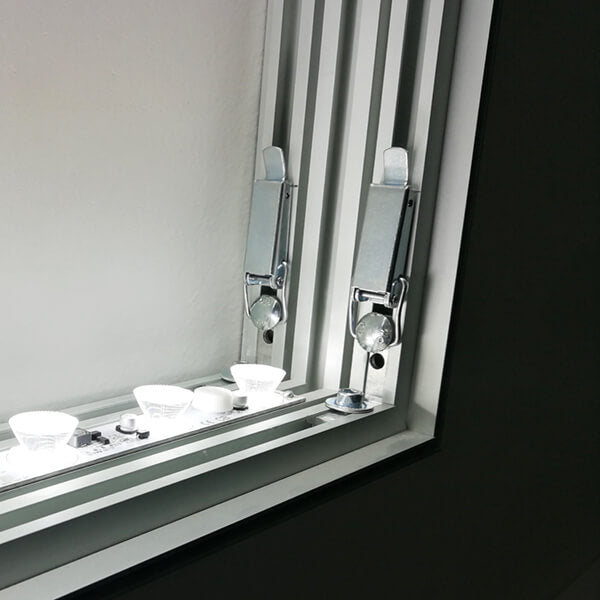

• Assembly aid for quick setup
• Ballasts integrated into the frame
• Light color: 6,500 Kelvin for neutral, high-contrast display
• Luminous intensity: approx. 4680 lumens/meter (longitudinal side)
• With dimming (including remote control or via app)
• 2 m white connection cable with EU plug

Profile colors:

• Standard finishes include silver anodized or black coated (matte), optional white (matte or optionally with fine texture) available at an additional cost.
• Other RAL colors and textures are available upon request for an additional charge – please specify your desired color and surface texture when inquiring or ordering (e.g., smooth matte, satin gloss, or fine texture matte). Further information can be found on our [website/platform - context needed]. Color guide.

Advantages of the 100 mm installation depth:

The 100 mm deep aluminum frame construction provides the ideal conditions for efficient edge illumination, as the LED modules are mounted along the side profiles on the long sides at the top and bottom, saving space.
This well-thought-out design not only allows for a flat and elegant appearance, but also easy transport when disassembled and flexible integration into a wide variety of room concepts – from individual installations to large-area wall solutions.
Suitable for formats with a height of up to approx. 3.0 meters and lengths up to 20 meters.

Textile printing & printing technology:

• Impressive visual impact through custom-made photorealistic textile printing
• Special textile with integrated diffusion layer for uniform light distribution
• The white blockout backing prevents light from escaping from the rear.
• Tool-free motif change thanks to a practical keder system
• Environmentally friendly sublimation printing with water-based inks


Delivery & assembly:

• Delivered disassembled to reduce shipping costs and transport volume
• Divisible frame construction – also fits in smaller vehicles or elevators
• The white blockout backing prevents light from escaping from the rear.
• Wall brackets are included (they are screwed to the wall through the blockout fabric).
• Screws and dowels not included – please select on site.

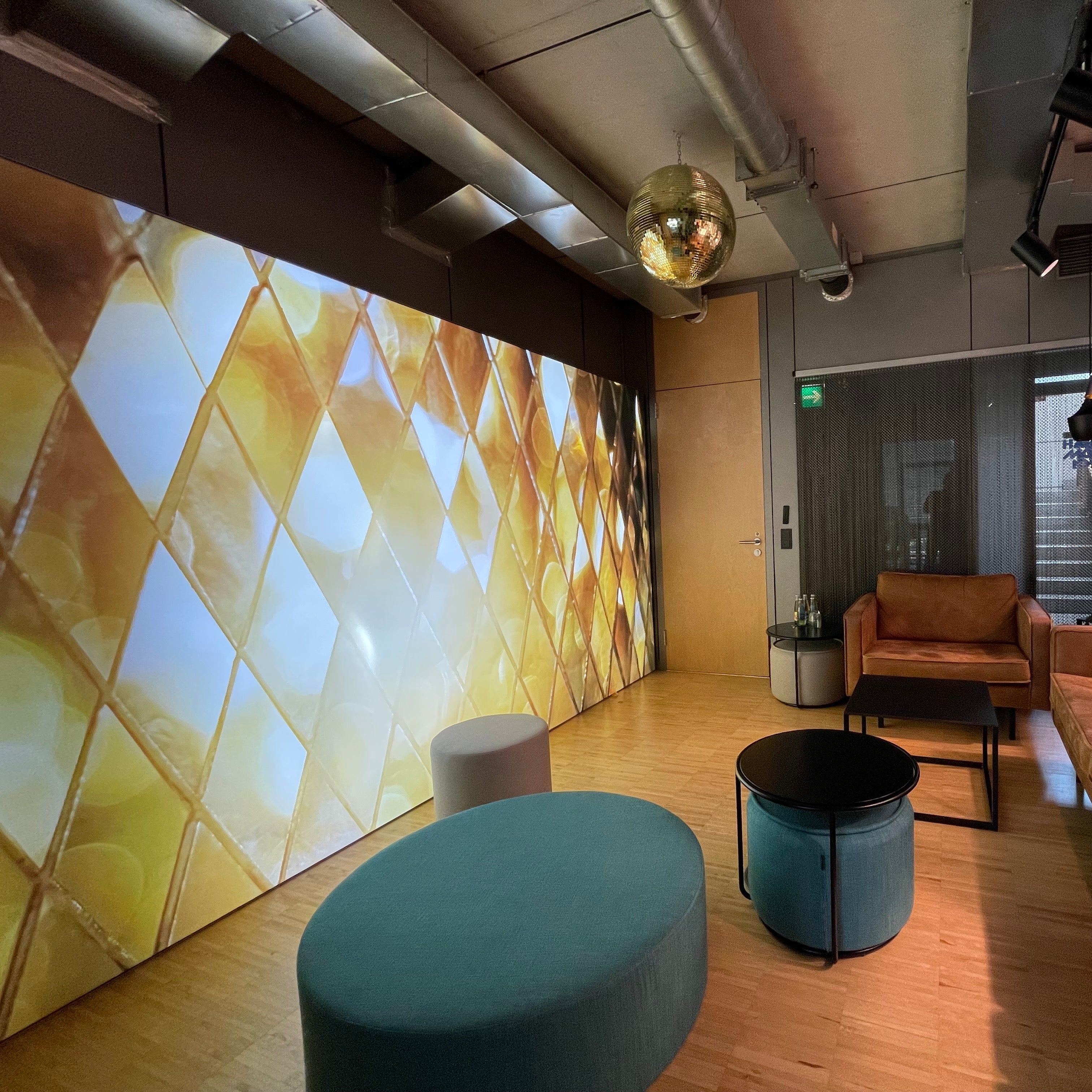

Typical areas of application:

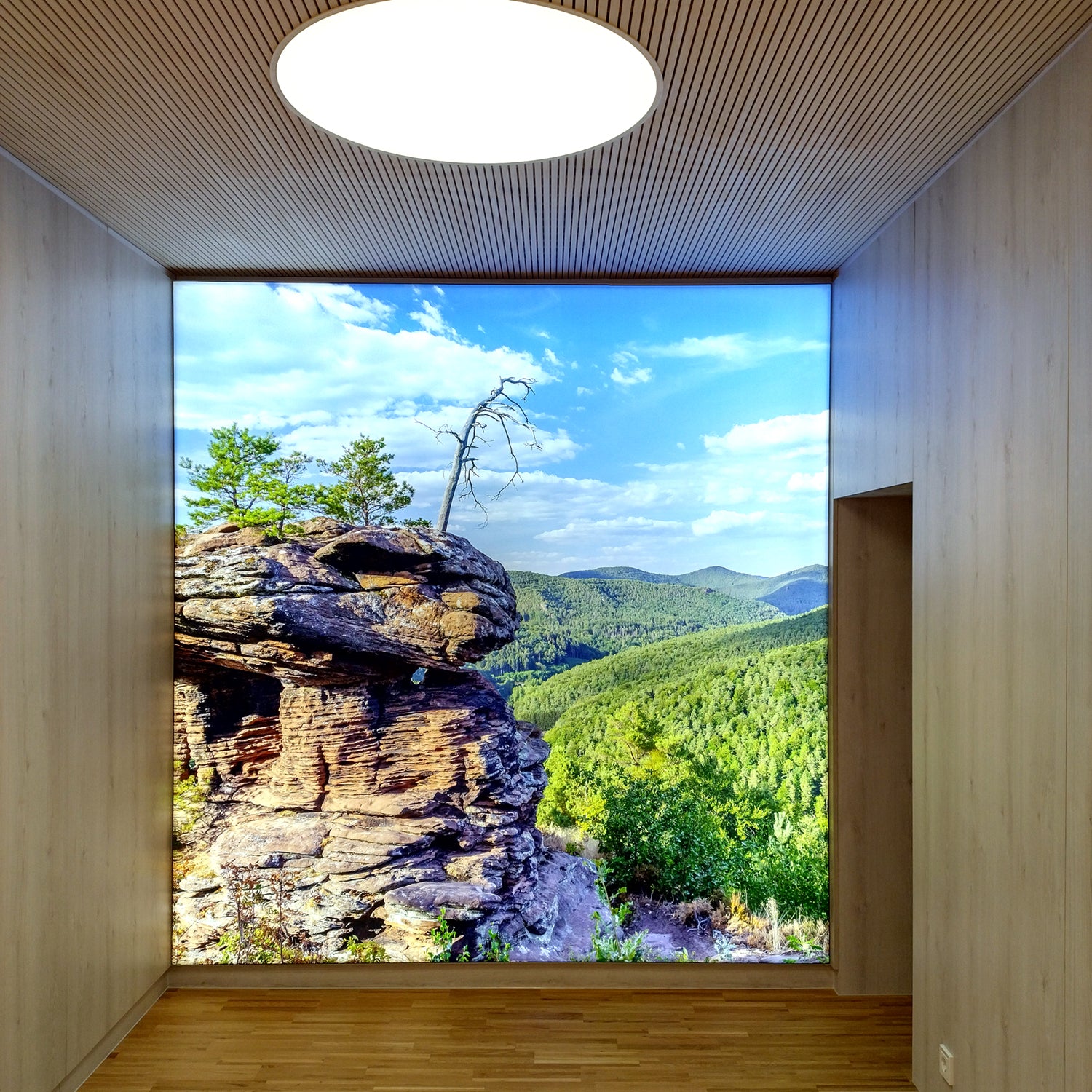

• Offices & Reception Areas: Light accents with a calm, even surface effect
• Medical Practices & Healthcare: Waiting areas and treatment rooms with interchangeable motifs, optionally with surface finishing for medical areas
• Retail & Sales Areas: Interchangeable promotional motifs that change seasonally
• Promotion & Events: Mobile, transport-friendly light walls for temporary brand presentations

Your advantages:

• Cost-efficient thanks to 100 mm installation depth and proven edge illumination

• Unique lighting effect and low energy consumption
• Interchangeable textile motifs – economical, sustainable and versatile
• Flexible design thanks to variable formats and individual profile colors
• Technically sophisticated system – low maintenance, easy to install and durable.

Important!

Please specify the number of the desired cable output when placing your order.

Conclusion:

This edge-lit LED light wall is the ideal solution for modern interior design with light – especially where aesthetics, functionality, and cost-effectiveness are paramount. Its technology makes it perfectly suited for colorful, textured, or non-homogeneous images where a slight variation in brightness is either aesthetically unproblematic or intentionally contributes to the overall visual effect.

💡 Now Request a quote or configure directly – individually for your project.
