Wall mounting brackets for 27 / 150 mm textile tension frames

Wall mounting bracket 27 / 150 mm – secure wall mounting for textile tension frames

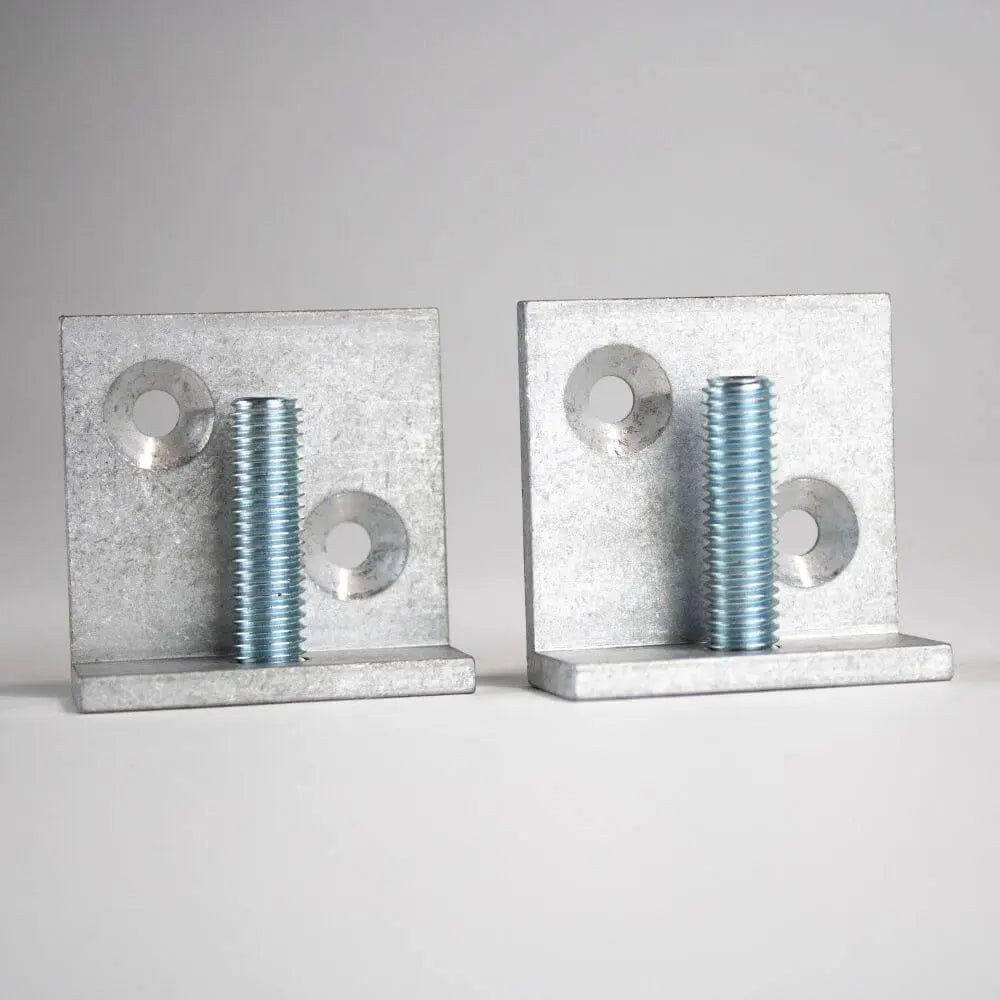

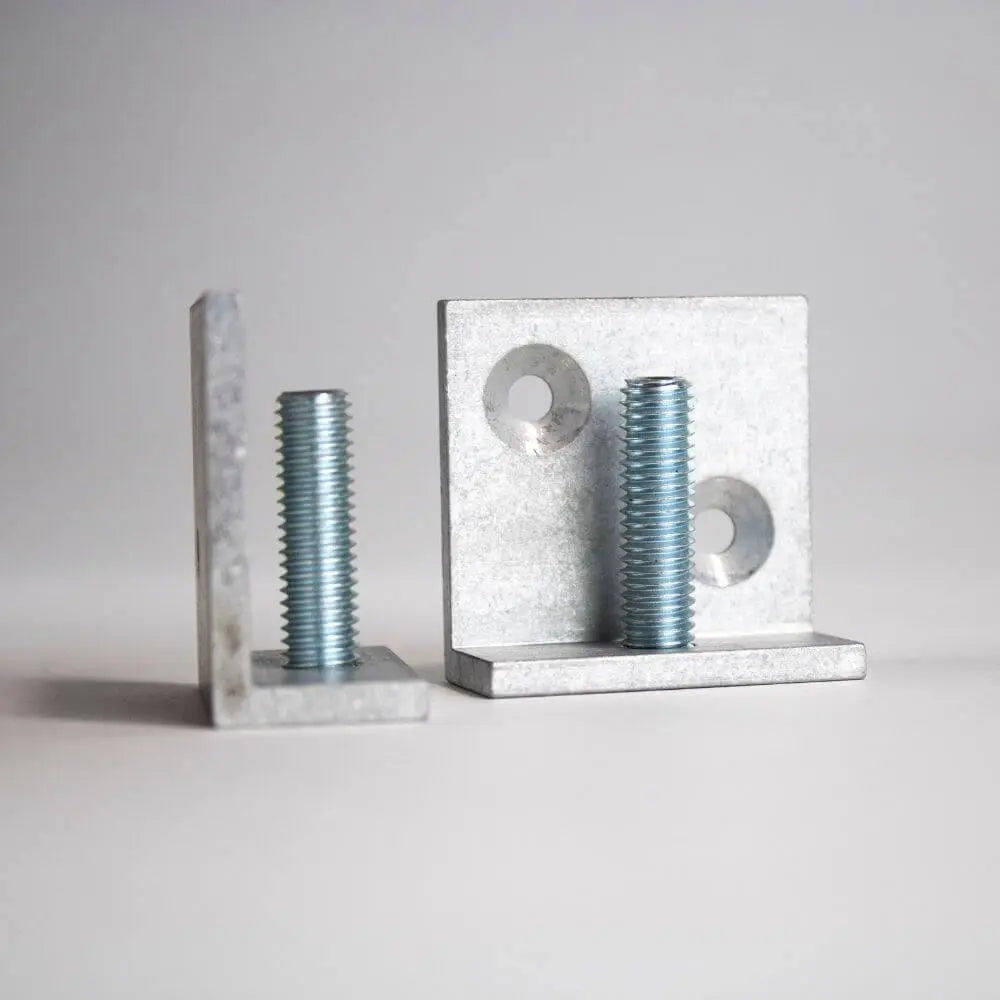

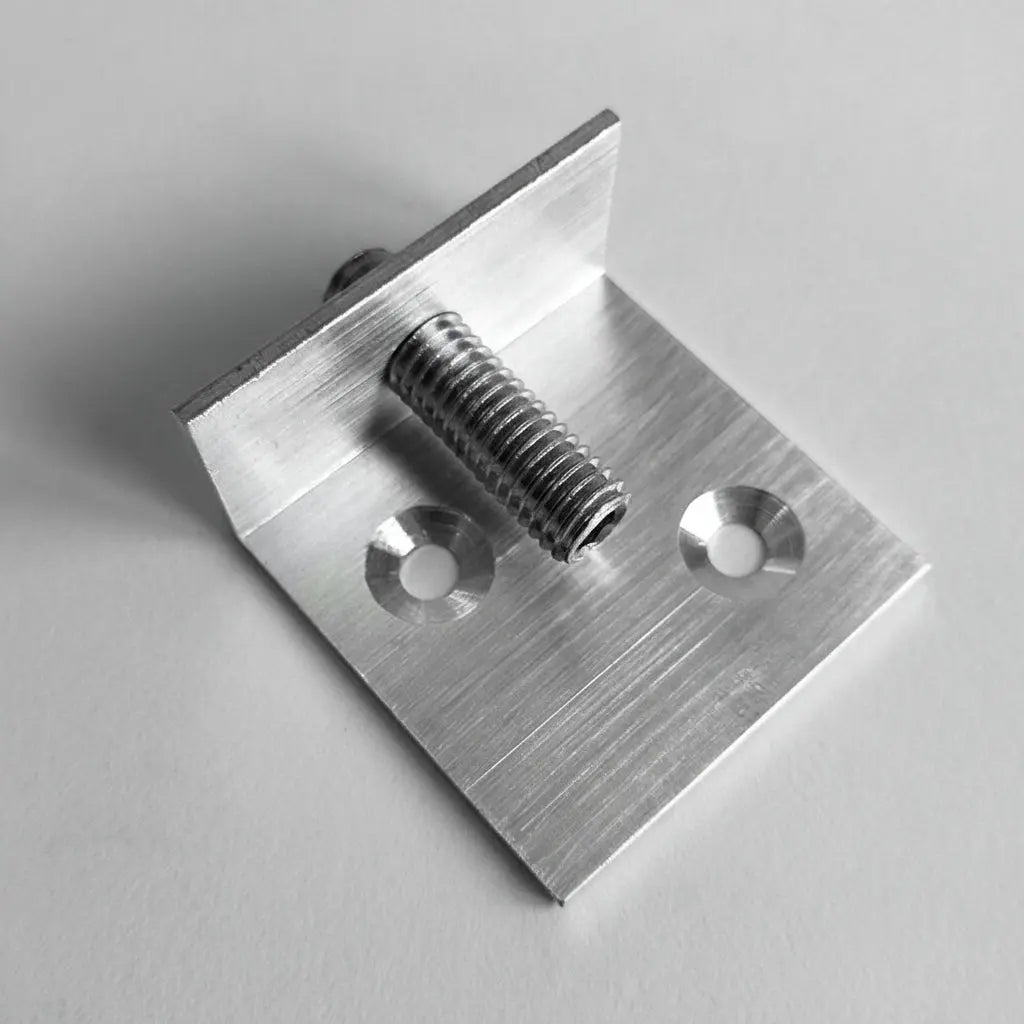

The 27/150 mm wall mounting bracket was specially developed for the secure and precise wall mounting of textile tension frames, LED frames, and acoustic frames. It enables stable attachment directly to the wall – without any additional wall clearance.

Made of aluminum, the mounting bracket impresses with its light weight and ease of use. After installation, the frame can be fine-tuned, allowing for easy correction of minor deviations.

Product advantages at a glance

• Suitable for 27 mm and 150 mm profiles

• Suitable for textile tension frames, LED frames and acoustic frames

• Direct wall mounting without wall clearance

• High-quality aluminum construction

• Fine adjustment possible after assembly

• Easy and quick assembly

• Correction of minor dimensional deviations is possible


General technical data of the wall mounting bracket

• Design: Aluminum wall mounting bracket

• Suitable for: Wall mounting of textile tension frames, LED frames and acoustic frames

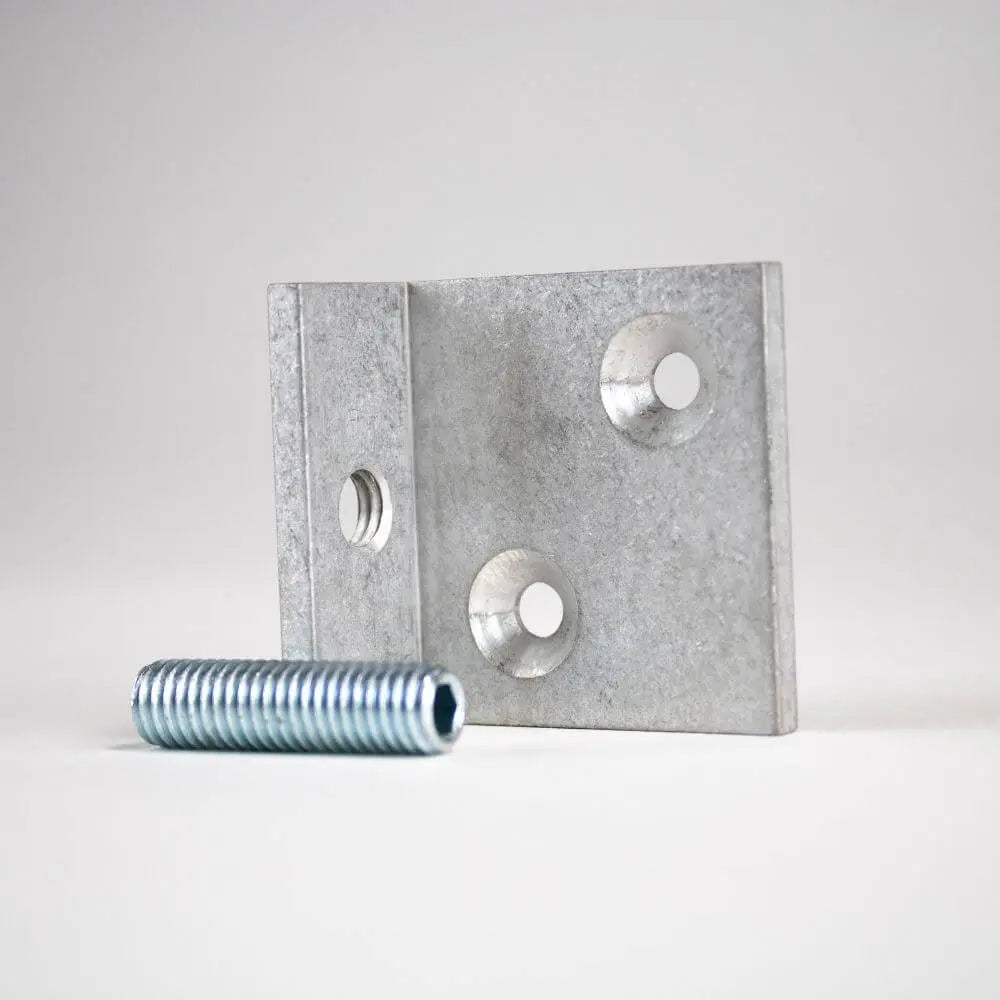

• Connection: Grub screw M8 × 30 mm
• Dimensions: 40 × 20 × 3.5 mm
• Suitable for: 27 mm / 150 mm profile without wall clearance
• Packaging unit: 2 pieces
• Weight per set: 0.06 kg

Assembly of the wall mounting bracket

The wall mounting bracket is attached directly to the wall and serves as a stable support for the frame. Once hung, the frame's position can be fine-tuned using the set screw.

This allows minor dimensional deviations to be compensated for subsequently and ensures a clean alignment of the frame.

areas of application

Textile tension frame
Ideal for direct and precise wall mounting of textile tension frames without visible wall clearance.

LED frame
Suitable for backlit frame systems with clean and stable wall mounting.

Acoustic frame
Perfect for the safe installation of acoustic solutions indoors.

Shopfitting & Retail
Ideal for high-quality presentation surfaces with precise frame adjustment.

Interior design & building construction
Suitable for modern wall installations with a professional look.

Conclusion

The 27/150 mm wall mounting bracket is the ideal solution for the secure and precise wall mounting of textile tension frames. Its aluminum construction, easy fine adjustment, and direct mounting without a gap to the wall create a clean and professional fastening solution.
